Dripex F801A - Assembly Instruction

Assembly Instruction
Step 1
Step 2

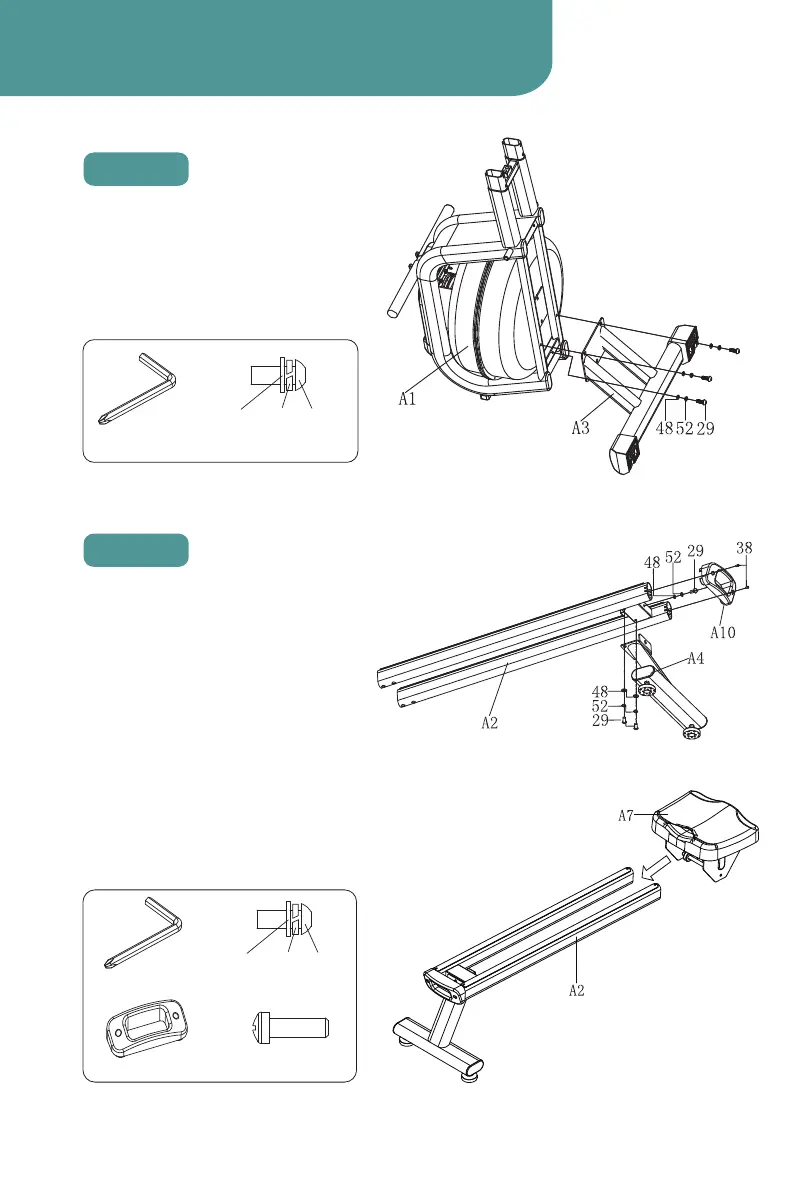

1. Use the Allen Wrench (T2) supplied,
Hex Bolt (29), Spring Washer (52) and
Flat Washer (48), connect the Rear
Stablizer (A4) to the Rail (A2).
2. Use the Allen Wrench(T2) supplied,
and Pan Head Machine Screw (38) to
fasten the Rear End Cap (A10) onto
the Rail (A2).
3. Carefully slide the Seat (A7) into the
Rail (A2)，as shown.
A10 38
48 52
29
T2
48 52 29
T2
Use the Allen Wrench (T2) supplied,
Hex Bolt (29), Spring Washer (52), Flat
Washer (48), fasten the Front Stablizer
to the Main Frame (A1)
