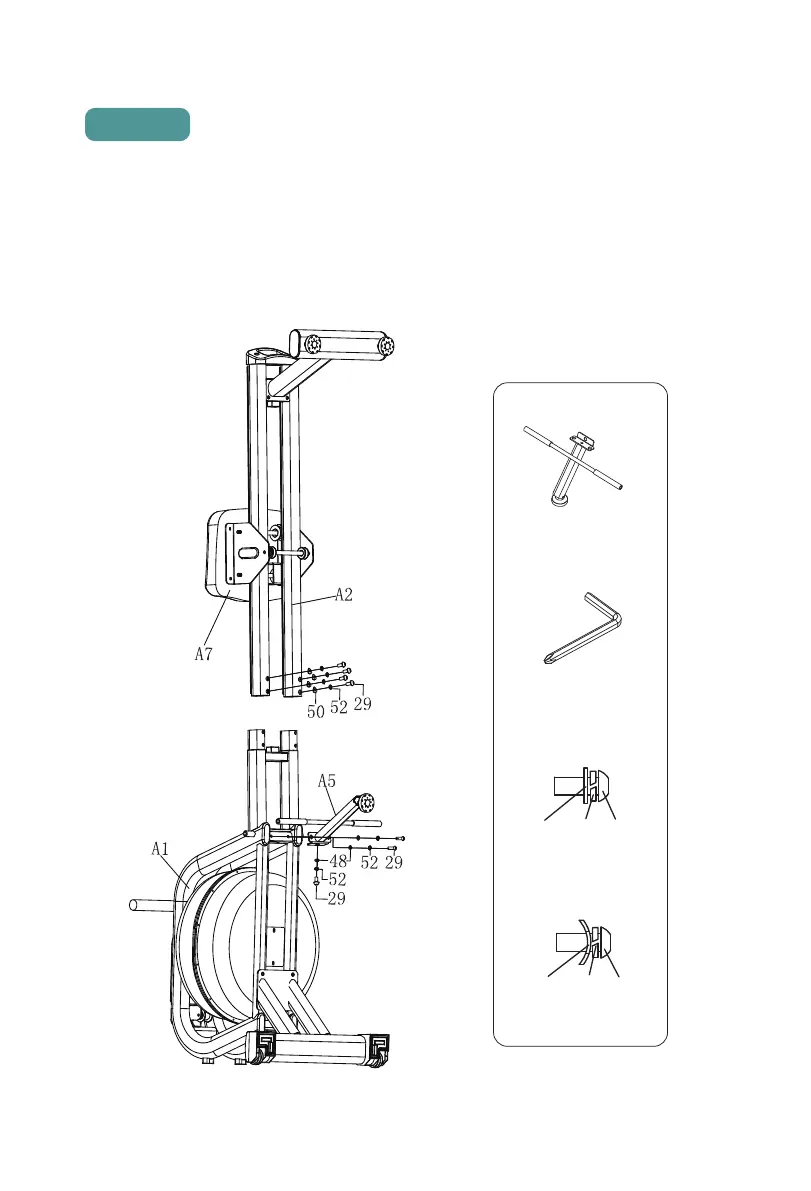

Step 3
1. Attach the Rail(A2) to the Main Frame (A1), and adjust them till the tapping holes aligned.
2. Connect the Rail (A2) to the Main Frame (A1) and tighten with the Allen wrench (T2), Hex
Bolt (29) Spring Washer (52) and Wave Washer (50) supplied.
3. Use the Allen Wrench(T2), Hex Bolt (29), Spring Washer (52) and Flat Washer (48)
supplied, fasten the Positioning Axel (A5) on the Main Frame (A1) as shown.
A5
48 52 29
50 52 29
T2
