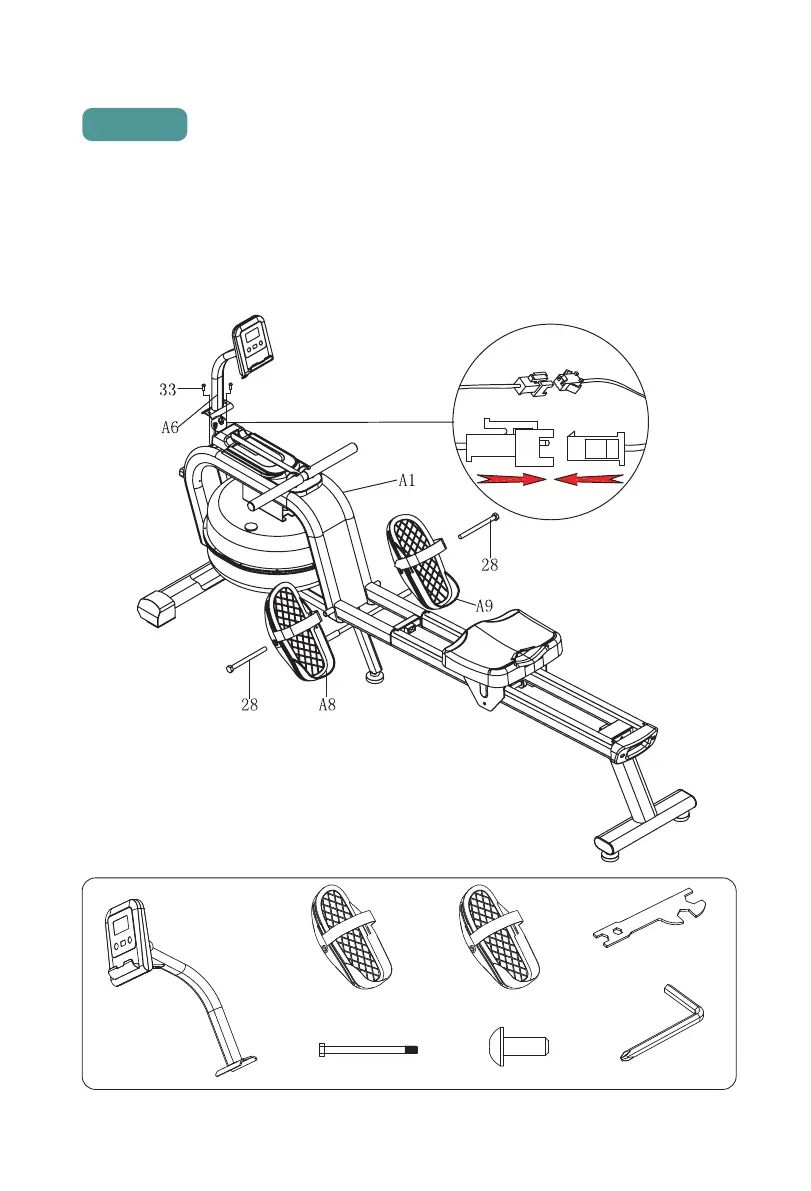

Step 4
1. Use the Multi-function Wrench (T1) and Hex Bolt (28) supplied to assemble the Left Pedal
(A8) as well as the Right Pedal (A9) and tight them properly.
2. Connect the Wire as shown and plug them into the hole nearby.
3. Use the Allen Wrench (T2) supplied and the Button Head Allen Bolt (33) to fasten The
Monitor Holder(A6) to the Main Frame (A1)
A6
A8 A9
28 33
T1
T2
