DriSteem DK-12 - Capacities and Connection Sizes

Capacities and connection sizes.

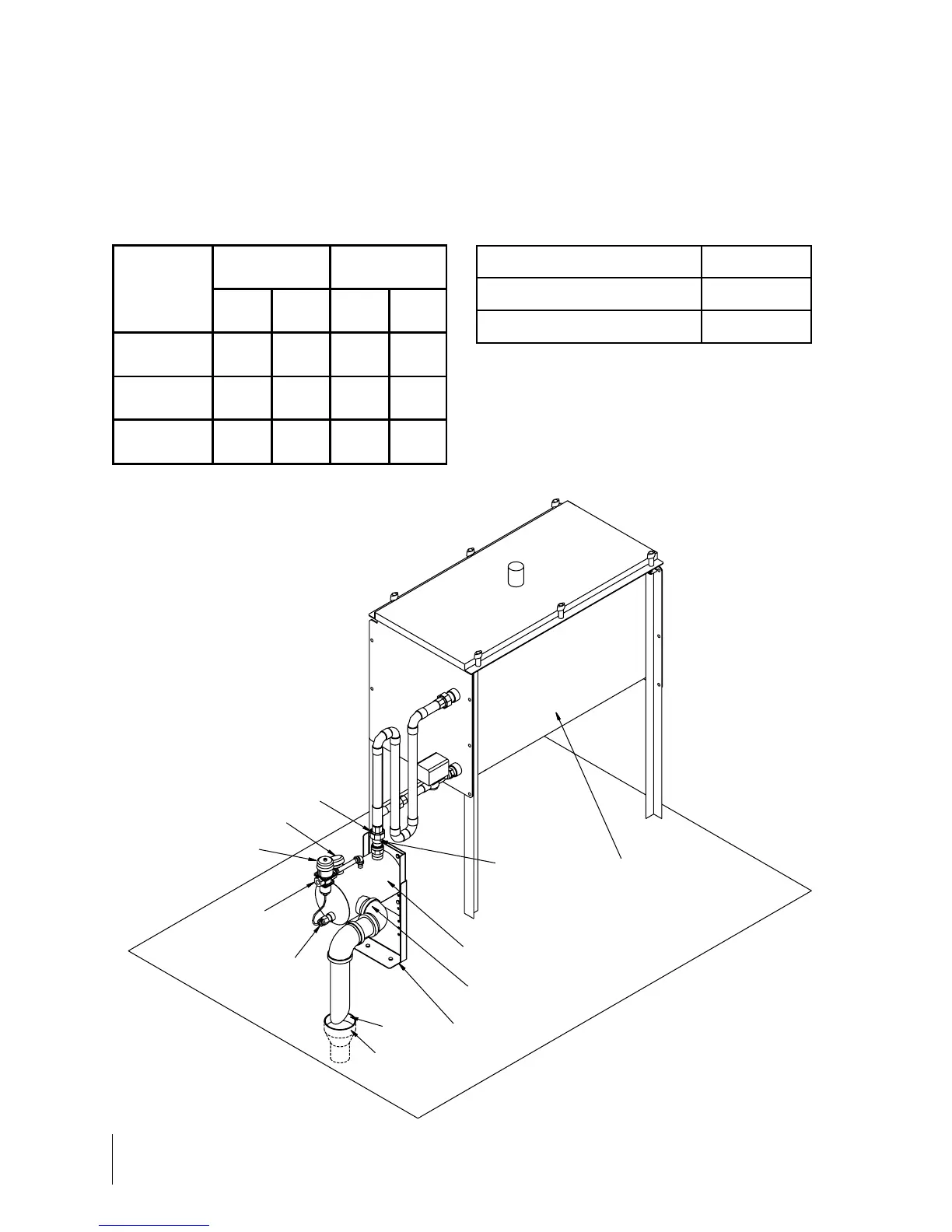

Product overview
Product overview:
Capacities, connections
DRANE-KOOLER capacities* DRANE-KOOLER connections
DRANE-KOOLER
stainless steel
mixing chamber
Adjustable
floor stand
Floor drain to
municipal system
Evaporative humidifier
Thermally-
activated valve Hot
water
enters
here
Cold water
enters here
Tempered water
discharged here
Temperature
sensor
Service union
1" (25 mm)
air gap
Vacuum breaker
Maximum flow
rate
Maximum
temperature
U.S.
gpm
L/m °F °C
Hot water
inflow
6 22.7 212 100
Cold water
inflow**
622.770 21
Tempered
water outflow
12 45.4 140 60
* This table applies only if one humidifier is connected to
one DRANE-KOOLER, with no more than 10' ( 3 m) of
vertical dimension between the humidifier and the
DRANE-KOOLER. If you wish to connect more than
one humidifier to a DRANE-KOOLER, or if you need more
than 10' (3 m) of vertical dimension, consult the factory.
** Cold water inflow pressure must be between
25 psi and 80 psi (172 kPa and 552 kPa).
OM-1117
noitcennoctelniretawtoHTPN)52ND("1
noitcennocteltuoretawderepmeTTPN)05ND("2
noitcennocylppusretawdloCTPN)01ND("8/3
2
