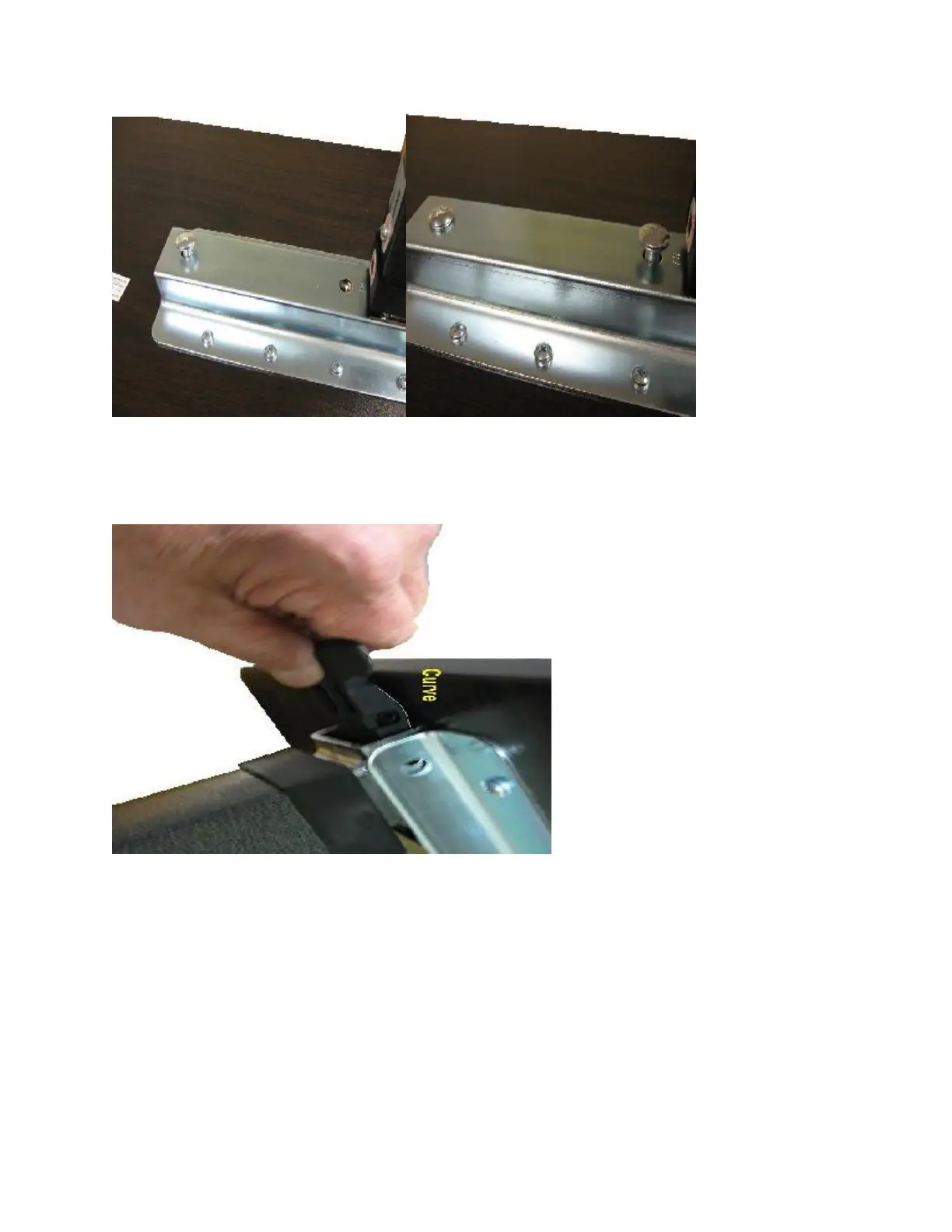

5. Insert the trip lever with the curved side facing towards the bottom of the table.
6. Make sure the trip lever sits on top of the trip rod in the column.
