assembly / operating
instructions
Screws
Frame
Armrest
Footrest
Screws
Frame
Armrest
Footrest
1. Remove the frame and seat assembly from the
carton. Stand chair upright on all four legs.
2. Remove the (4) Phillips screws holding the seat to
the bottom side of the frame, taking care to
support the seat so it does not fall when the screws
are removed.
3. Position the seat on the topside of the frame
making sure the seat faces forward to the footrest
support on the bottom front of the frame.
4. Reinsert the (4) Phillips screws through the bottom
of the frame into the bottom of the seat. Be sure
to use the long screws in the front of the seat and
the short screws in the rear of the seat. Take care to
start all (4) screws by hand before tightening them
with the screwdriver.
(Failure to start the screws by hand can cause
permanent damage to the seat assembly)
5. Remove the (2) Phillips screws holding the armrest
to the bottom side of the chair arm. Reposition
the armrest to the topside of the chair arm and
install the (2) screws by hand before tightening them
with the screwdriver. Repeat the armrest installation
on the other arm.
6. The Drive Hip-High Chair features an adjustable
height footrest. To install, position the footrest with
the rounded corners facing outward and the square
corners facing under the chair. Position the wooden
dowels on the footrest into the desired height
setting until the footrest is flush with the chair.
Install the (4) screws provided (2 per side) into the
holes provided in the back of the chair rail. Tighten
all 4 screws into the footrest.

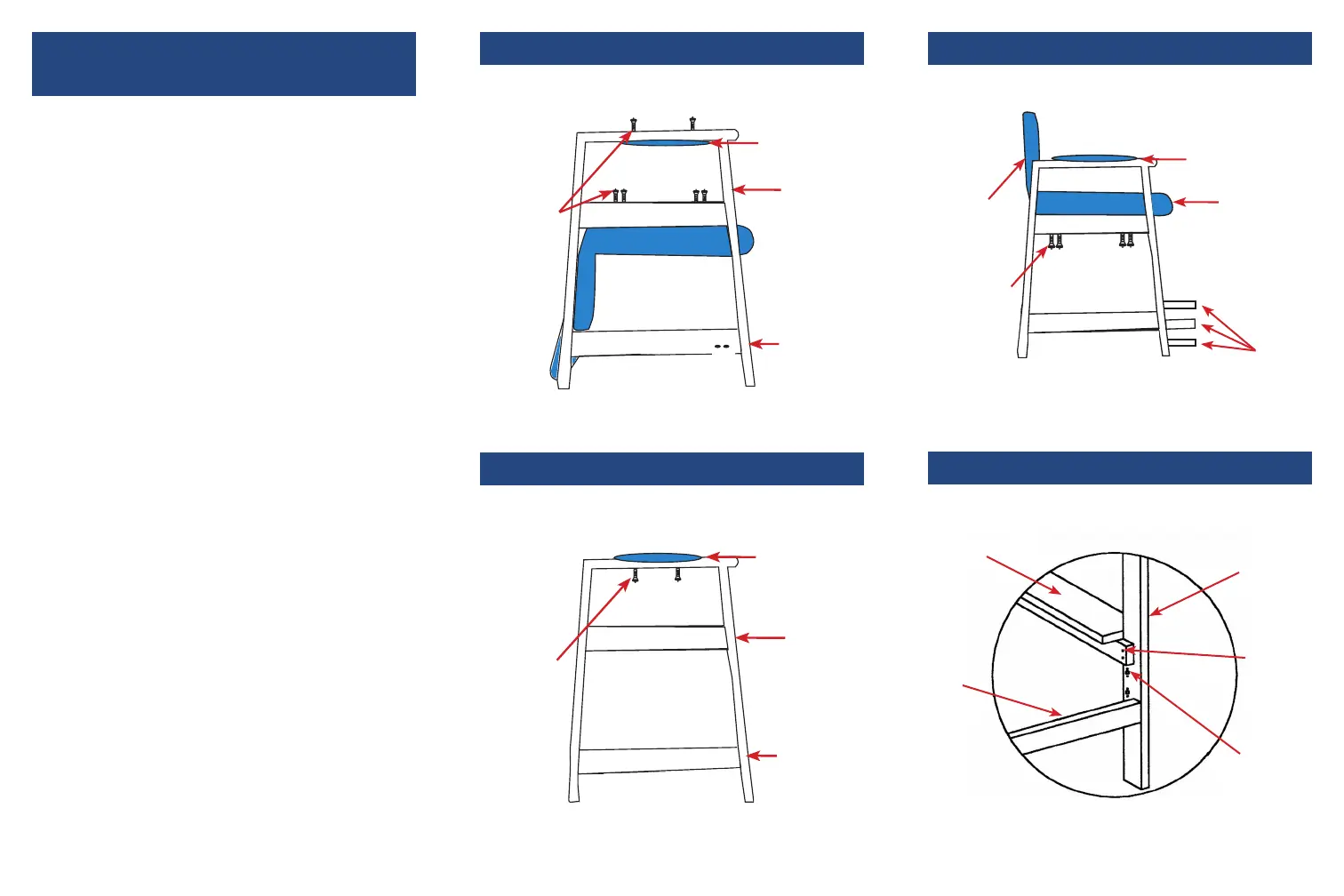

chair as shipped
armrest assembled
seat & footrest assembled
Seat
Frame
Armrest
Footrest
(Select Position)
Screws
footrest installation
Screws
Securing
Footrest
To Leg
Footrest
Predrilled Holes
For Adjustable
Footrest
Lower
Side Rail
Front Leg
