Drolet Blackcomb - Secondary Air Tubes and Baffle Installation

Blackcomb Installation and Operation Manual
50
Appendix 3: Installation of Secondary Air Tubes and Baffle

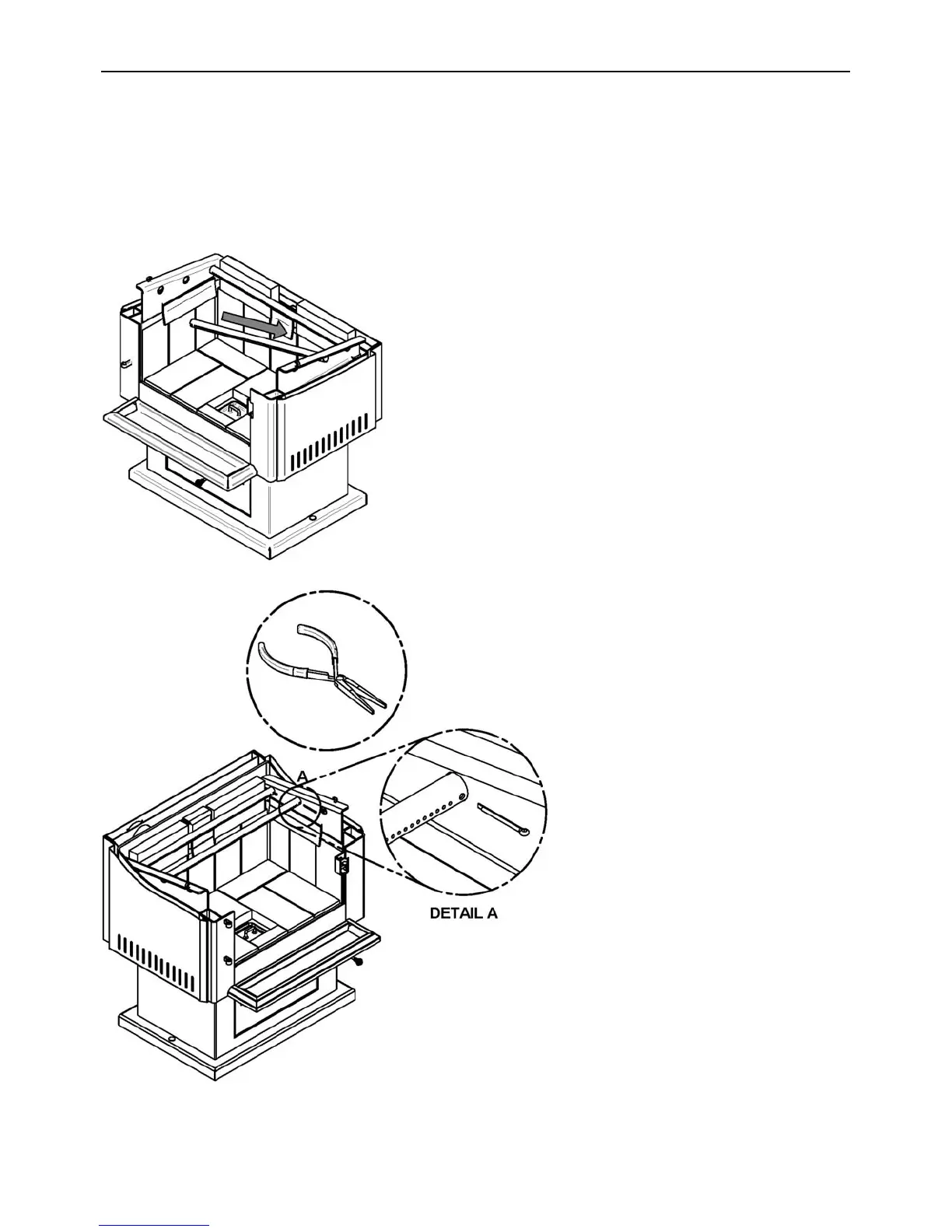

1- Starting with the rear tube,
lean and insert the right end of
the secondary air tube into the
rear right channel hole. Then
lift and insert the left end of
the tube into the rear left
channel.
2- Align the notch in the left end
of the tube with the key of the
left air channel hole. Insert the
lock pin into the hole provided
for this purpose to the right of
the tube (see Detail A) and
fold the ends of the pin to
secure it in place. Repeat step
1 and 2 for the other
secondary air tubes.
3- To remove the tubes use the
above steps in reverse order.
