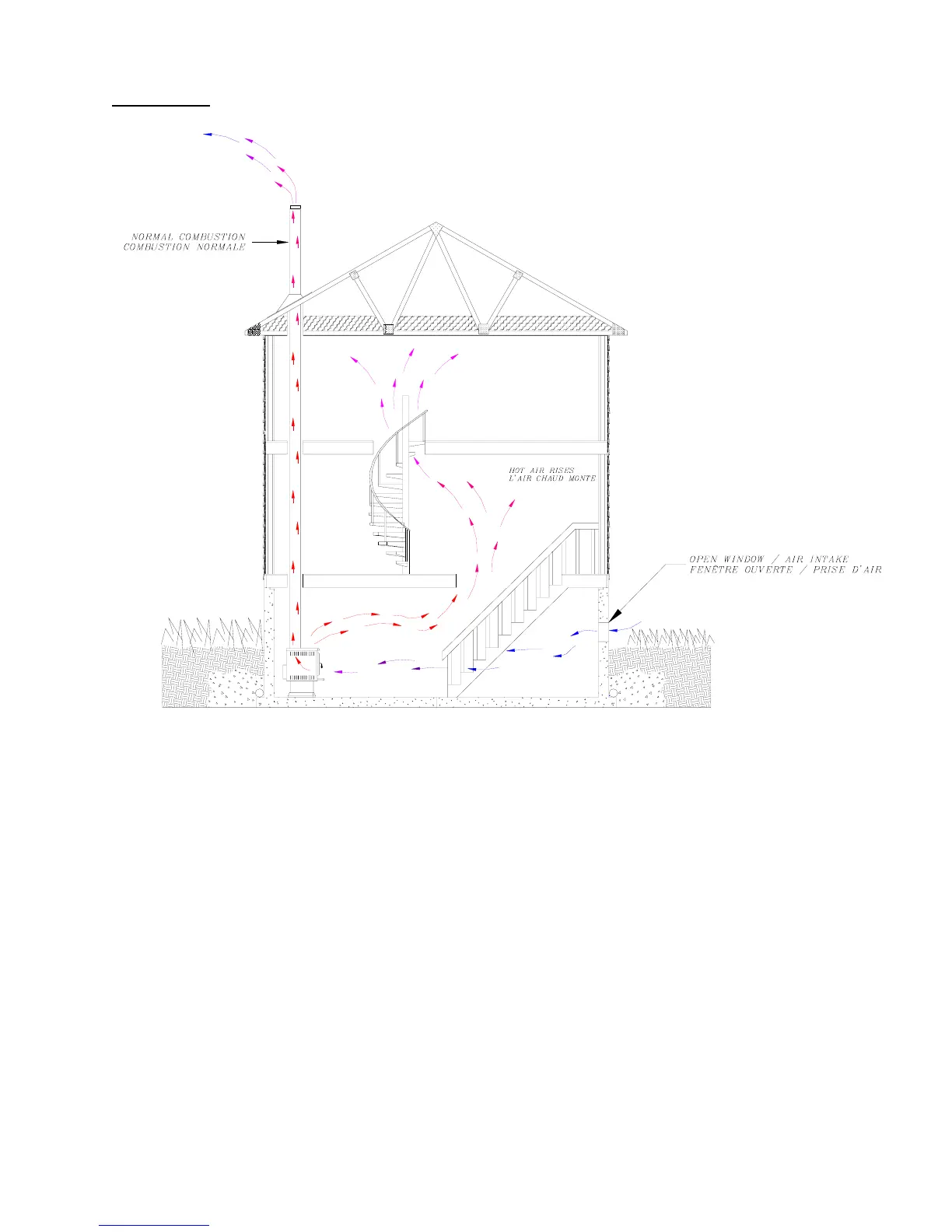

DRAWING #1
DRAWING #1 shows a stove functioning under normal and adequate conditions. Heat rises to the upper
floors and the room where the stove is located has an adequate supply of oxygen. The chimney draft is
sufficient and the combustion gases are evacuated normally through the exhaust system.
