ASSEMBLING THE STOVE
Note: This section applies to models Compak, CS1200, ML, Little
Sawman, RC and Nordic
only.

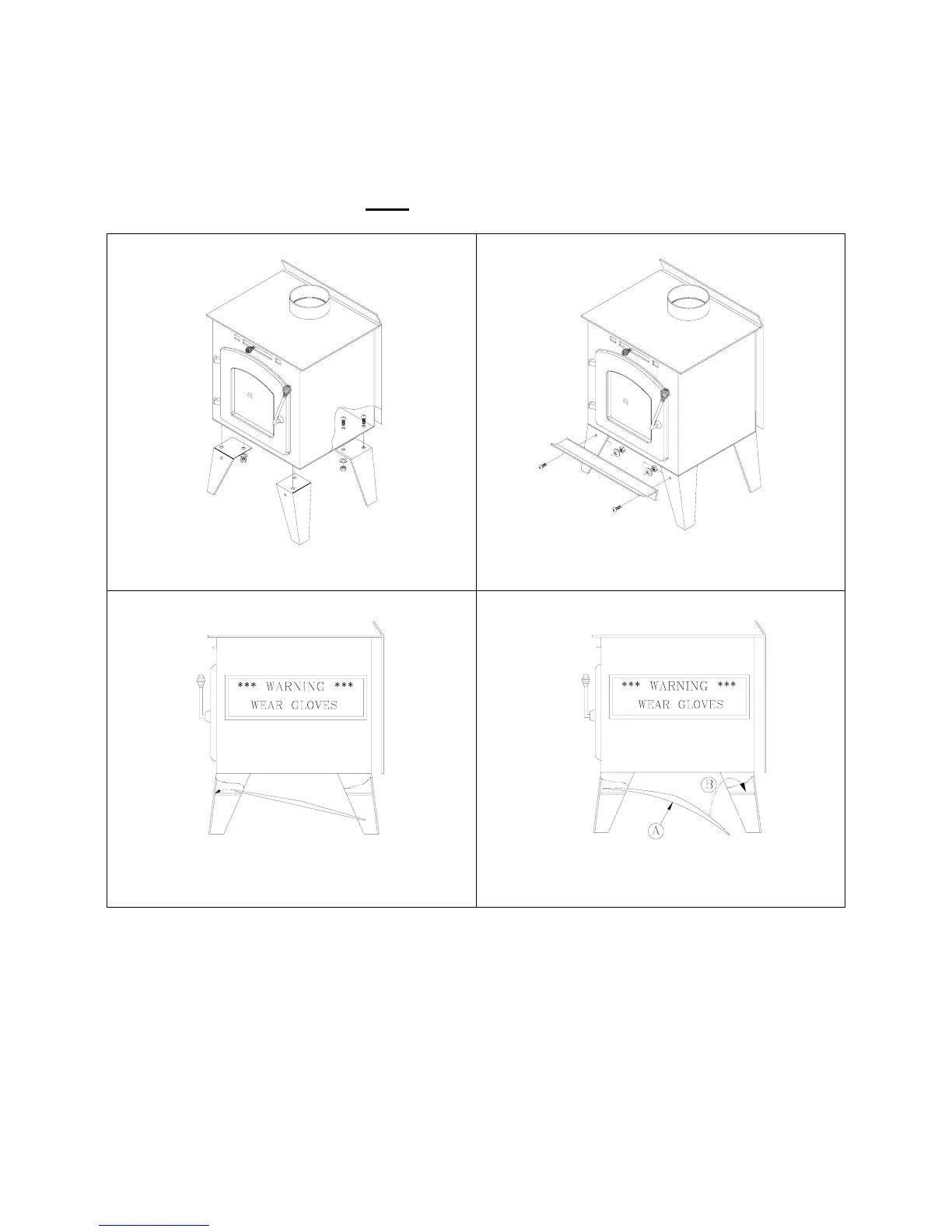

1- Mount the 4 legs using 2 screws per leg.
2- Mount the ash lip with two screws.
3- Install the heat shield between the front legs,
just above the leg supports.
4- Bend the heat shield slightly to make it fit
between the back legs.
4
