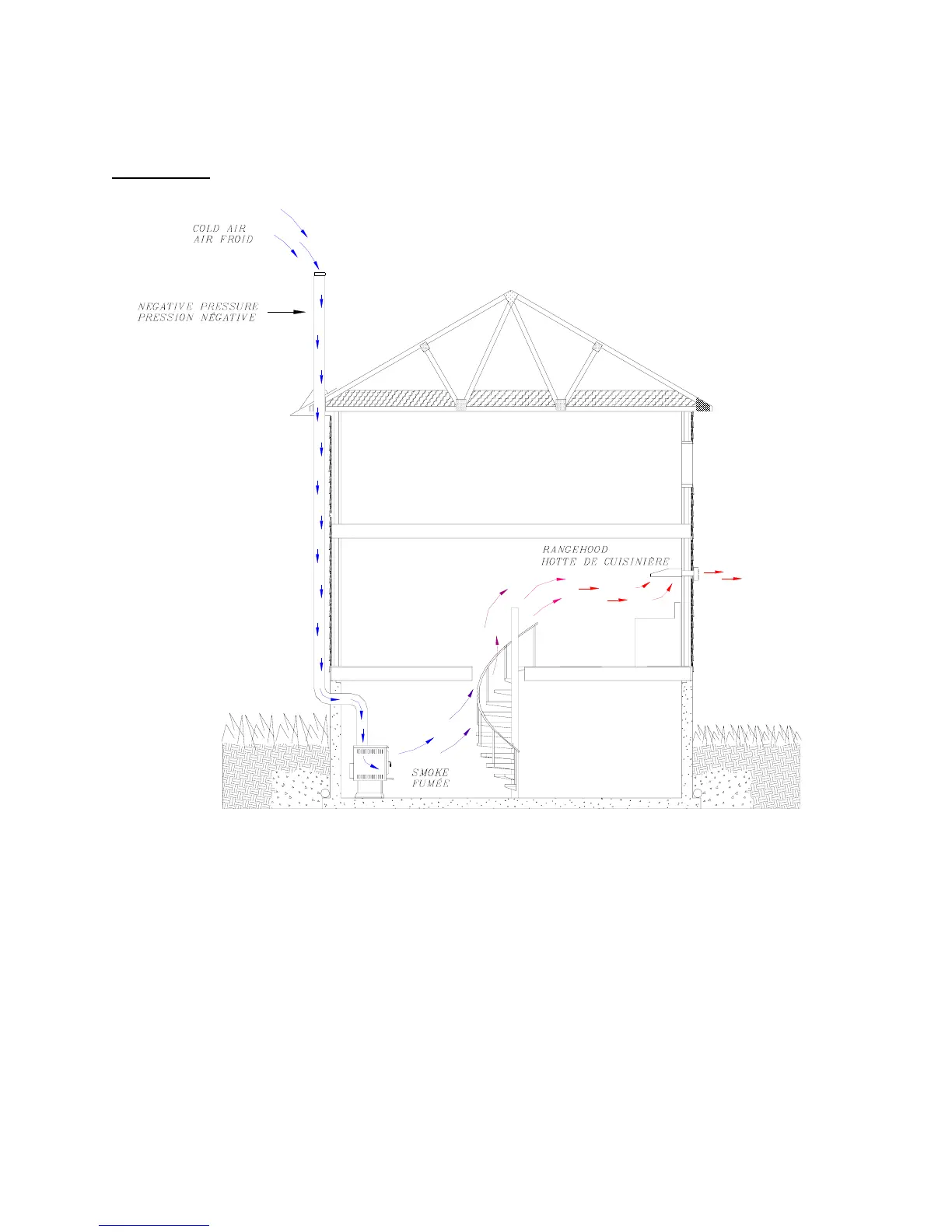

DRAWING #3
DRAWING #3 shows the effect of negative pressure caused by an air-moving device inside the house. In
the example above, the range hood draws air from inside the house, which is replaced by air coming from
the chimney. The result is a smoking problem.
27
