22

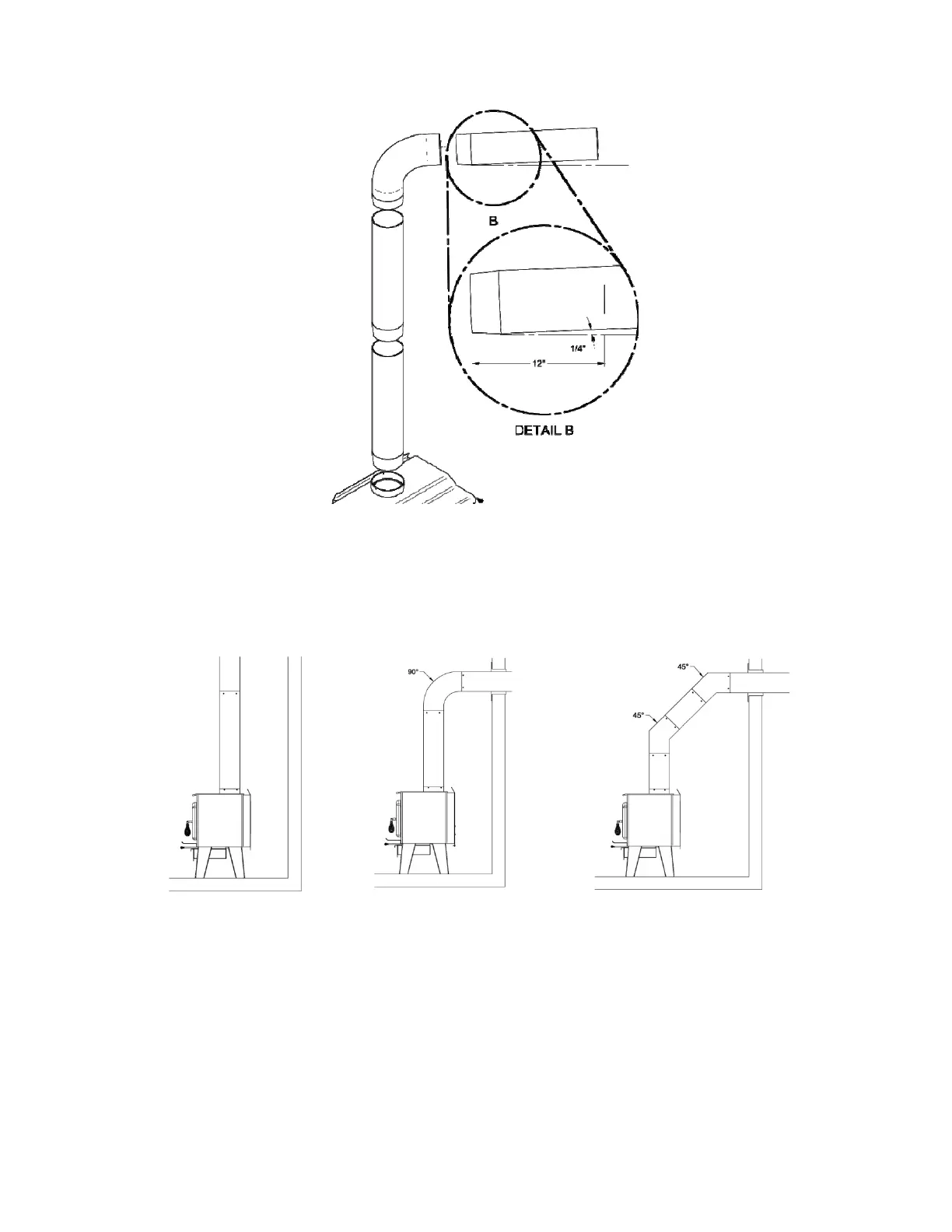

FIGURE 2.3 (B) Minimum Slope
Theassemblyshouldbeasshortanddirectaspossiblebetweenthestoveandchimney(Seefigure
2.4 (A)). The use of two 45 degree elbows (See figure 2.4 (C)) is often preferable to a single 90
degree elbow (See figure 2.4 (B)) because less turbulence iscreated in the
exhaust flow and they
resultinlesshorizontalrun.
(A) (B) (C)
FIGURE 2.4 The use of elbows
