Savannah Installation and Operation Manual
49
Appendix 4: Installation of Secondary Air Tubes and Baffle

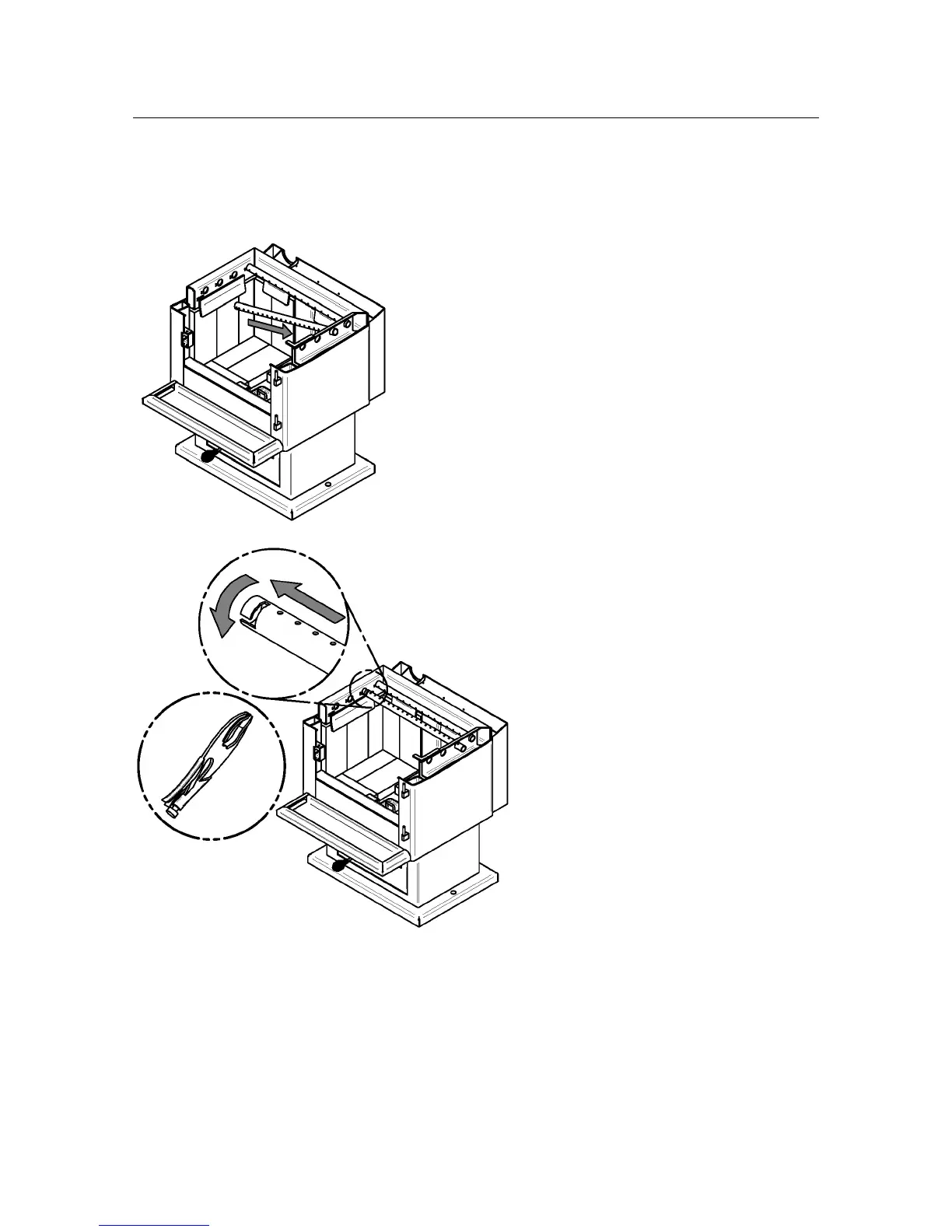

1- Starting with the rear tube, lean
and insert the right end of the
secondary air tube into the rear
right channel hole. Then lift and
insert the left end of the tube into
the rear left channel.
2- Align the notch in the left end of
the tube with the key of the left air
channel hole. Using a « Wise
grip » hold the tube and lock it in
place by turning the tube as shown
in detail A. Make sure the notch
reaches the end of the key way.
3- Repeat step 1 and 2 for the other
secondary air tubes.
4- To remove the tubes use the
above steps in reverse order.
