Rear lamps
Main lamps
1. Brake lamps (LED)
2. Sidelamps(LED)
3. Direction indicators (LED)
4. Reversing lamps(LED)
Secondary lamp cluster
5. Brake lamps/ sidelampsreminder (P21/5W)
6. Direction indicators reminder (PY21W)
7. Foglamps (W16W)
Model with halogen and Xenon
headlamps

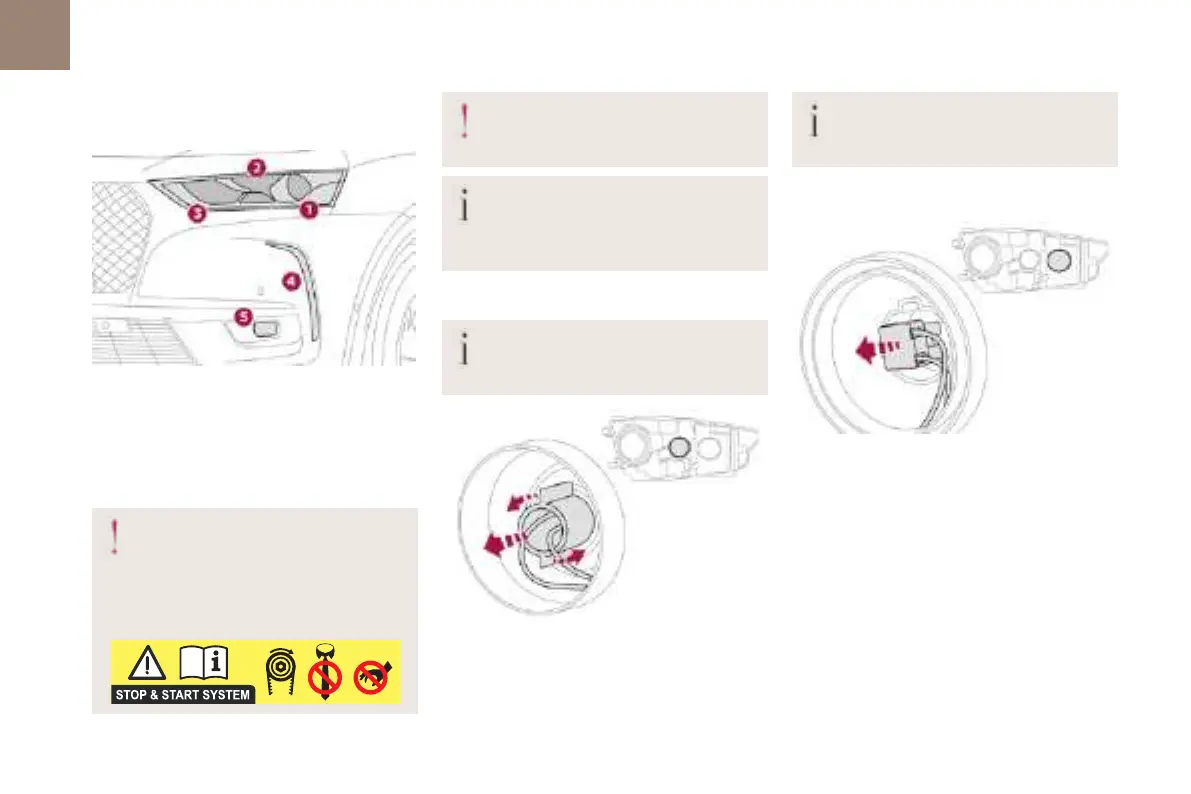

1. Dipped beam / main beam headlamps (D5S
25W)
2. Direction indicators (PY21W).
3. Additional main beamheadlamps (H7)
4. Daytime running lamps / sidelamps (LED)
5. Foglamps (LED)
Opening the bonnet / Accessing the bulbs
With the engine warm, proceed with
caution - risk of burns!
Take care with objects or clothing that could
be caught in the blades of the cooling fan - risk
of strangulation!
Risk of electrocution
Xenon bulbs (D5S) must be replaced by a
dealer or by a qualified workshop.
Halogen bulbs (Hx)
To ensure good quality lighting, check
that the bulb is correctly positioned in its
housing.
Direction indicators
Rapid flashing of a direction indicator
lamp (left or right) indicates that one of
the bulbs on the corresponding side has failed.
► Remove the protective cover by pulling the tab.
► Turn the bulb holder anti-clockwise.
► Pull the bulb and bulb holder assembly
backwards.
► Replace the bulb.
Amber coloured bulbs must be replaced by
bulbs with identical specifications and
colour.
Additional main beam headlamps
► Remove the protective cover by pulling the tab.
► Pull the connector backward: the bulb is
detached from the reflector.
► Disconnect the connector.
► Replace the bulb.
