In the event of a breakdown
08
Rear lamps
Main lamps
1. Brake lamps (LED)
2. Sidelamps(LED)
3. Direction indicators (LED)
4. Reversing lamps(LED)
Secondary lamp cluster
5. Brake lamps/ sidelampsreminder (P21/5W)
6. Direction indicators reminder (PY21W)
7. Foglamps (W16W)

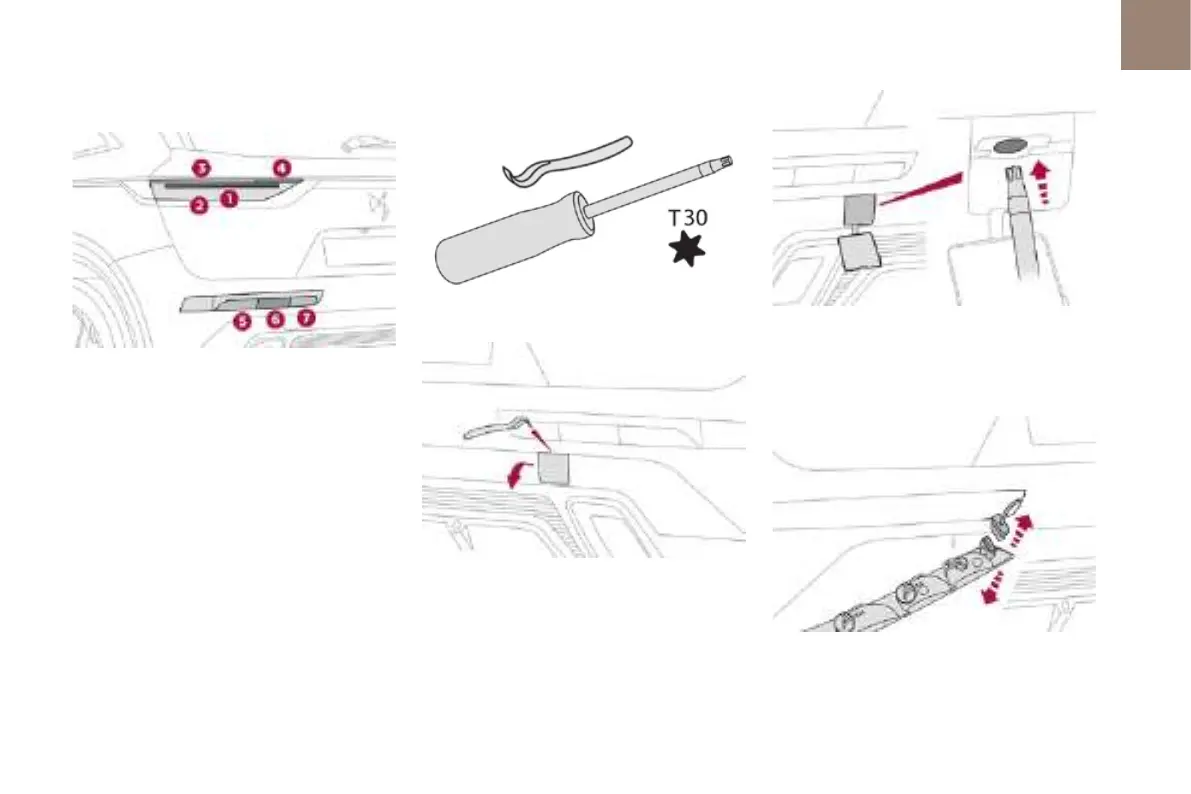

Access to the secondary lamp cluster
Tools required: rear protective cover opening tool
(tool kit) and Torx T30 screwdriver (not supplied).
► Using the opening tool, unclip the cover of
the access flap on the rear screw thread of the
towing eye, then pull it towards you.
► Insert the screwdriver head diagonally in the
cylindrical guide until you reach the lamp unit
fixing bolt.
► Slacken the bolt by about 10 turns then pull
the lamp unit to release it from the bumper.
► Disconnect the harness.
