DS18 JP6 - Dash Disassembly; Remove Lower Steering Column Panel; Remove Climate Control Panel; Remove Radio Trim Panel

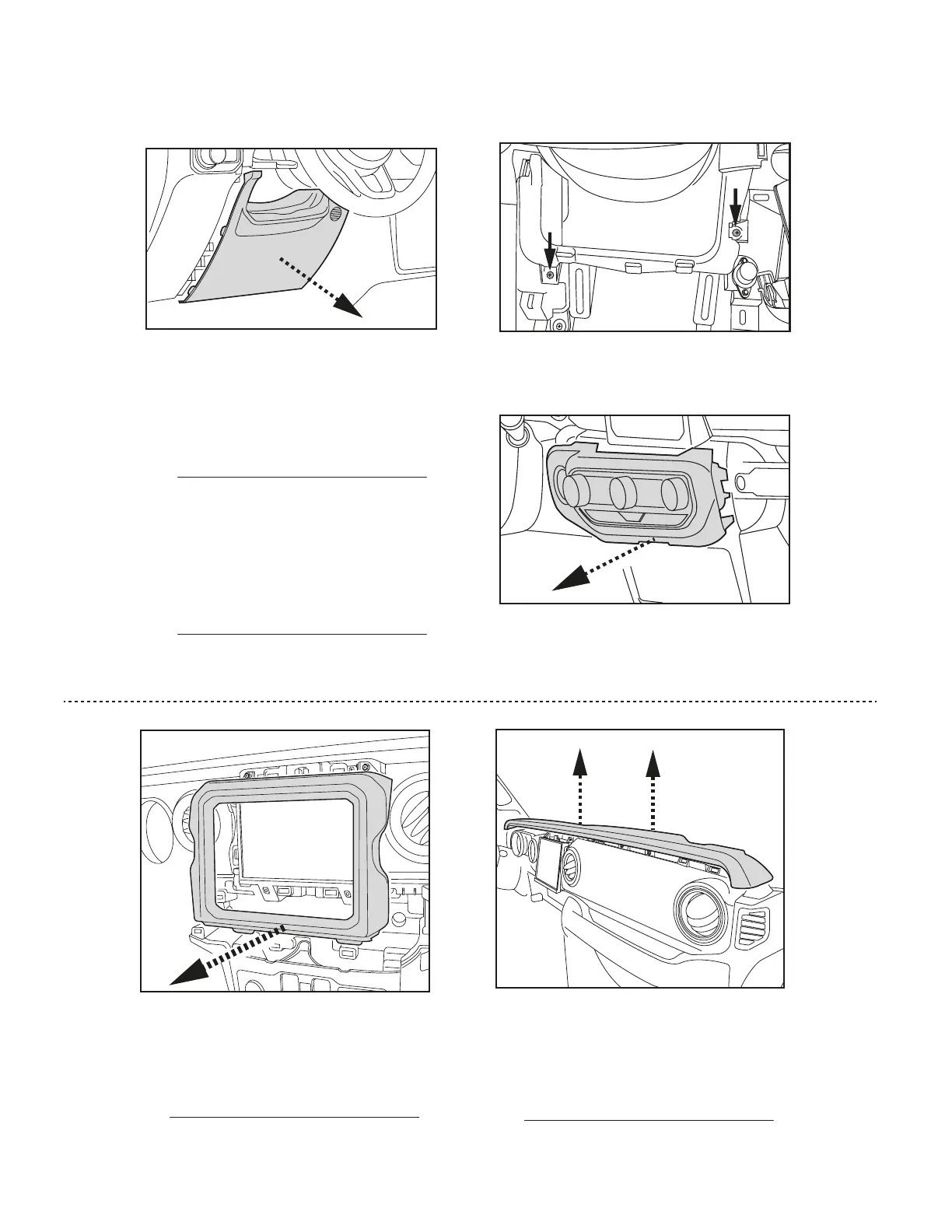

1. Unclip and remove the panel below the
steering column. Remove (2) Phillips
screw exposed. (Figures A,B)
2. Unclip, unplug, and remove the climate
control panel. (Figure C)
(Figure D) / (Figura D)
(Figure E) / (Figura E)
3. Remove (2) Phillips screws securing
the radio trim panel, then unclip and
remove. (Figure D)
4. Remove (1) Phillips screw securing the
dash pad, then unclip and remove.
(Figure E)
(Figure A) / (Figura A)
(Figure B) / (Figura B)
(Figure C) / (Figura C)
dash disassembly / DESMONTAJE DEL TABLERO
5
Soltar y quitar el panel debajo de la
columna de dirección. Retire (2) tornillos
Phillips expuestos.(Figuras A,B)
Desengancha, desenchufa y quita el panel
de control del clima. (Figure C)
Quite los (2) tornillos Phillips que sujetan el
panel de la moldura del radio, luego
desenganche y retire. (Figura D)
Quite (1) tornillo Phillips que sujeta la
almohadilla del tablero, luego desenganche
y retire. (Figura E)
