DS18 PRO-TW720L User Manual

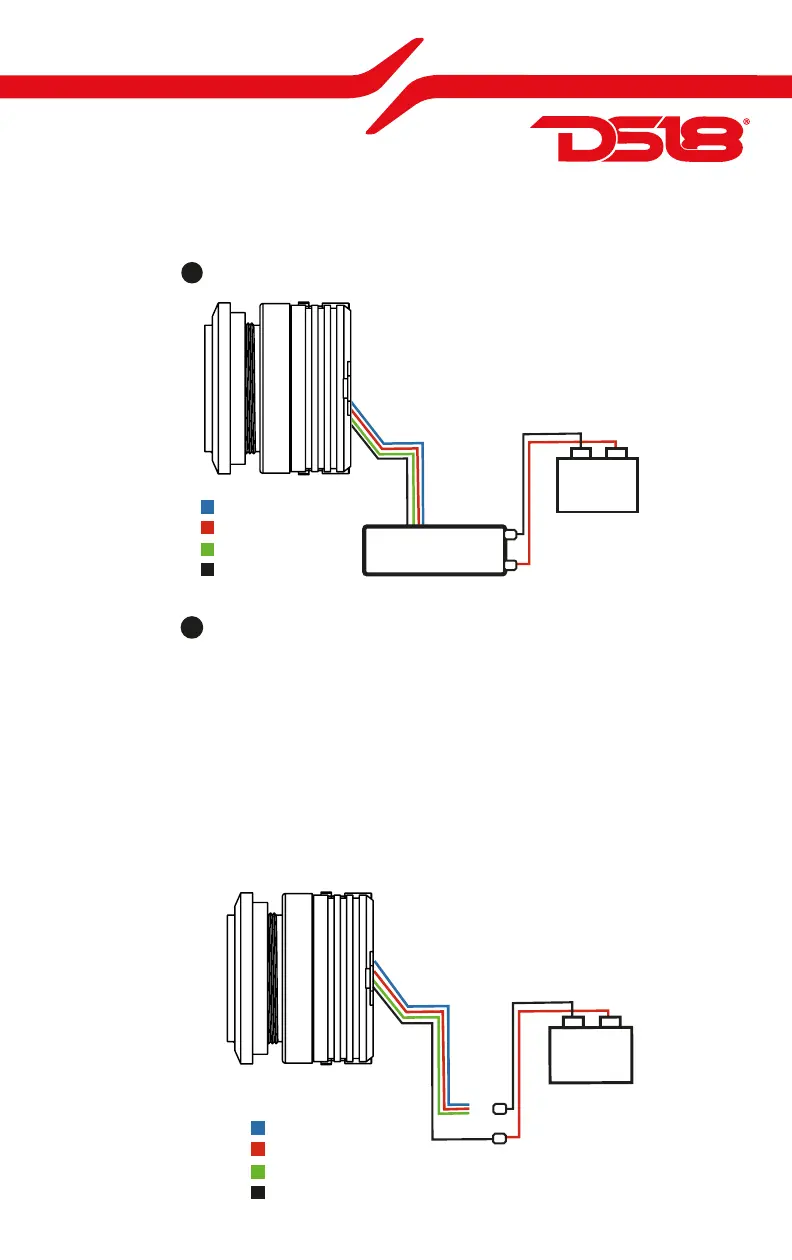

To connect without LED Control Module (LED-BTC),
Connect as Shown in the Following Diagram:
1
2
Black wire “BK” Connected to Battery Positive (+) 12V
White Color Light “R” ; “B” and “G” Connected to Battery Negative (-)
Green Color Light “G” Connected to Battery Negative (-)
Red Color Light “R” Connected to Battery Negative(-)
Blue Color Light “B” Connected to Battery Negative (-)
Purple Color Light “R” and “B” Connected to Battery Negative(-)
Yellow Color Light “R” and “G” Connected to Battery Negative (-)
Cyan Color Light ”B” and “G” Connected to Battery Negative (-)
INSTALLATION & CONNECTION OPTIONS
LED-BTC
+
-
Green LED (-)
12V DC (+)
Red LED (-)
Blue LED (-)
BATTERY
+-
BATTERY
+
-
Green LED (-)
12V DC (+)
Red LED (-)
Blue LED (-)
BATTERY
+-
BATTERY

DS18 PRO-TW720L Specifications

General

Brand	DS18
Model	PRO-TW720L
Category	Car Stereo System
Language	English
