Connection type Screw terminal, rising clamp, no internal spring
Min cable size 0.5mm² (AWG 20)
Max cable size 2.5mm² (AWG 14)
DSE9461 24V/12V 10A charger
DSE9460 24V/12V 5A charger
3.5A anti-surge
2.0A antisurge
6.3A anti-surge
3.5A anti-surge
4.2.1 BATTERY CHARGER
DANGER OF DEATH: LIVE PARTS exist within the enclosure. The enclosure cover must
not be removed when connected to an AC supply.

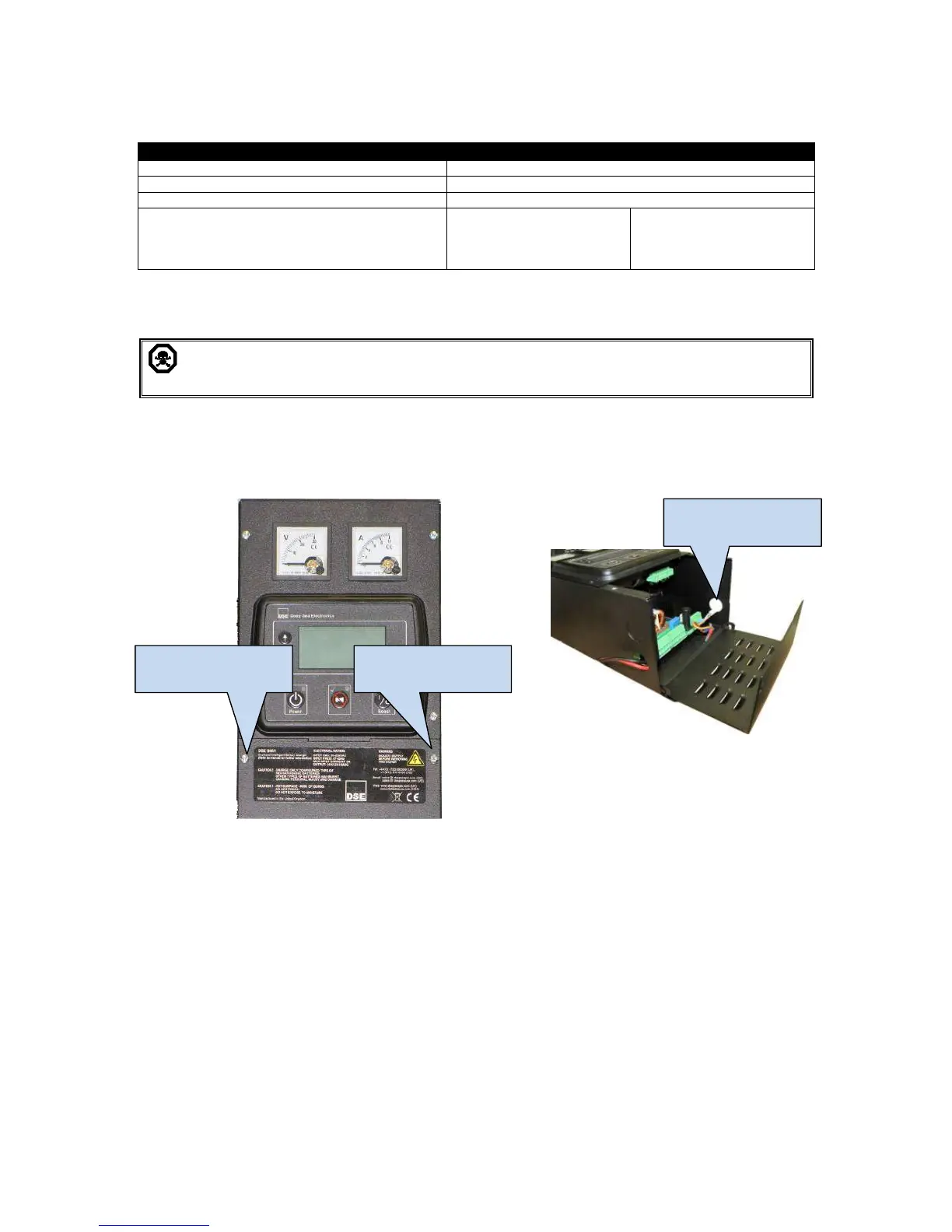

Battery Charger connections are available by removing the screws identified below and hinging the
cover down.
‘Push Outs’ are available on the side of the charger case to enable the installer to fit rubber grommets
to facilitate cable entry.
