| Installation Instructions
new style, you can simply remove the shunt plug and
re-insert it so that it covers the center and left pins of
the header.
6. Re-attach the chassis top, being sure to align the
holes in the top with the potentiometer inside. Re-
install the preamp in the endpin hole and tighten
the nut and strap button securely. Secure the
cables back inside the cable clamps so they cannot
rattle against the inside of the guitar.

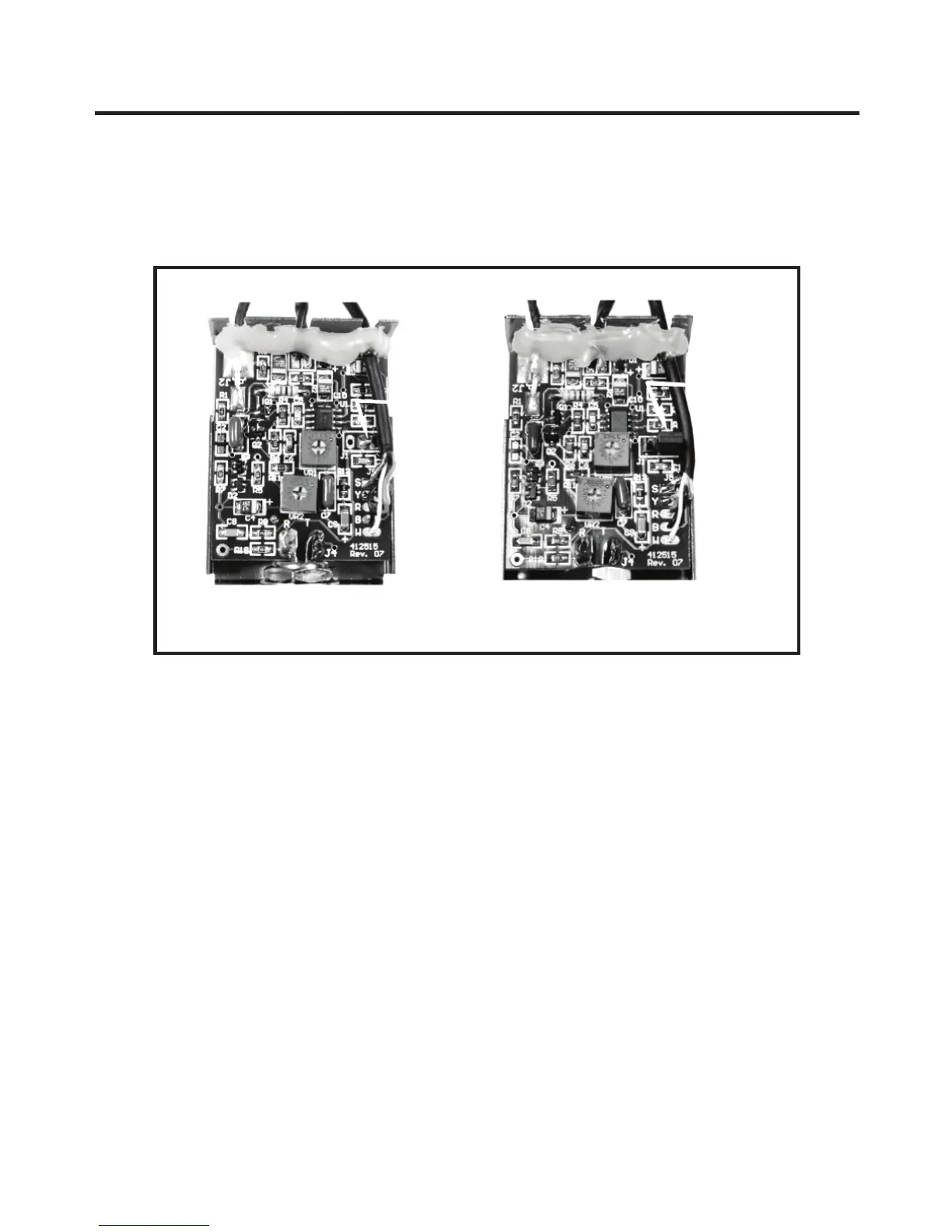

Figure 1 - Original Style
Figure 2 - New Style
Jumper
Shunt Plug
Converting the output signal to stereo operation
