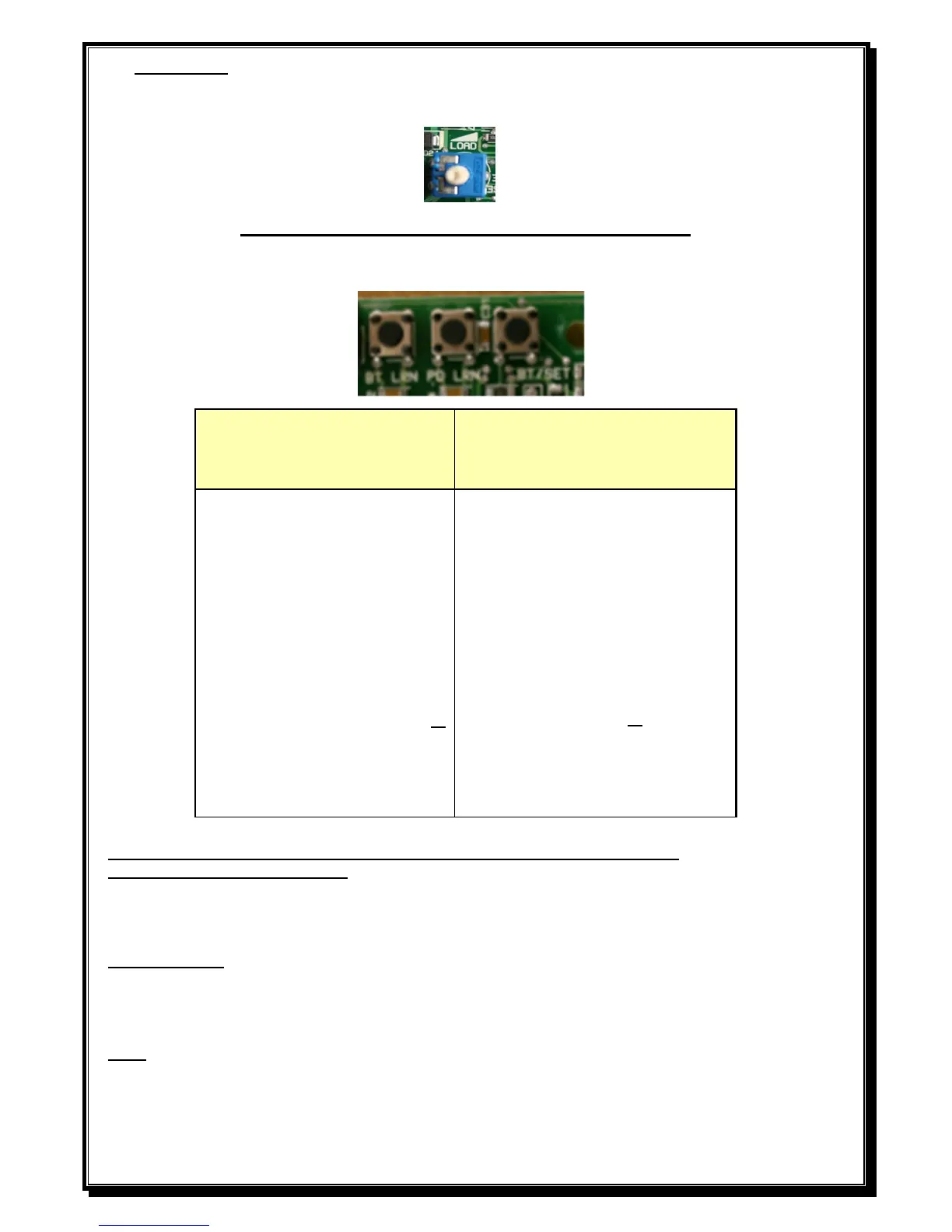

Load setting
To adjust the load, turn the provided load pot to determine the load setting (Minimum, anticlockwise & Maximum,
clockwise). The control card will beep, 1 minimum to 5 maximum beeps on next trigger before movement.
ON BOARD RECEIVER PROGRAMMING
The onboard receiver is designed to work with most rolling code transmitters.
(The override lever must be closed for programming transmitters).
The button used for BT LRN CANNOT be used for PD LRN and vice versa.
To individually erase transmitters:
To erase a button from the receiver, in case of incorrect programming i.e. blue button should be for BT LRN
and not PD LRN. Simply push and hold the BT LRN button for 5 seconds, the board will give 1 beep. Release the BT LRN
button. Then push and release the TX button you want to erase, the PCB will beep twice as confirmation. The TX is erased
and can be learned into correct input.
To master erase:
Push and hold the BT LRN button, after 5 seconds the board will give 1 x 1 second beep. Keep holding for another
5 – 10 seconds then the board will give 1 x 2 second beep (Older version PCB’s will give 2 beeps). Release BT
LRN button. The green receiver (RX) led will also flash 5 times indicating all transmitters erased.
Note: When programming TX no.32, the PCB will give 1x 1.5second beep after pressing and releasing the BT
LRN button indicating, Receiver (RX) is full.
The RX will abort programming automatically.
A TX must then be deleted before a next TX can be programmed to the RX.
If a transmitter is already programmed, the RX LED will go off with no beep on the 1
st
press from the TX.
PROGRAMMING A
TRANSMITTER (TX) FOR FULL
OPEN OPERATION – BT LRN
(Version 1.3)
PROGRAMMING A
TRANSMITTER FOR PEDESTRIAN
OPERATION – PD LRN
(Version 1.3)
1. Push the BT LRN button, the
RX led will go on.
2. Push the required button on the
transmitter, at arms length from
PCB once, the Rx led will flash.
Press the same button again,
and the PCB will emit 3 beeps
for a full Keelog transmitter or
2 beeps for other transmitters.
3. Repeat Step 1 and 2 for
additional transmitters. Up to 31
transmitters can be programmed
as a joint combination between
BT LRN & PD LRN.
1. Push the PD LRN button, the
RX led will go on.
2. Push the required button on the
transmitter, at arms length from
PCB once, the Rx led will flash.
Press the same button again, and the
PCB will emit 3 beeps for a full
Keelog transmitter or 2 beeps for
other transmitters.
3. Repeat Step 1 and 2 for additional
transmitters. Up to 31 transmitters
can be programmed as a joint
combination between BT LRN &
PD LRN.
