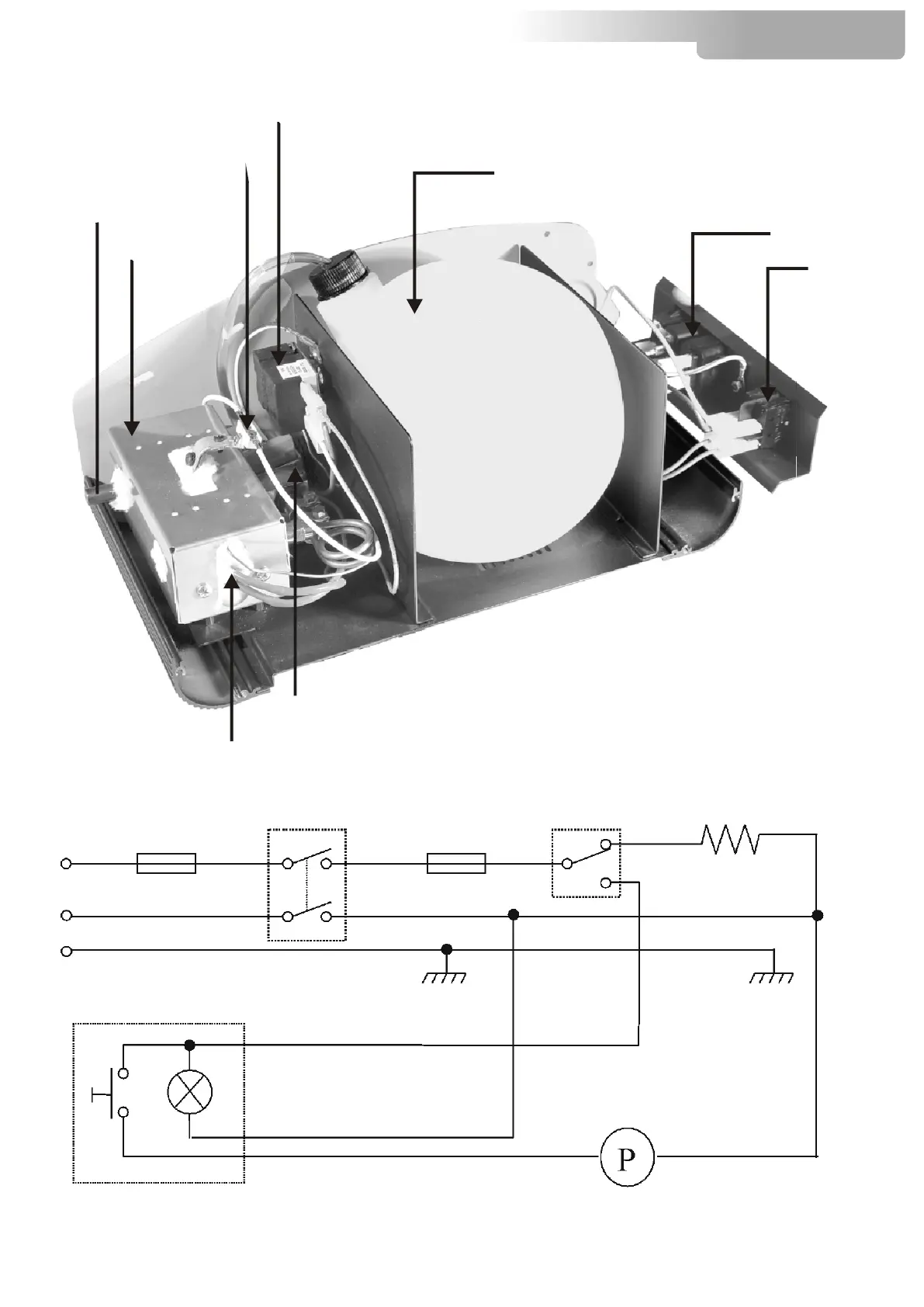

DTS F1 - Product Components and Circuitry; Component Identification; Electrical Circuit Diagram

TANK
HEATER
THERMOFUSE
THERMOSTAT
PUMP
HOUSING HEATER
PLUG
ON/OFF
RESISTANCE
FUSE 5A
POWER
BLACK
BLUE
THERMAL
FUSE
THERMOSTAT 318°C
RESISTANCE 1000W
17W
REMOTE CONTROL
BLACK
BLUE
YELLOW/GREEN
L
N
N
F 1
F o g m a c h i n e
7
