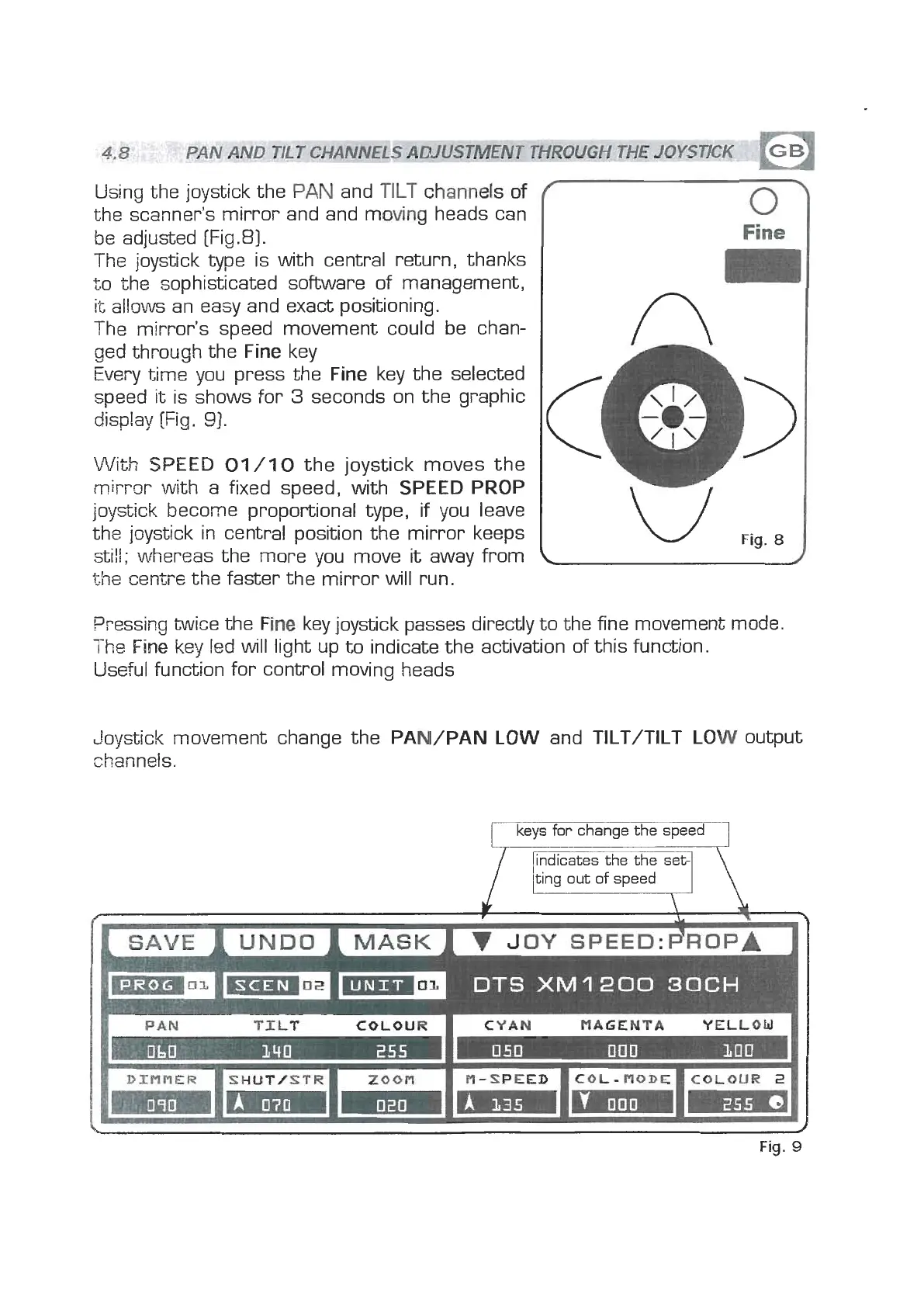

Using the joystick the
PAN
and
ILT
channels
of
the scanner's mirror and and moving heads can
be adjusted [Fig
.8].
The joystick type is with central return, thanks
to the sophisticated software of management,
it
allows
an easy and exact positioning.
The mirror's speed movement could be chan-
ged through the
Fine key
Every
time
you press the Fine key the selected
speed
it
is shows for
3
seconds on the graphic
display
[Fig.
91.
With
SPEED
01 /l0
the joystick moves the
mirror with a fixed speed, with
SPEED PROP
joystick become proportional type, if you leave
the joystick in central position the mirror keeps
sti!l;
whereas the more you move
it
away from
the centye the faster the mirror
will
run.
0
Fine
Fig.
8
Pressing twice the
Fine
key joystick passes directly to the fine movement mode.
The
Fine
key led will light up to indicate the activation of this function.
Useful function for control moving heads
Joystick movement change the
PAN/PAN LOW
and
TILT/TILT LOW
output
channels.
I
I
PAN
TIL"
DTS
XM1200
30CH
)I
non
l
r
I
I
DIrtnER
I
S#UT/STR
I
ZOOPI
I
M-SPEED
COL-FIQDE
COLOUR
2
1
1
Fig.
9
