Dual 1019 - Installation Instructions; Installation on Base or Mounting Board; Mounting the Cartridge; Balancing the Tonearm

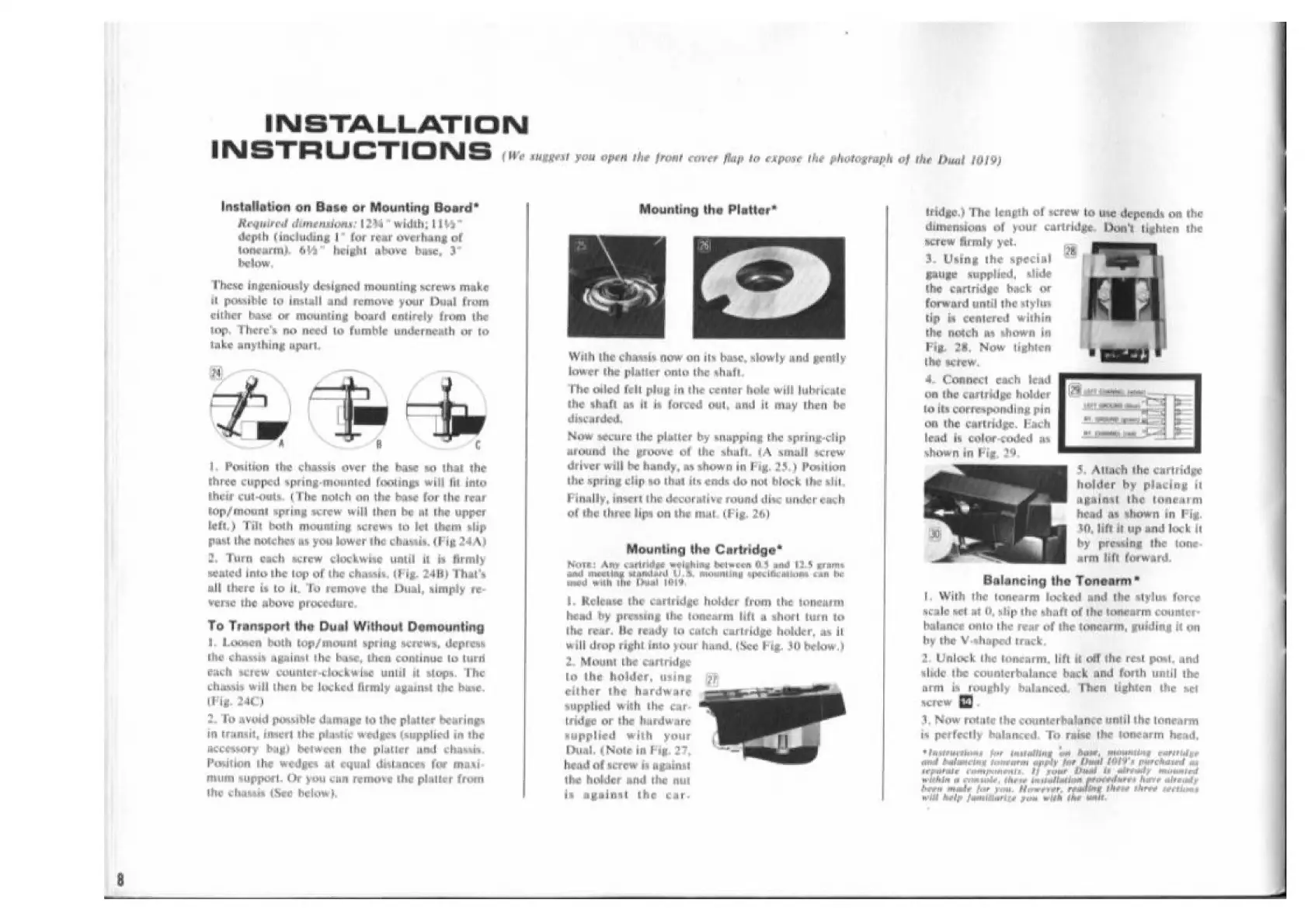

INSTALLATION
INSTRUC TION Ss (We suggest you open the front cover fap to expode
Installation on Base or Mounting Board*
Required dimensions; 1244" width; 1144"
depth (including 1° for rear overhang of
tonearm). 644° height abowe base, 3°
bee low
These ingeniously designed mounting screws make
it posible to install and remove your Dual from
either base or mounting board entirely from the
top, There's no need to fumble underneath or to
take anything apart,
1, Poution the chassis over the base so that the
three cupped spring-mounted footings will fil into
their cut-outs. (The notch on the base for the reas
lop / mount spring screw will then be of the upper
left.) Tilt bath mounting screws to let them slip
rast the notches aa you lower the chassis, (| ig 24A)
2. Turn each screw clockwine until it is firmly
sented into the top of the chassis, (Fig. 248) That's
all there is to it. To remove the Dual, simply re-
verse the above procedure
To Transport the Dual Without Demounting
l. Loowen both top/ mount spring screws, depress
the chavs agninal the base, thes continue to turti
cach screw counterclockwise wntil it stops. The
Chassis Will then be locked firmly ugainst the base.
(Fig. 240)
2 To avedd pousible damage to the platter beurings
I transit, inert the plastic wedges (supplied in the
aocessory bag) between the platier and chassis.
Poxwtion the wedges at equal distances for mani
Mum suppor. Or you can remove the platter from
Ihe chasis (Seo below},
Mounting the Platter*
With the chassis now on its base, slowly and gently
lower the platter onto the shall
Phe oiled fell plug in the center hole will lubricate
Ihe shaft oo it is forced oul, and it may then be
cingarceal,
Mow secure the platter by snapping the spring-clip
arcind the groove of the shaft, (A small screw
driver will be handy, as shown in Fig. 25.) Position
the spring clip so tha its ends do pot block the slit
Finally, insert the decorative round disc under each
of the three lips on the mat. (Fig. 26)
Mounting the Cartridge"
Nore: Any cartridge eeighing between 1.5 ond 12.5 grams
and meciiag stanland 1/,5. mounting epiclhcaiom can be
merd with the [hil )01%
l. Release the cartridge holder from the tonearm
head by pressing (he toncarm lift a short turn to
the rear. Be ready to catch cartridge holder, as it
will drop righ! into your hand, (See Fig, 30 below.)
- Mount the curtridpe
lo the holder, using (7
either the hardware
supplied with the car- *
tnidge or the hardware
supplied with your
Dial, (Note in Pig, 27
bend of screw is fgeninvat
the holder and the nut
is ogalimat the car
(he photograph of the Dual loa)
ridge.) The length of screw to use depends on the
dimensions of your cartridge. BDan't lighten the
screw firmly yet.
a. Using the apecial
galige supplied, slide
the cartridge back or
forward until the stylus
tip @ centered within
the notch as shown in
Fig. 28, Now tighten
the screw.
4. Connect cach lead - ,
Co —
4 F
on the cartridge holder
to its corresponding pin & . as we
on the cartridge. Each "i == oe
lead is color-coded as = Eee
shown in Pig, 79
5. Attach the cartridge
holder by placing it
ugainal the tonearm
head as shown in Fig,
10, lift t up and lock it
by pressing the tone.
— arm Lift forward
Balancing the Tonearm*
|. With the tonearm locked and the stylus force
cole set ot O, sip the shaft of the tonearm counter
hilance onio the rear of the toncarm, guiding it on
by the V-shaped track,
2. Unlock the tonearm, lift off the real pow, are
slide the counterbalance back and forth until the
arm is roughly bwlanced. Then tighten the set
screw Be),
1, Now rotute the counterbalance until the tonearm
is perfectly balanced, To raise the tonearm head,
lhttvithns fait ftaiing of beet, Proetiiieg carrrial gy
ore! Balarcung feeraatntt apply for fina! (OI: perohewsred aa
repeals teatemenis, ff) pose Duel fb already rpalecl
Hila a cele, tice india protease fave ile rial y
heey male ker pou, Hewrerver, reading then thier certicnne
will kelp fmnilnrice pow wilh jae ie
