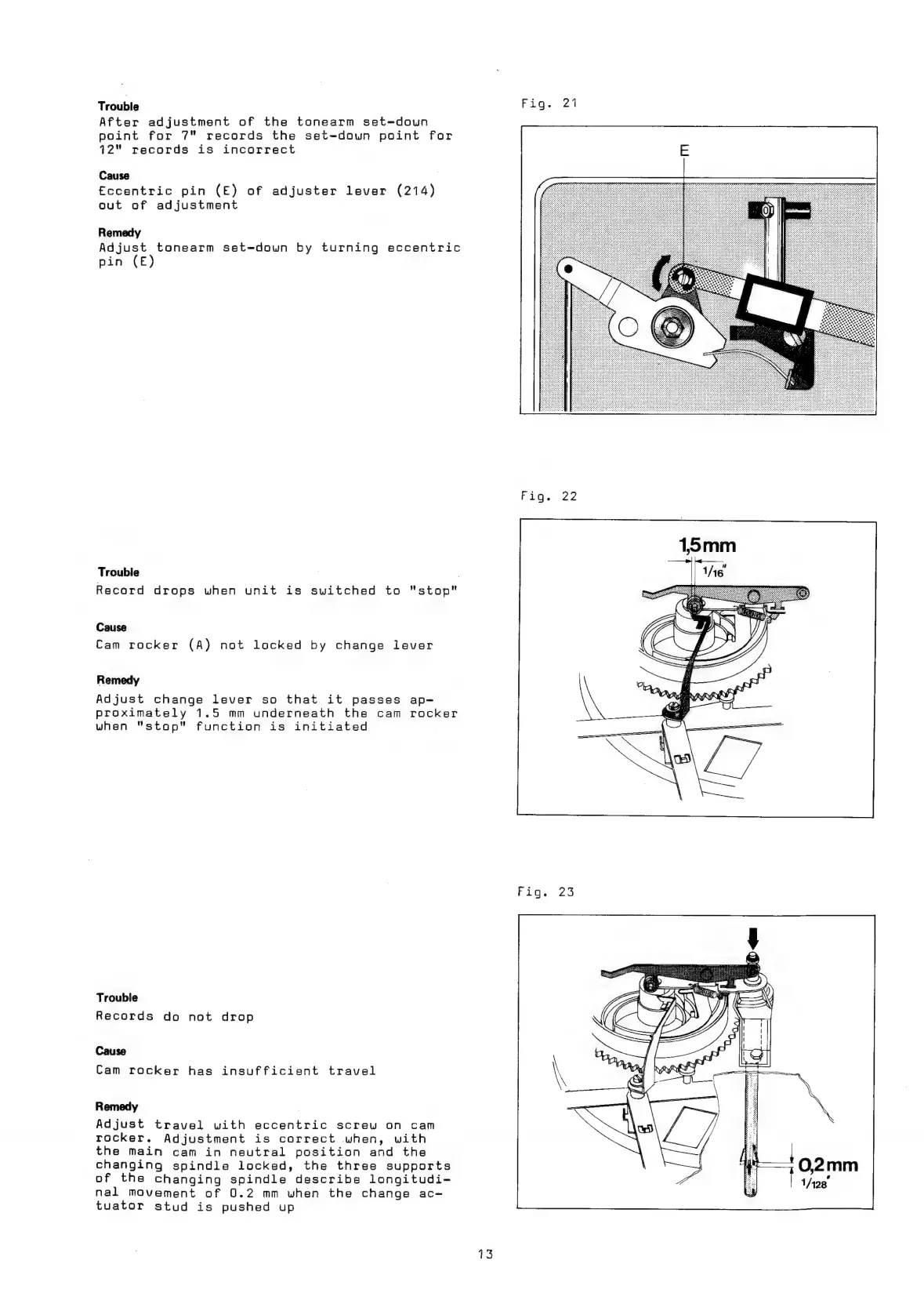

Trouble
Pigs
21
After
adjustment
of
the
tonearm
set-—douwn
point
for
7"
records
the
set-down
point
for
12"
records
is
incorrect
Cause
fecentric pin (E) of adjuster lever (214)
out of adjustment
Remedy
Adjust tonearm set-down by turning eccentric
pin (E)
Fig. 22
Trouble )
Record drops when unit is switched to "stop"
Cause
Cam rocker (A) not locked by change lever
Remedy
Adjust change lever so that it passes ap-
proximately 1.5 mm underneath the cam rocker
when "stop" function is initiated
Fio..23
Trouble
Records do not drop
Cause
Cam rocker has insufficient travel
Remedy
Adjust travel with eccentric screw on cam
rocker. Adjustment is correct when, with
the main cam in neutral position and the
changing spindle locked, the three supports
of the changing spindle describe longitudi-
nal movement of 0.2 mm when the change ac-
tuator stud is pushed up
