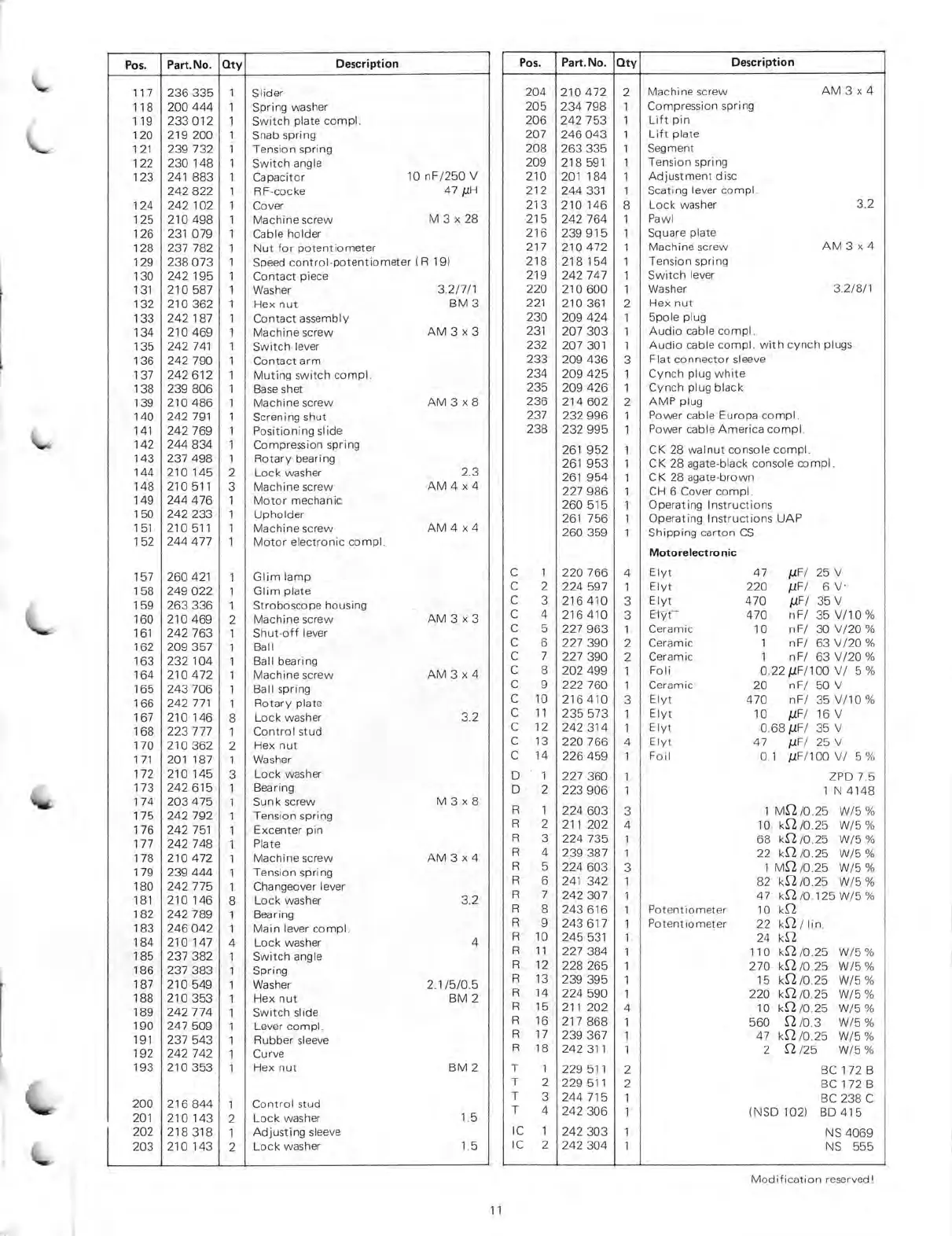

Dual 622 - Page 11

Pos.
Part.No.
City
Description
117 236 335 1 Slider
118
200 444 1 Spring washer
119 233
012 1 Switch plate
compl.
120 219 200 1 Snab
spring
121 239 732 1
Tension spring
122 230 148 1 Switch angle
123 241 883 1 Capacitor
10
nF/250 V
242 822 1 RF-cocke
47 PH
124 242 102 1 Cover
125 210 498 1 Machine screw
M 3 x 28
126 231 079
1 Cable holder
128 237 782 1
Nut for potentiometer
129 238 073
1 Speed
control-potentiometer
(R 19)
130 242 195 1 Contact piece
131 210 587 1 Washer
3.2/7/1
132 210 362 1 Hex nut
BM 3
133 242 187 1 Contact assembly
134 210 469 1 Machine screw
AM 3 x 3
135
242 741 1 Switch lever
136 242 790 1
Contact arm
137 242 612
1 Muting switch compl.
138 239 806 1 Base shet
139 210 486 1 Machine screw
AM
3 x 8
140
242 791
1
Screning shut
141
242 769
1
Positioning
slide
142 244 834 1
Compression spring
143 237 498 1
Rotary bearing
144 210 145
2 Lock washer
2.3
148 210 511 3
Machine screw
AM 4 x 4
149 244 476 1 Motor mechanic
150 242 233 1 Upholder
151 210 511 1
Machine screw
AM 4 x 4
152 244 477 1 Motor
electronic compl.
157 260
421 1 Glim lamp
158 249 022
1 Glim plate
159
160
263 336
210 469
1
2
Stroboscope housing
'
Machine
screw
AM 3 x 3
161 242 763 1
Shut-off lever
162 209 357 1
Ball
163 232 104 1 Ball bearing
164 210 472 1 Machine screw
AM 3 x 4
165 243 706 1 Ball spring
166
242 771 1 Rotary plate
167 210 146 8 Lock washer
3.2
168 223
777 1
Control
stud
170 210 362 2 Hex nut
171 201 187 1 Washer
172 210 145 3 Lock washer
173 242 615 1 Bearing
174 203 475 1 Sunk screw
m
3 x 3
175 242 792
1 Tension spring
176 242 751 1 Excenter pin
177 242 748 1 Plate
178 210 472 1 Machine screw
AM 3 x 4
179 239 444 1 Tension spring
180
242 775 1 Changeover lever
181 210 146
8 Lock washer 3.2
182 242 789
1
Bearing
183 246 042 1 Main lever compl.
184 210 147 4 Lock washer 4
185 237 382 1 Switch angle
186 237 383 1
Spring
187 210 549 1
Washer
2.1/5/0.5
188 210 353 1 Hex nut BM 2
189 242 774 1 Switch
slide
190
247 509 1
Lever compl.
191 237 543 1 Rubber sleeve
192 242 742 1 Curve
193 210 353 1 Hex nut BM 2
200
216
844 1
Control stud
201
210 143 2 Lock
washer
1.5
202
218
318 1
Adjusting sleeve
203
210 143 2
Lock
washer 1.5
Pos.
Part. No. Oty
Description
204
210 472
2
Machine screw
AM
3 x 4
205 234 798 1
Compression spring
206 242 753 1
Lift pin
207 246 043 1
Lift
plate
208
263 335 1
Segment
209
218
591 1
Tension spring
210 201 184 1
Adjustment disc
212 244
331 1 Scating
lever compl.
213 210 146
8 Lock washer
3.2
215
242 764 1
Pawl
216
239 915 1
Square
plate
217 210 472 1
Machine screw
AM
3 x 4
218
218 154 1
Tension spring
219 242
747 1
Switch lever
220 210 600
1 Washer
3.2/8/1
221
210 361 2
Hex nut
230
209 424 1
5p01e plug
231
207
303
1
Audio cable
compl.
232
207
301 1
Audio
cable
compl. with cynch plugs
233
209 436 3
Flat connector
sleeve
234 209 425 1 Cynch
plug white
235 209 426
1
Cynch plug black
236 214 602 2
AMP plug
237
232
996
1
Power cable
Europa compl .
238
232 995 1
Power cable America compl.
261 952 1
CK 28 walnut console
compl.
261 953 1
CK 28 agate-black console
compl.
261 954 1 CK 28 agate-brown
227 986 1 CH 6 Cover compl.
260 515 1 Operating
lnstructions
261 756 1 Operating I nstructions UAP
260 359 1 Shipping carton
CS
Motorelectro nic
C 1 220 766 4 Elyt 47 11F/ 25V
C 2
224 597 1 Elyt 220 µ.F/ 6 V•
C
3
216 410 3 Elyt 470 µF/ 35V
C 4
216 410 3 Ety - f — 470
nF/ 35
V/10 %
C 5
227
963 1 Ceramic 10 nF/ 30 V/20
%
C 6 227 390 2 Ceramic 1
nF/ 63
V/20 %
C
7
227 390 2 Ceramic 1
nF/ 63
V/20 %
C
8
202 499 1 Foli
0.22 gF/100
V/ 5%
C 9 222 760 1 Ceramic
20
nF/ 50V
C 10
216
410 3 Elyt 470 nF/
35 V/10 %
C
11
235 573 1 Elyt 10
11F/ 16V
C
12
242 314 1 Elyt
0.68
1/F/ 35 V
C
13
220
766
4 Elyt
47 p.F/ 25V
C 14
226
459 1
Foil
0.1 µF/100 V/ 5%
D
. 1
227
360 1 ZPD
7.5
D
2
223
906
1 1 N 4148
R
1
224
603
3 1 Mn/0.25
W/5%
R
2
211 202
4 10
k2/0.25 W/5%
R
3
224
735 1
68 k2/0.25
W/5%
R
4
239 387 1
22
kn/0.25 W/5%
R
5
224
603
3
1
Mn/0.25
W/5%
R
6 241
342
1 82 kg2
/0.25 W/5%
R
7
242
307 1 47
kn/0.125
W/5 %
R
8
243 616 1
Potentiometer
10 kn
R
9
243
617 1
Potentiometer 22 kn / Iin.
R
10
245
531
1 24 kn
R
11
227
384
1 110
kn/0.25
W/5%
R
12
228 265
1 270
kn/0.25
W/5%
R
13
239
395 1
15 kn/0.25
W/5%
R
14
224
590 1
220
kn/0.25 W/5%
R
15
211
202 4
10
k2/0.25 W/5%
R
16
217 868 1
560
2/0.3
W/5%
R
17
239 367 1
47
kn/0.25 W/5%
R
18
242
311
1
2
2 / 2 5
W/5%
T
1
229
511
2
BC
172 B
T
2
229 511
2
BC 172 B
T
3
244
715
1
BC 238 C
T
4
242 306
1
(NSD 102) BD
415
IC
1
242 303
1
NS
4069
IC
2
242
304
1
NS
555
11
