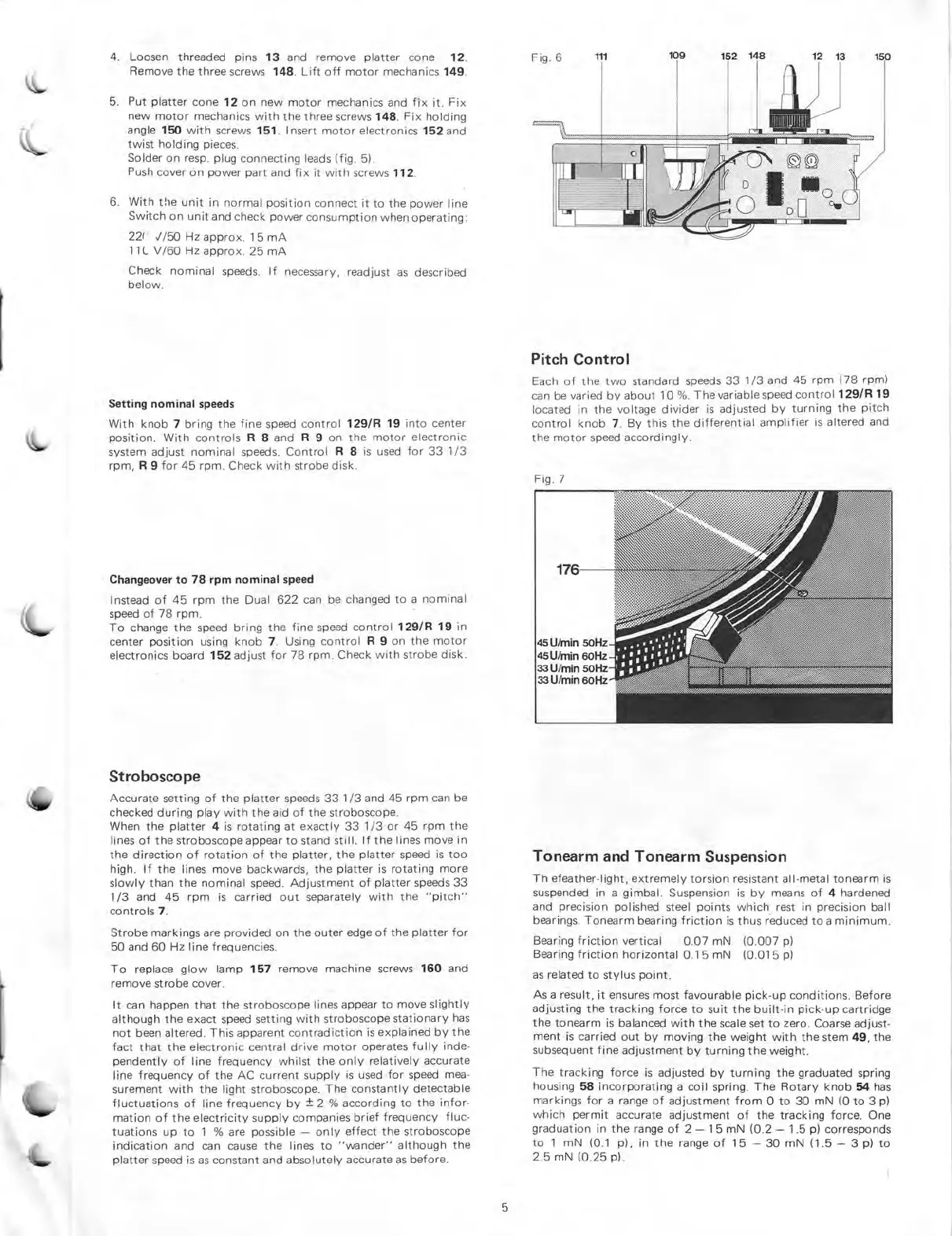

Page #5 background imageLoading...
Page #5 background image
4.
Loosen
threaded
pins
13
and
remove
platter
cone
12
Remove
the
three
screws
148.
Lift
off
motor
mechanics
149
5.
Put
platter
cone
12
on
new
motor
mechanics
and
ffix
it.
Fix
new
motor
mechanics
with
the
three
screws
148.
Fix
holding
angle
150
with
screws
151.
Insert
motor
electronics
152
and
twist
holding
pieces.
Solder
on
resp.
plug
connecting
leads
(fig.
5).
Push
cover
on
power
part
and
fix
it
with
screws
112.
6.
With
the
unit
in
normal
position
connect
it
to
the
power
line
Switch
on
unit
and
check
power
consumption
when
operating:
221'
,
//50
Hz
approx.
15
mA
11L
V/60
Hz
approx.
25
mA
Check
nominal
speeds.
If
necessary,
readjust
as
described
below.
Setting
nominal
speeds
With
knob
7
bring
the
fine
speed
control
129/R
19
into
center
Position.
With
controls
R
8
and
R
9
on
the
motor
electronic
system
adjust
nominal
speeds.
Control
R
8
is
used
for
33
1/3
rpm,
R
9
for
45
rpm.
Check
with
strobe
disk.
Changeover
to
78
rpm
nominal
speed
Instead
of
45
rpm
the
Dual
622
can
be
changed
to
a
nominal
speed
of
78
rpm.
To
change
the
speed
bring
the
fine
speed
control
129/R
19
in
center
position
using
knob
7.
Using
control
R
9
on
the
motor
electronics
board
152
adjust
for
78
rpm.
Check
with
strobe
disk.
Stroboscope
Accurate
setting
of
the
planer
speeds
33
1/3
and
45
rpm
can
be
checked
during
play
with
the
aid
of
the
stroboscope.
When
the
platter
4
is
rotating
at
exactly
33
1/3
or
45
rpm
the
lines
of
the
stroboscope
appear
to
stand
still.
If
the
lines
move
in
the
direction
of
rotation
of
the
platter,
the
platter
speed
is
too
high.
If
the
lines
move
backwards,
the
platter
is
rotating
more
slowly
than
the
nominal
speed.
Adjustment
of
platter
speeds
33
1/3
and
45
rpm
is
carried
out
separately
with
the
"pitch"
controls
7.
Strobe
markings
are
provided
on
the
outer
edge
of
the
platter
for
50
and
60
Hz
line
frequencies.
To
replace
glow
lamp
157
remove
machine
screws
160
and
remove
strobe
cover.
lt
can
happen
that
the
stroboscope
lines
appear
to
move
slightly
although
the
exact
speed
setting
with
stroboscope
stationary
has
not
been
altered.
This
apparent
contradiction
is
explained
by
the
fact
that
the
electronic
central
drive
motor
operates
fully
inde-
pendently
of
line
frequency
whilst
the
only
relatively
accurate
line
frequency
of
the
AC
current
supply
is
used
for
speed
mea-
surement
with
the
light
stroboscope.
The
constantly
detectable
fluctuations
of
line
frequency
by
±
2
%
according
to
the
infor-
mation
of
the
electricity
supply
companies
brief
frequency
fluc-
tuations
up
to
1
are
possible
only
effect
the
stroboscope
indication
and
can
cause
the
lines
to
"wander"
although
the
platter
speed
is
as
constant
and
absolutely
accurate
as
before.
Fig.
6
111
152
148
12
13
150
Sell
Pitch
Control
Each
of
the
two
standard
speeds
33
1/3
and
45
rpm
(78
rpm)
can
be
varied
by
about
10%.
The
variablespeed
control
1291
19
located
in
the
voltage
divider
is
adjusted
by
turning
the
pitch
control
knob
7.
By
this
the
differential
amplifier
is
altered
and
the
motor
speed
accordingly.
Fig.
7
U/min
soHz
45U/min
soHz
33
U/min
50Hz
33U/min
6oHz
.4.5ze
Tonearm
and
Tonearm
Suspension
Th
efeather-light,
extremely
torsion
resistent
all-metal
tonearm
is
suspended
in
a
gimbal.
Suspension
is
by
means
of
4
hardened
and
precision
polished
steel
points
which
rest
in
precision
ball
bearings.
Tonearm
bearing
friction
is
thus
reduced
to
a
minimum.
Bearing
friction
vertical
0.07
mN
(0.007
p)
Bearing
friction
horizontal
0.15
mN
(0.015
p)
as
related
to
stylus
point.
As
a
result,
it
ensures
most
favourable
pick
-up
conditions.
Before
adjusting
the
tracking
force
to
suit
the
built-in
pick
-up
cartridge
the
tonearm
is
balanced
with
the
scale
set
to
zero.
Coarse
adjust-
ment
is
carried
out
by
moving
the
weight
with
the
stem
49,
the
subsequent
fine
adjustment
by
turning
the
weight.
The
tracking
force
is
adjusted
by
turning
the
graduated
spring
housing
58
incorporating
a
coil
spring.
The
Rotary
knob
54
has
markings
for
a
range
of
adjustment
from
0
to
30
mN
(0
to
3
p)
which
permit
accurate
adjustment
of
the
tracking
force.
One
graduation
in
the
range
of
2
15
mN
(0.2
1.5
p)
corresponds
to
1
mN
(0.1
p),
In
the
range
of
15
—30
mN
(1.5
3
p)
to
2.5
mN
(0.25
p).
