Fig.
8
34
52
50
51
57
44
35
208
Fig.
9
Fig.
10
-
--
r•
J
I
33
32
58
54
55
61
63
173
174
170

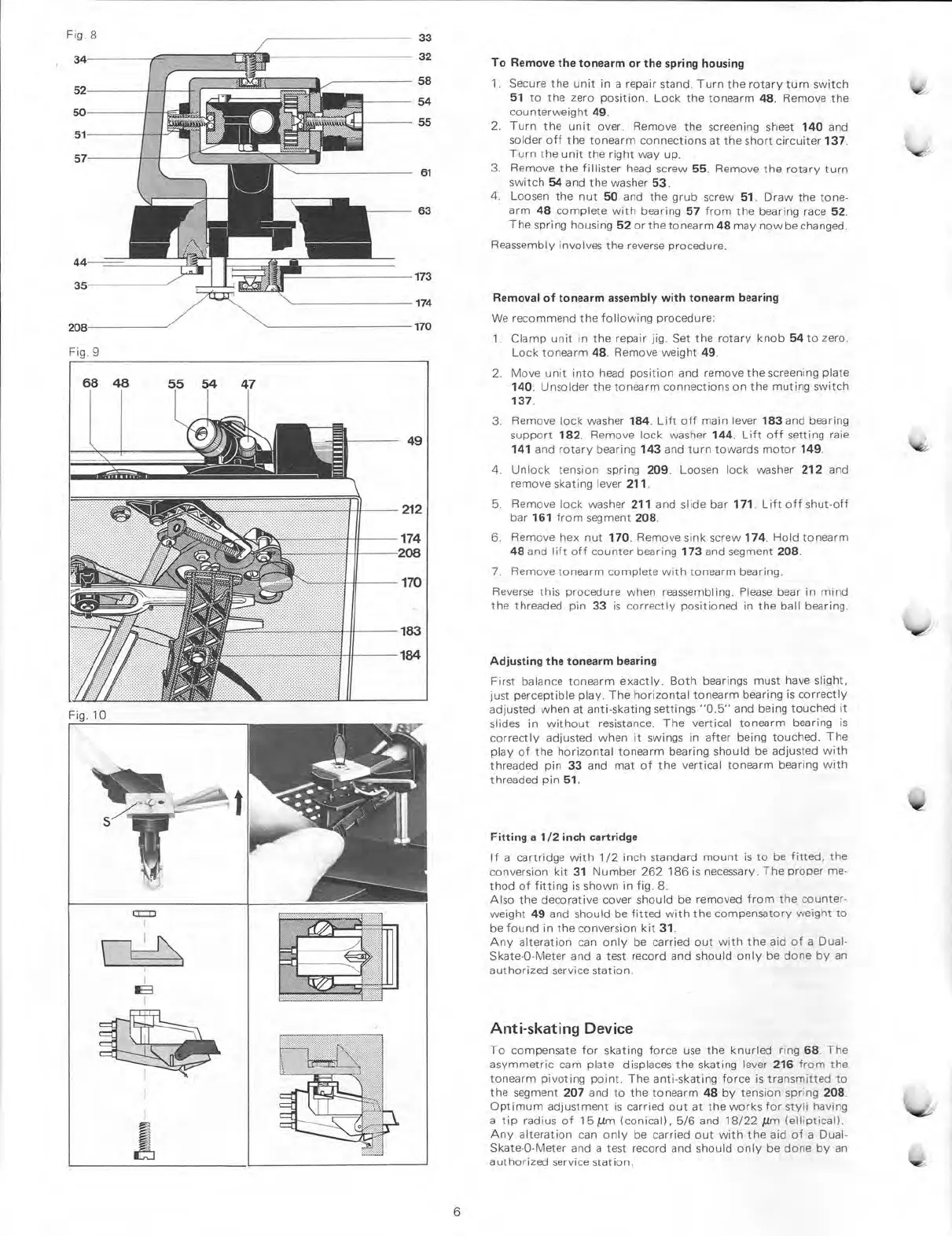

To
Remove
the
tonearm
or
the
spring
housing
1.
Secure
the
unit
in
a
repair
stand.
Turn
the
rotary
turn
switch
51
to
the
zero
position.
Lock
the
tonearm
48.
Remove
the
counterweight
49.
2.
Turn
the
unit
over.
Remove
the
screening
sheet
140
and
solder
off
the
tonearm
connections
at
the
short
circuiter
137.
Turn
the
unit
the
right
way
up.
3.
Remove
the
fillister
head
screw
55.
Remove
the
rotary
turn
switch
54
and
the
washer
53.
4.
Loosen
the
nut
50
and
the
grub
screw
51.
Draw
the
tone
-
arm
48
complete
with
bearing
57
from
the
bearing
race
52.
The
spring
housing
52
or
the
tonearm
48
may
now
be
changed.
Reassembly
involves
the
reverse
procedure.
Removal
of
tonearm
assembly
with
tonearm
bearing
We
recommend
the
following
procedure:
1.
Clamp
unit
in
the
repair
jig.
Set
the
rotary
knob
54
to
zero.
Lock
tonearm
48.
Remove
weight
49.
2.
Move
unit
into
head
position
and
remove
the
screening
plate
140.
Unsolder
the
tonearm
connections
on
the
muting
switch
137.
3.
Remove
lock
washer
184.
Lift
off
main
lever
183
and
bearing
support
182.
Remove
lock
washer
144.
Lift
off
setting
raie
141
and
rotary
bearing
143
and
turn
towards
motor
149.
4.
Unlock
tension
spring
209.
Loosen
lock
washer
212
and
remove
skating
lever
211.
5.
Remove
lock
washer
211
and
slide
bar
171.
Lift
off
shut-off
bar
161
from
segment
208
6.
Remove
hex
nut
170.
Remove
sink
screw
174.
Hold
tonearm
48
and
lift
off
counter
bearing
173
and
segment
208.
7.
Remove
tonearm
complete
with
tonearm
bearing.
Reverse
this
procedure
when
reassembling.
Please
bear
in
mind
the
threaded
pin
33
is
correctly
positioned
in
the
bell
bearing.
Adjusting
the
tonearm
bearing
First
balance
tonearm
exactly.
Both
bearings
must
have
slight,
just
perceptible
play.
The
horizontal
tonearm
bearing
is
correctly
adjusted
when
at
anti-skating
settings
"0.5"
and
being
touched
it
slides
in
without
resistance.
The
vertical
tonearm
bearing
is
correctly
adjusted
when
it
swings
in
after
being
touched.
The
play
of
the
horizontal
tonearm
bearing
should
be
adjusted
with
threaded
pin
33
and
mat
of
the
vertical
tonearm
bearing
with
threaded
pin
51.
Fitting
a
1/2
inch
cartridge
lt
a
cartridge
with
1/2
inch
standard
mount
is
to
be
fitted,
the
conversion
kit
31
Number
262
186
is
necessary.
The
proper
me-
thod
of
fitting
is
shown
in
fig.
8.
Also
the
decorative
cover
should
be
removed
from
the
counter-
weight
49
and
should
be
fitted
with
the
compensatory
weight
to
be
found
in
the
conversion
kit
31.
Any
alteration
can
only
be
carried
out
with
the
aid
of
a
Dual
-
Skate
-0
-Meter
and
a
test
record
and
should
only
be
done
by
an
authorized
service
station.
Anti-skating
Device
To
compensate
for
skating
force
use
the
knurled
ring
68.
The
asymmetric
cern
plate
displaces
the
skating
lever
216
from
the
tonearm
pivoting
point.
The
anti-skating
force
is
transmitted
to
the
segment
207
and
to
the
tonearm
48
by
tension
spring
208.
Optimum
adjustment
is
carried
out
at
the
works
for
styli
having
a
tip
radius
of
15µm
(conical),
5/6
and
18/22
/Im
(elliptical).
Any
alteration
can
only
be
carried
out
with
the
aid
of
a
Dual
-
Skate
-O
-Meter
and
a
test
record
and
should
only
be
done
by
an
authorized
service
Station.
6
