Dual DV735MB - Wiring Diagram and Notes; Input;Output Wiring Connections; Wiring Specific Notes

6

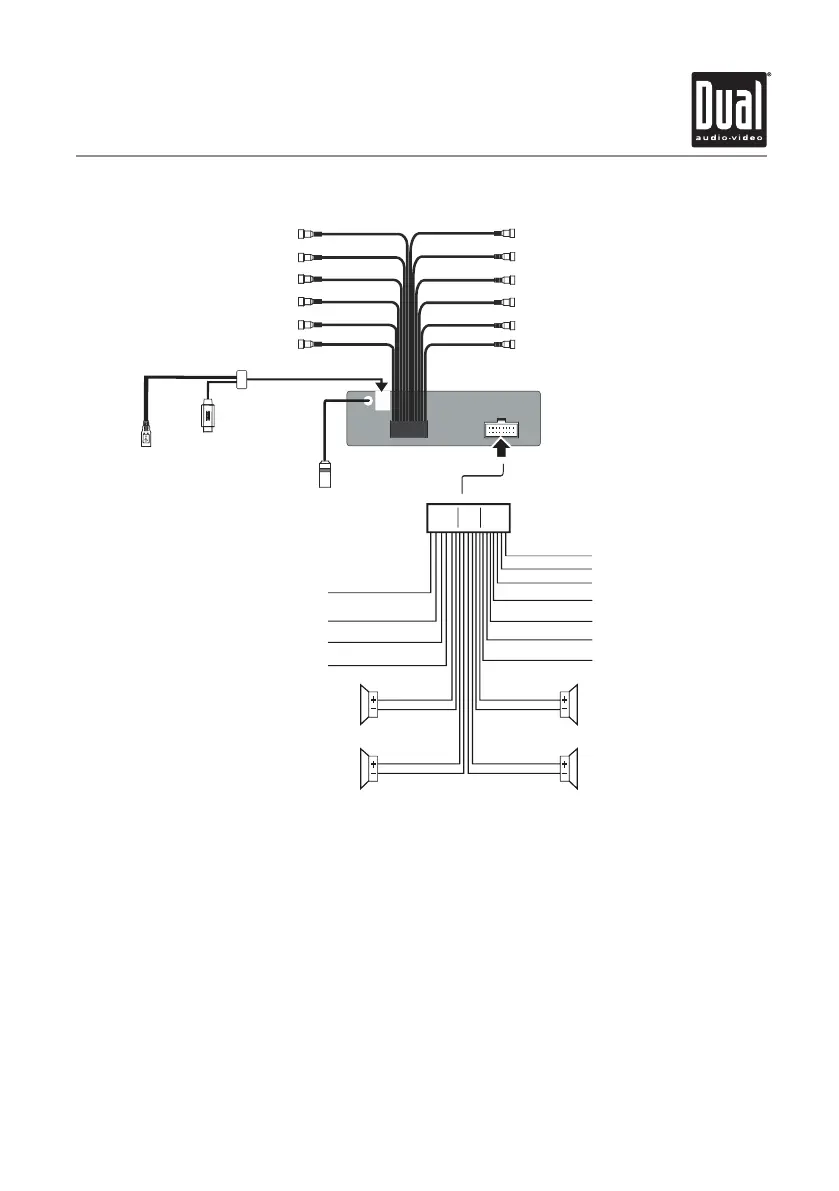

Wiring Diagram - Inputs/Outputs
DV735MB INSTALLATION
Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse
could cause damage. The unit uses (1) 15 amp ATM mini style fuse located inside the in-line filter box.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
RED
YELLOW
BLACK
BLUE
ACC
B+
GROUND
POWER ANTENNA
FRONT LEFT
CHANNEL SPEAKER
REAR LEFT
CHANNEL SPEAKER
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
SWC - GND (BLACK)
SWC - 1 (BROWN)
SWC - 2 (BROWN/BLACK)
REVERSE
(B-) PARKING BRAKE
ILLUMINATION
REMOTE TURN-ON
FRONT RIGHT
CHANNEL SPEAKER
REAR RIGHT
CHANNEL SPEAKER
ORANGE
PINK
ORANGE / BLACK
BLUE / BLACK
GREY
GREY / BLACK
VILOET
VILOET/BLACK
RL OUTPUT
RR OUTPUT
FL OUTPUT
FR OUTPUT
SUBWOOFER
SUBWOOFER
VIDEO OUTPUT
VIDEO OUTPUT
REAR CAMERA INPUT
AU INPUT L
AU INPUT R
VIDEO INPUT
RADIO ANTENNA
HDMI
D M I
USB I

(C O)
