3. Variable rear rubber suspension system (patent pending) adjustment
Designed by MINI Motors, 5-step adjustable rubber suspension system allows you to adjust the
suspension strength with rubber cartridge replacement (5 steps).

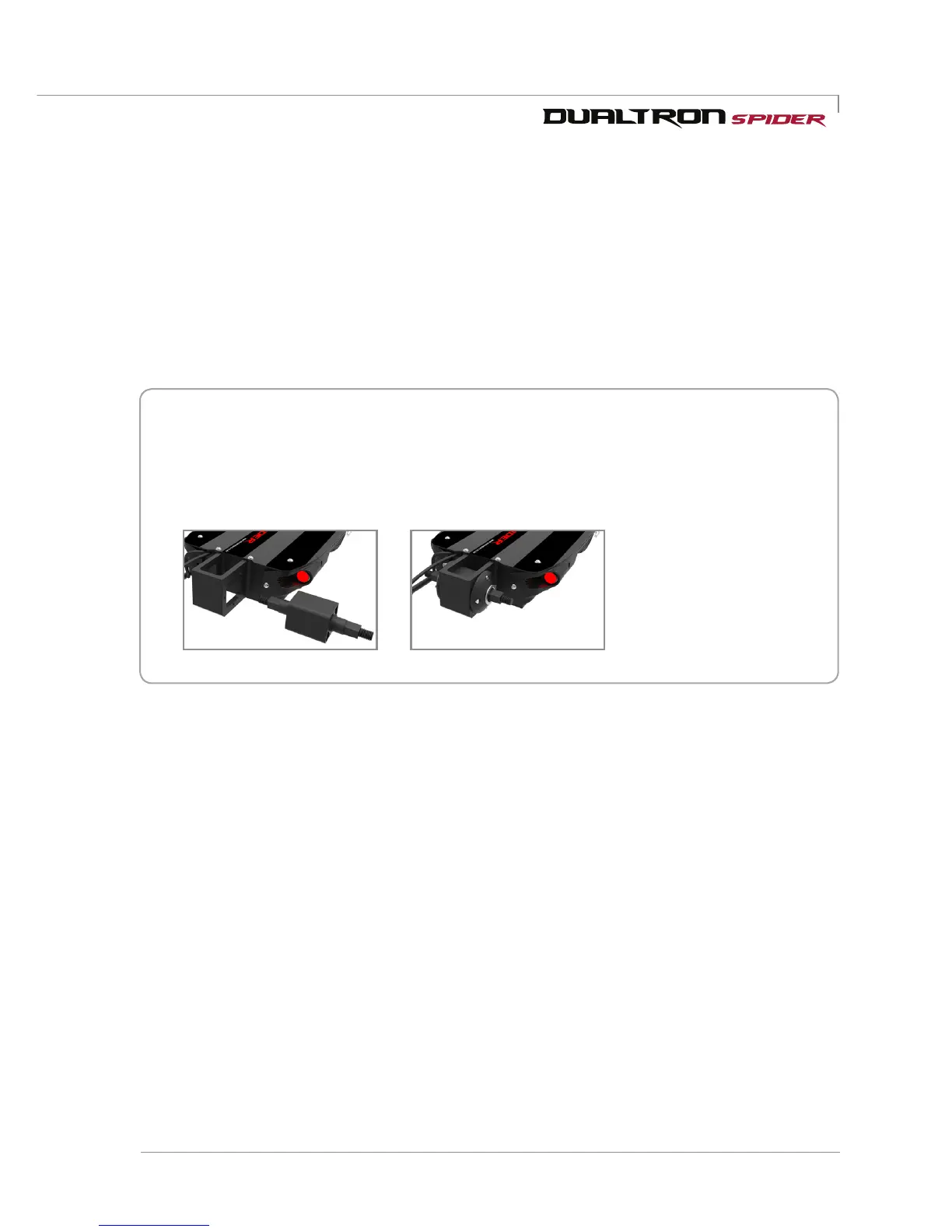

1. Remove the rear fender with a 3mm hex wrench,loosen the 12mm(motor sider),12mm(swing arm
side) nut, and then loosen the nut to remove the suspension arm.
2. Adjust the rubber cartridge replacement, and desired suspension strength.
■
Rubber Replacement (5th Stage): Replace Cartridge (Adjust height by weight)
Loosen both nuts with a wrench, loosen 3mm bolts and remove. Replace the cartridge
when it is missing.
(It can be changed depending on weight and taste)
3. Align both suspension arms to the desired angle and reassemble using Loctite (screw lock).
