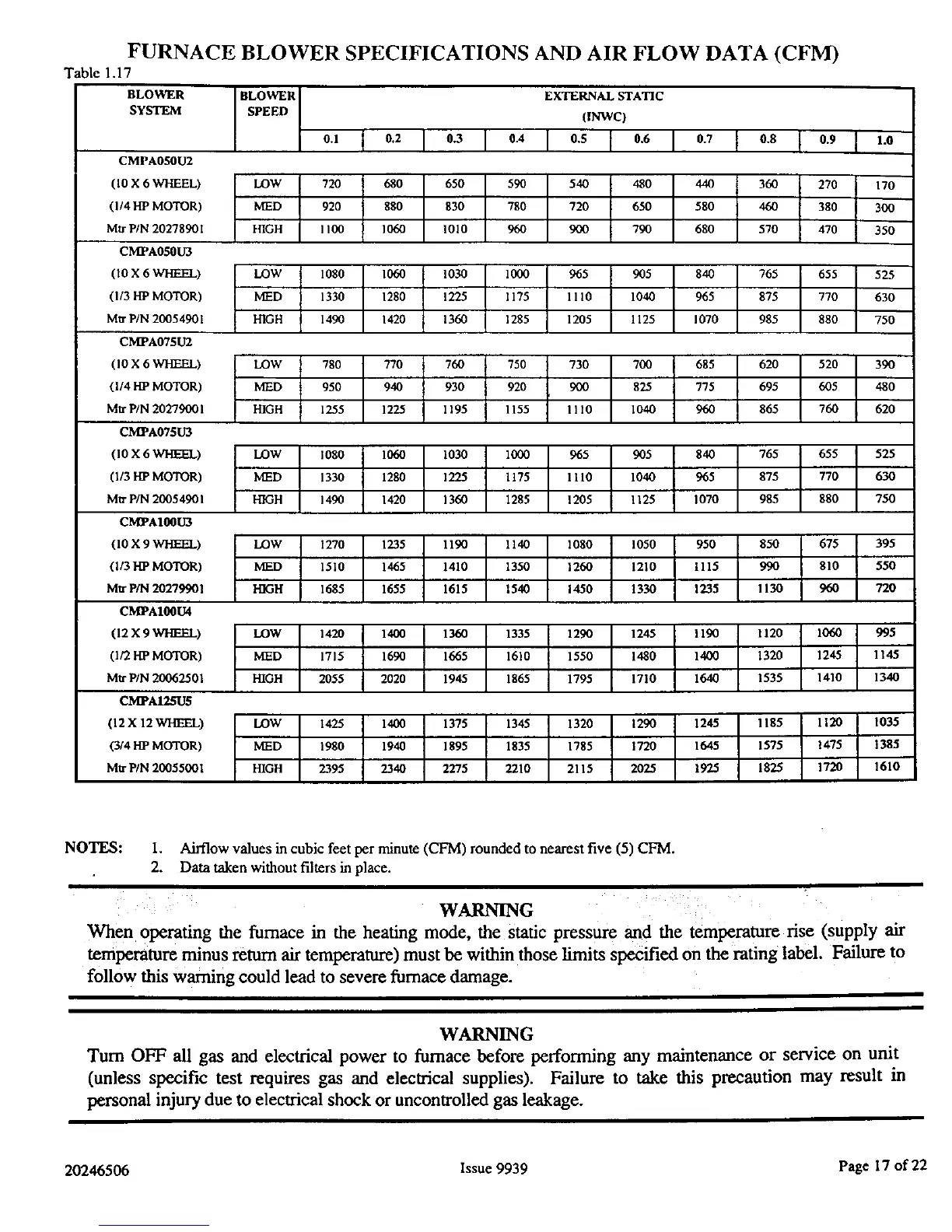

FURNACE BLOWER SPECIFICATIONS AND AIR FLOW DATA (CFM)
Table 1.17
BLOWER
SYSTEM
BLOWER EXTERNAL STATIC
SPEED (INWC)
0.1 I 0.2 I 0.3 I 0.4 I 0.5 I 0.6 I 0.7 [ 0.8 t 0.9 I 1.0
CMPA050U2
(10 X 6 WHEEL) LOW 720 680 650 590 540 480 440 360 270 170
( 1/4 HP MOTOR) IVIED 920 880 830 780 720 650 580 460 380 304)
Mtr PIN 20278901 HIGH 1100 1060 1010 960 900 790 680 570 470 350
CMPA050U3
(10 X 6 WHEEL) LOW 1080 1060 1030 1000 965 905 840 765 655 525
(1/3 lip MOTOR) IVIED 1330 1280 1225 1175 1110 1040 965 875 770 630
Mtr PtN 20054901 HIGH 14_) 1420 1360 1285 1205 1125 1070 985 880 750
CMPA075U2
(10 X 6 WHEEL) LOW 780 770 760 750 730 700 685 620 520 390
(1/4 lIP MOTOR) IVIED 950 940 930 920 900 825 775 695 605 480
Mtr P/N 20279001 HIGH 1255 1225 1195 1155 1110 1040 960 865 760 620
CM]PA07SU3
(10 X 6 WHEEL) LOW 1080 1060 1030 10G0 965 905 840 765 655 525
(1/3 FIP MOTOR) MED 1330 1280 1225 1175 1110 1040 965 875 770 630
Mtr PIN 20054901 HIGH 1490 1420 1360 1285 1205 I 125 1070 985 880 750
CMPA100U3
(10 X 9 WHEEL) LOW 1270 1235 1190 1140 1080 1050 950 850 675 395
(1/3 HP MOTOR) IVIED 1510 1465 1410 1350 1260 1210 1115 990 810 550
Mtr PIN 20279901 HIGH 1685 1655 1615 1540 1450 1330 1235 1130 960 720
CM]PA100U4
(12 X 9 WHEEL) LOW 1420 1400 1360 1335 1290 1245 1190 1120 1060 995
(1/2 HP MOTOR) IVIED 1715 1690 1665 1610 1550 1480 1400 1320 1245 1145
Mtr PIN 20062501 HIGH 2055 2020 1945 1865 1795 1710 1640 1535 1410 1340
CMPAI25U5
(12 X 12 WHEEL) LOW 1425 1400 1375 1345 1320 1290 1245 1185 1120 1035
(3/4 HP MOTOR) IVIED 1980 1940 1895 1835 1785 1720 1645 1575 !475 1385
Mtr PIN 20055001 HIGH 2395 2340 2275 2210 2115 2025 1925 1825 1720 1610
NOTES: 1. Airflow values in cubic feet per minute (CFM) rounded to nearest five (5) CFM.
2. Data taken without filters in place.
WARNING
When operating the furnace in the heating mode, the Static pressure and the temperature rise (supply air
temperature minus return air temperature) must be within those limits specified on the rating
label. Failure to
follow this warning could lead to severe furnace damage.
WARNING
Turn OFF all gas and electrical power to furnace before performing any maintenance or service on unit
(unless specific test requires gas and electrical supplies). Failure to take this precaution may result in
personal injury due to electrical shock or uncontrolled gas leakage.
20246506 Issue 9939 Page 17 of 22
