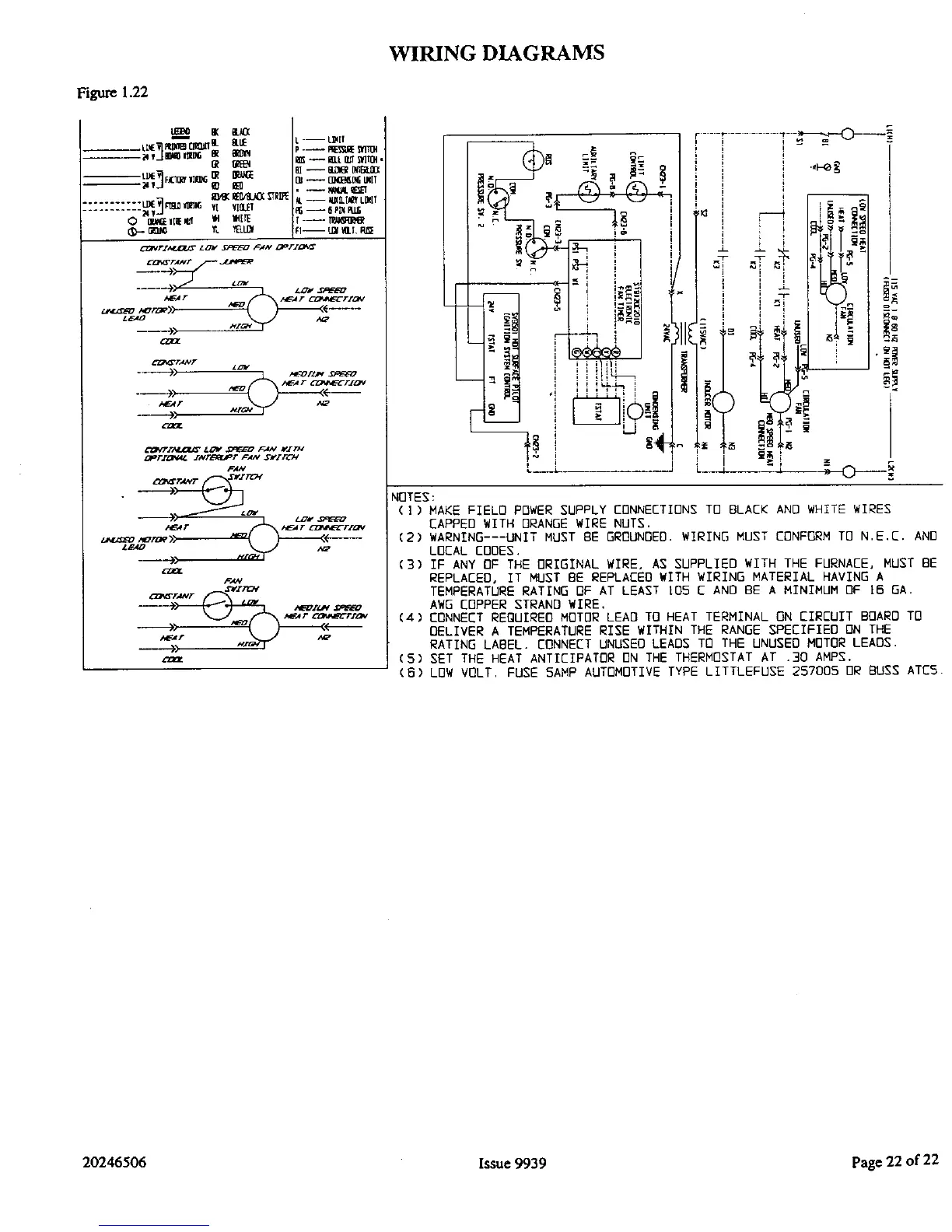

WIRING DIAGRAMS
Figure 1.22
L_Be 8( &_
@ _
--tl_E ¥ F
-'"'"2V22-'_:_ vl VI&e'T
L --- L_[T
_S -- I_LLILffSvIt04,
CI_G'TA,VF
_A+V
Z_AO A_
F_,!
F--_.............T-----_'r_--_
, I
-_ ,s_ _ _ /i_/ / / L _T'S_ _
rE i ':
, , I i ! - , - _ _
NOTES:
(I) MAKE FIELD POWER SUPPLY CONNECTIONS TO BLACK AND WHITE WIRES
CAPPEO WITH ORANGE WIRE NUTS.
(2) WARNING---UNIT MUST BE GROUNDED. WIRING MUST CONFORM TO N.E,C. AND
LOCAL EOOES.
(3) IF ANY OF THE ORIGINAL WIRE, AS SUPPLIED WITH THE FURNACE, MUST BE
REPLACEO, IT MUST 8E REPLACED WITH WIRING MATERIAL HAVING A
TEMPERATURE RATING OF AT LEAST 105 C AND BE A MINIMUM OF 15 GA.
AWG COPPER STRAND WIRE,
(4) CONNECT REOUIREO MOTOR LEAD TO HEAT TERMINAL ON CIRCUIT BOARD TO
OELIVER A TEMPERATURE RISE WITHIN THE RANGE SPECIFIEO ON THE
RATING LABEL, CONNECT UNUSEO LEADS TO THE UNUSEO MOTOR LEADS.
(5) SET THE HEAT ANTICIPATOR ON THE THERMOSTAT AT .30 AMPS,
(6) L0W VOLT. FUSE 5AMP AUTOMOTIVE TYPE LITTLEFUSE 257005 OR BUSS ATE5.
20246506 Issue 9939 Page 22 of 22
