Ducane RGE13 - Dimensions

RCE13 Package Gas / Electric
- Page 5 -

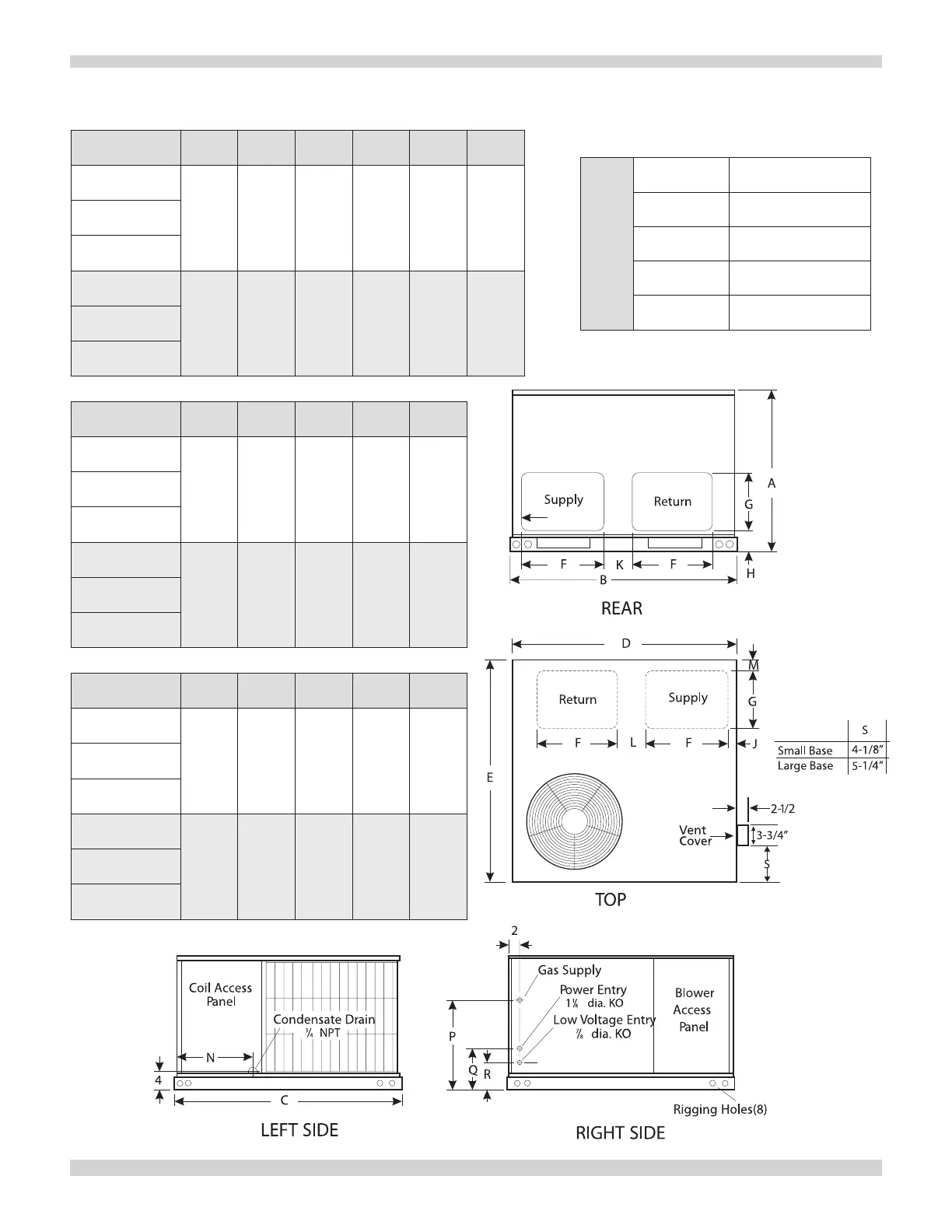

Dimensions(in.)
Model No. A B C D E F
RGE13-24
32-1/2 46-1/2 46-1/2 45-5/8 45-5/8 17-1/2RGE13-30
RGE13-36
RGE13-42
34-1/2 55-1/2 50-1/2 54-5/8 49-5/8 21-1/2RGE13-48
RGE13-60
Model No. G H J K L
RGE13-24
11-1/2 5-1/2 1-5/8 4 4RGE13-30
RGE13-36
RGE13-42
12 5-1/2 1-5/8 6-1/4 5-5/8RGE13-48
RGE13-60
Model No. M N P Q R
RGE13-24
1-3/4 15-5/8 20-1/2 9-7/8 9-3/8RGE13-30
RGE13-36
RGE13-42
2-3/8 17-1/8 20-3/4 10-3/8 6RGE13-48
RGE13-60
Minimumclearancesto
combustiblematerial
Front 24"
Left Side 12"
Right Side 15"
Back 2"
Above 48"
