Headlamp fairing

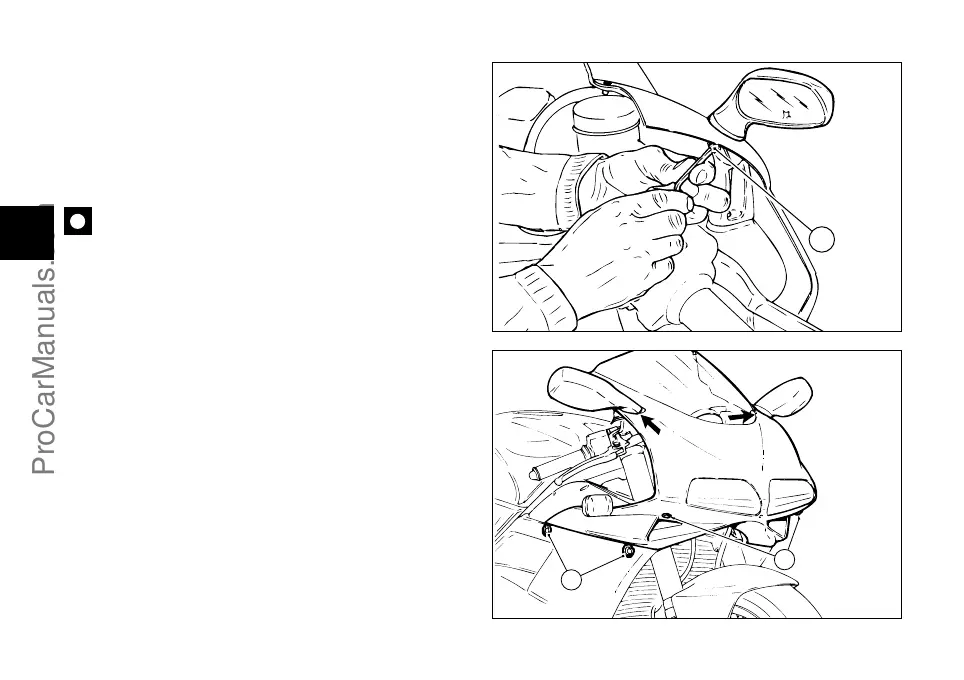

Undo the middle fastening screw (1, fig. 26.1) of the
wing mirrors and remove them from the headlamp fairing
supports.
Undo the two fastening screws (2) of the headlight
support and disconnect the four connectors (3) joining
the two body panels together.
Important
At reassembly, apply “medium-strength
threadlocker” onto the screw threading (1).
fig. 26.1
fig. 26.2
