Reassembly:
insert the locating pegs of the bulb base into their seats
to obtain correct alignment.
Hook the clip (4, fig. 35.2) to the headlamp holders;
reconnect the cables and refit the rubber cover (1, fig.
35.2).
To change the two parking light bulbs, the headlamp
fairing must be removed first (see page 38).
Undo the horn fastening screw and remove the horn.
Pull out the bulb holders (5, fig 35.3) from the rim-
reflector assembly.
Remove the bulb and fit a new one.

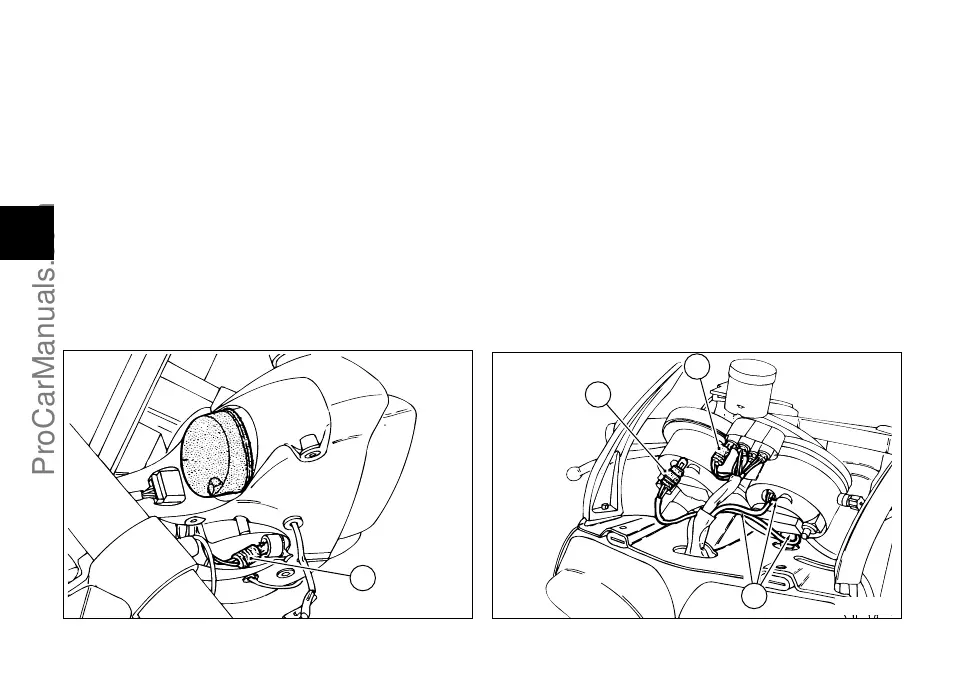

fig. 36
Instrument panel (fig. 36)
Remove the headlamp fairing (see page 38) to reach the
instrument panel bulbs.
One or two lamps are fitted under each instrument. Pull
out the bulb holder (1) under the instrument involved,
remove the bulb and fit a new one.
