Ducati 998 - Rear Brake Pedal Operation; Gear Change Pedal Mechanism

17
E

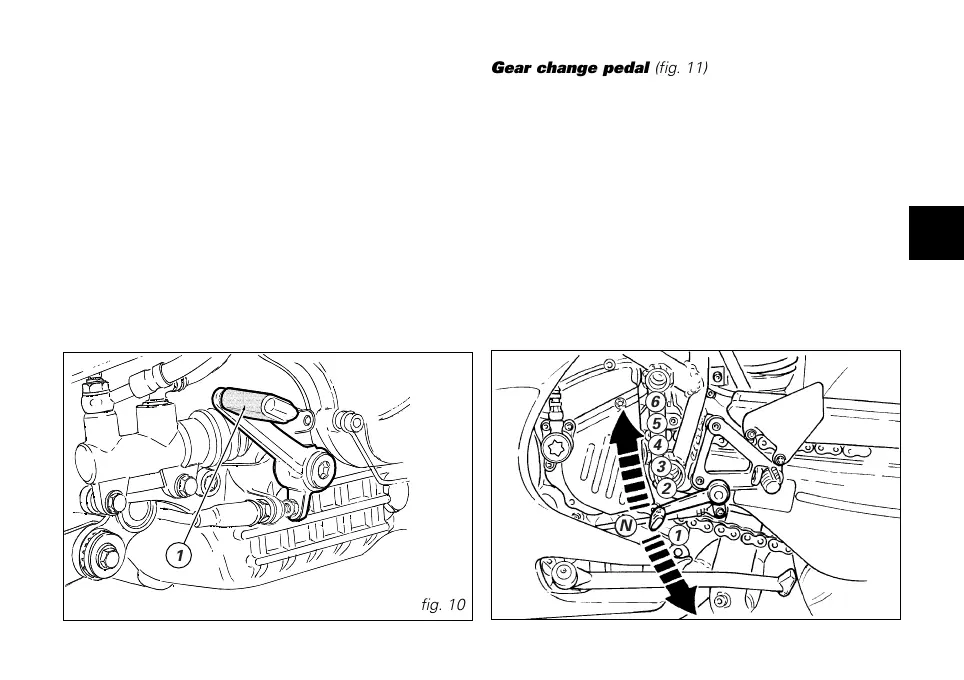

Rear brake pedal (fig. 10)
Push down on the pedal (1) with your foot to operate the
rear brake.
The system is hydraulically operated.
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
;;;;;;;
1
fig. 10
1
N
2
3
4
5
6
Gear change pedal (fig. 11)
The gear change pedal is at rest when in the central
position N, is moved up and down to change gears and
then returns to the central position.
down = push down on the pedal to engage 1
st
gear and
to shift down. The N light will go out.
up = lift the pedal to engage the 2
nd
gear and then the 3
rd
,
4
th
, 5
th
and 6
th
gear. Each time you move the pedal you will
engage the next gear.
fig. 11
