Ducati FUTA - TIGHTENING TORQUES

51
EN
Use and maintenance manual

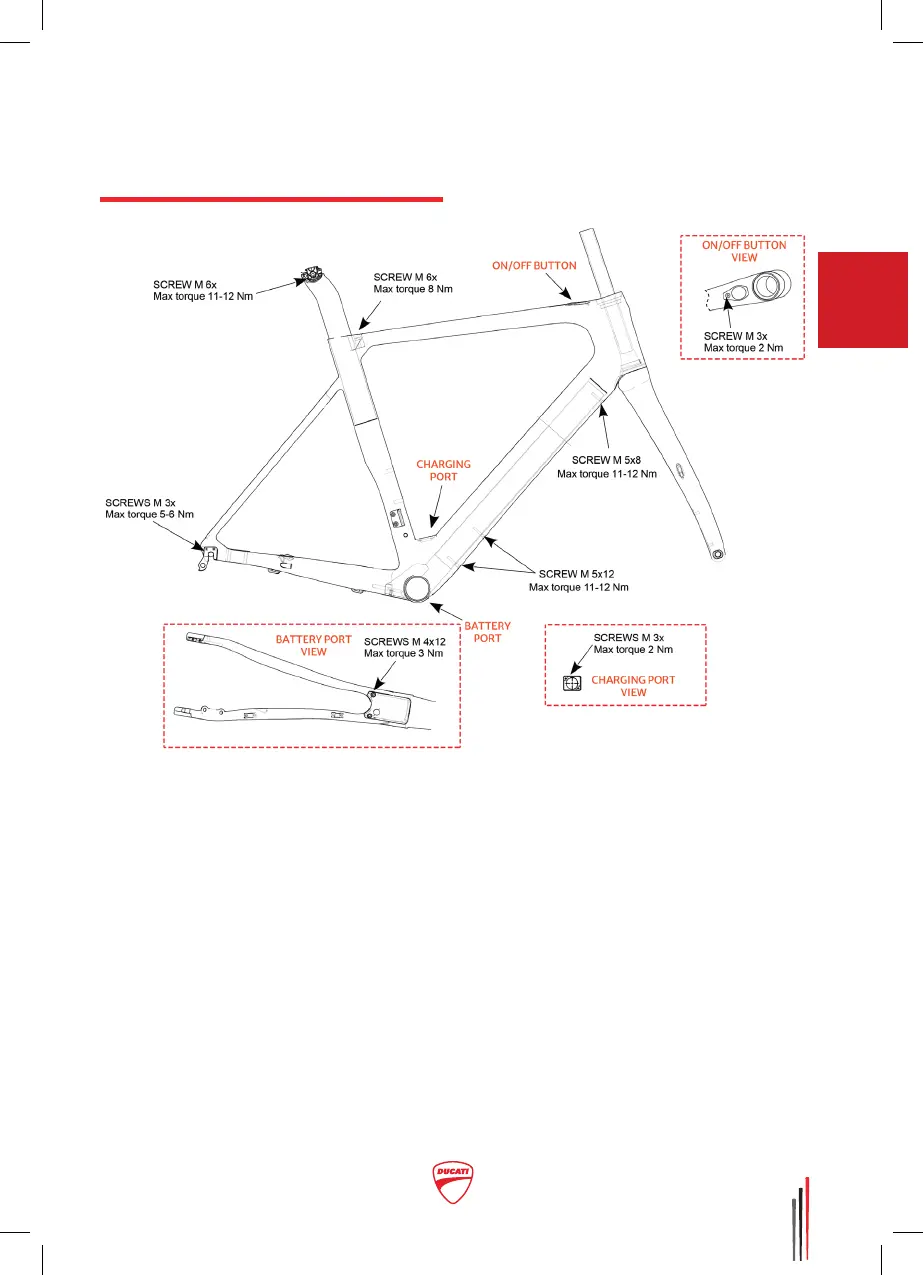

TIGHTENING TORQUES
•Saddle clamp:
M6 screws
11-12 Nm tightening
•Seatpost collar:
M6 screws
8 Nm tightening
•Gearshift support dropout:
M3 screws
11-12 Nm tightening
•Battery port:
M4x12mm screws
3 Nm tightening
•Charging port:
Vite M3
serraggio a 2 Nm
•ON/OFF button:
M3 button
2 Nm tightening
•Battery support lower screw:
M5x12mm screws
11-12 Nm tightening
•Battery support top screw:
M5x8mm screws
11-12 Nm tightening
