Procedure for adjusting low beam/high beam
along the vertical axis
1) Switch low/high beam on.
2) Completely cover one of the two beams
3) Adjust uncovered beam vertically by working the
corresponding adjuster screw (1), i.e., the one on
the same side. Turn screw (1) clockwise to move
beam down, or counter clockwise to move beam
up.
4) Cover the already-set beam and uncover the
other one.
5) Adjust uncovered beam vertically by working the
corresponding adjuster screw (1), i.e., the one on
the same side. Turn screw (1) clockwise to move
beam down, or counter clockwise to move beam
up.

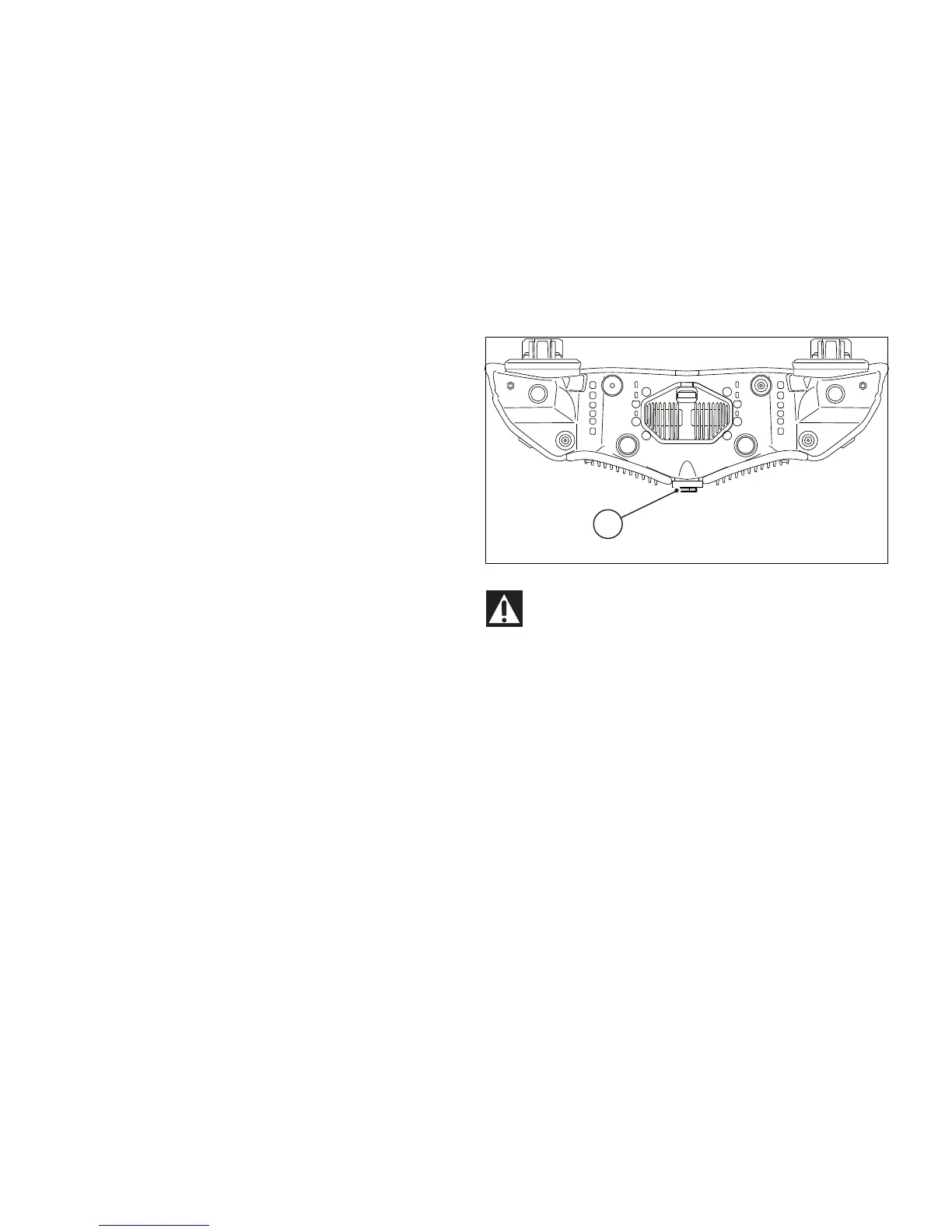

Fig. 271
Warning
The headlight might fog up if the motorcycle is
used under the rain or after washing. Switch
headlight on for a short time to dry up any
condensate.
