Arctic Rush

Models 145, 145RH and 816C

184674-01

Use only original or authorized replacement parts with this freezer.

Item Part No. Description

HC112843 Bearing-Assy. Complete Rear (includes HC112844 &

HC112862)

HC112844 Sheave-Assy. Driven & Quill (includes 1, 1A, 2)

1 HC153615 Sheave-Driven

1A HC160033 Screw-SK Set 5/16-18 x 3/8 BKOX

2 HC112842 Quill-Assy. Drive w/ Key

3 HC112862 Bearing-Assy. Rear

3A HC130189 Spacer-Rear Bearing

3B HC153013 Bearing-Drive Quill (w/Lock ring)

3C HC153127 Plate-Retainer, Bearing

3D HC153128 Stamping-Bearing Base

3E HC160143 Washer-Lock 3/8 ZN

3F HC160407 Bolt-Carriage 3/8-16 x 3-1/4 ZN

3G HC160453 Nut-Hex 3/8-16 ZN

6B HC160132 Washer-Flat 3/8 ZN

4A HC153126 Ring-Bearing Lock (only)

Not Shown:

HC115681 Bar-Alignment (Loaner)

(used to align bearings to cylinder)

HC115681-01 Bar-Alignment (Purchase)

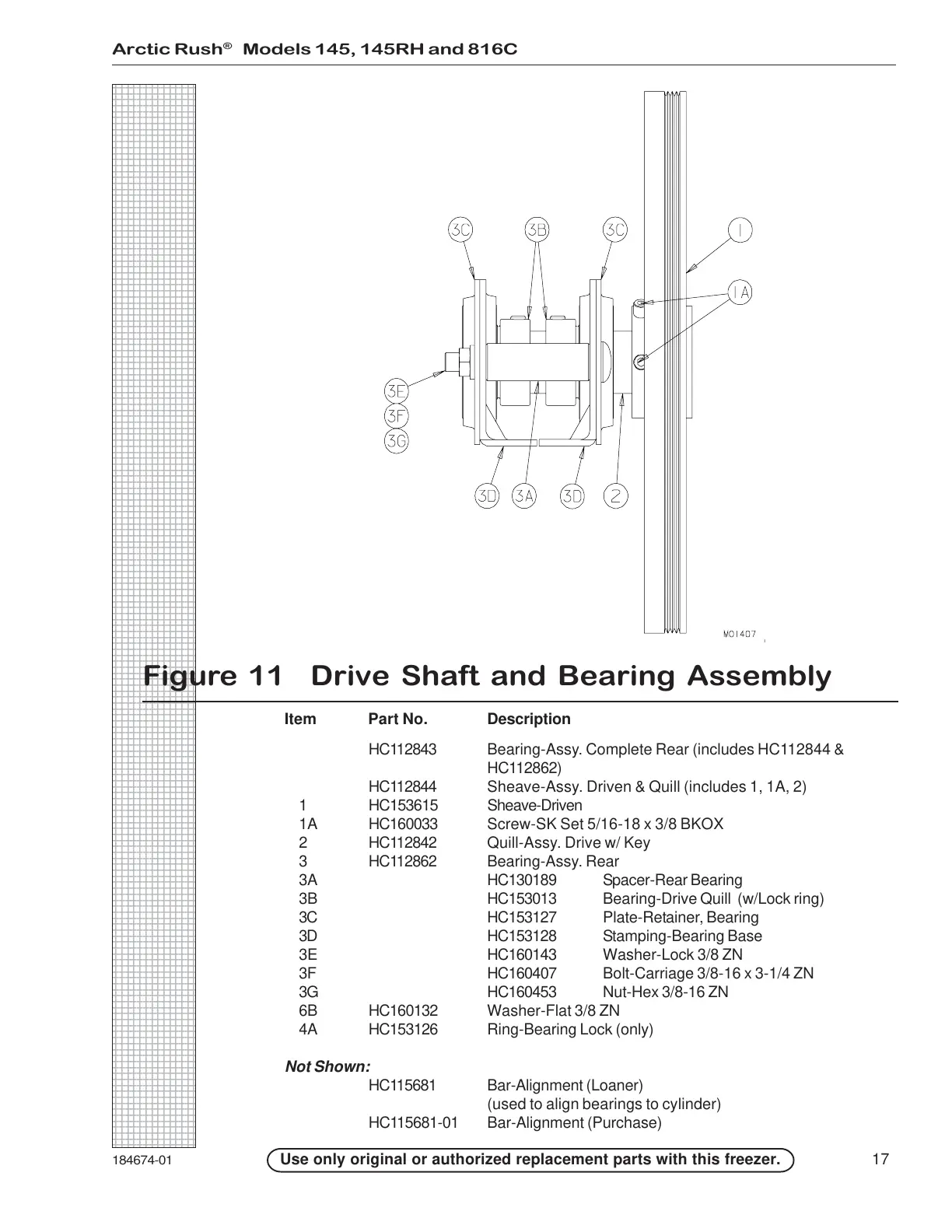

Figure 11 Drive Shaft and Bearing Assembly
