INSTALLING LOGS
MODEL FVFLC18
-
2
1. Insert log #1 onto shelf at rear of grate.
The features at bottom will locate log.
2. Insert log #2 into slot in middle log bracket.
3. Insert log #3 into area between front log
bracket and grate ngers.
4. Place log #4 into notches on logs #1,#2
and #3, to the left side of logs.
5. Place log #5 on over the right side of logs
#1, #2 and #3. Make sure it is placed into
the notches
6. Place log #6 onto logs #2 and #4. Make
sure it is placed into the notches and
positioned as shown below.
7. Place log #7 into notches on logs #3 and
#5, as shown below.

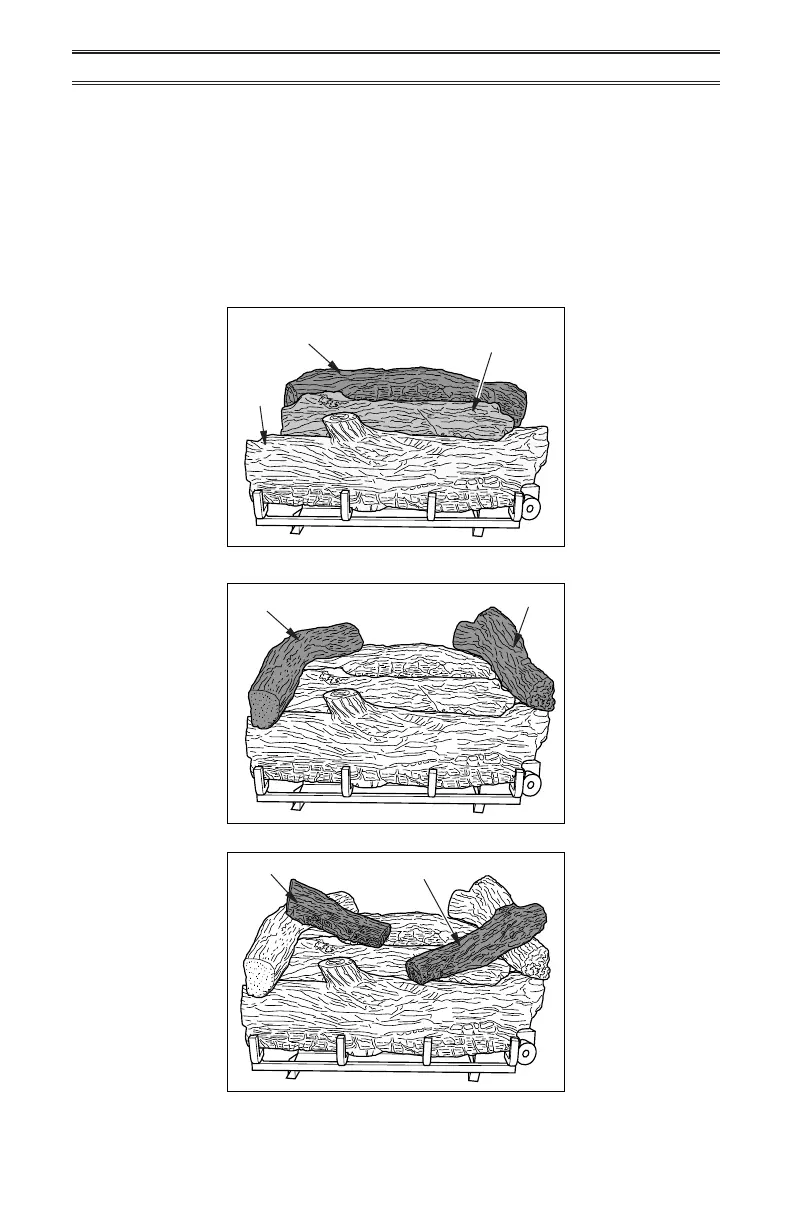

Log #1
Log #5
Log #7
Log #6
Log #2
Log #4
Log #3
