Farmscan Jackal v3 Settings Setup
Refer to the manual supplied with your Farmscan Jackal kit for information and operation.
Farmscan Jackal v3 Factory Setup for Enviro 740
Refer to pages 6,9,11 of the Farmscan Jackal v3 manual.
Input 2 -Two wire ‘reed’ sensor for ‘Area/Speed Wheel’
measurement taken from shaft on drive pedestal.
The white ‘signal’ lead is connected to input A2.
Refer to the Farmscan manual if you want to make additional sensor connections.
It is advisable, as with all things electronic, to have a backup of your totals. We suggest you record
these on a daily basis in a notebook or diary.
Input 2 Edit
m/pulse
Auto Set:
Target:0.000m
Meas.pulses: 0
Manual Ratio:
2.817000
NEXT EDIT
Other Settings
Implement Width:
x.xxx m
Extern.Run/Hold:
Disabled
Alarm Beep:2
NEXT EDIT

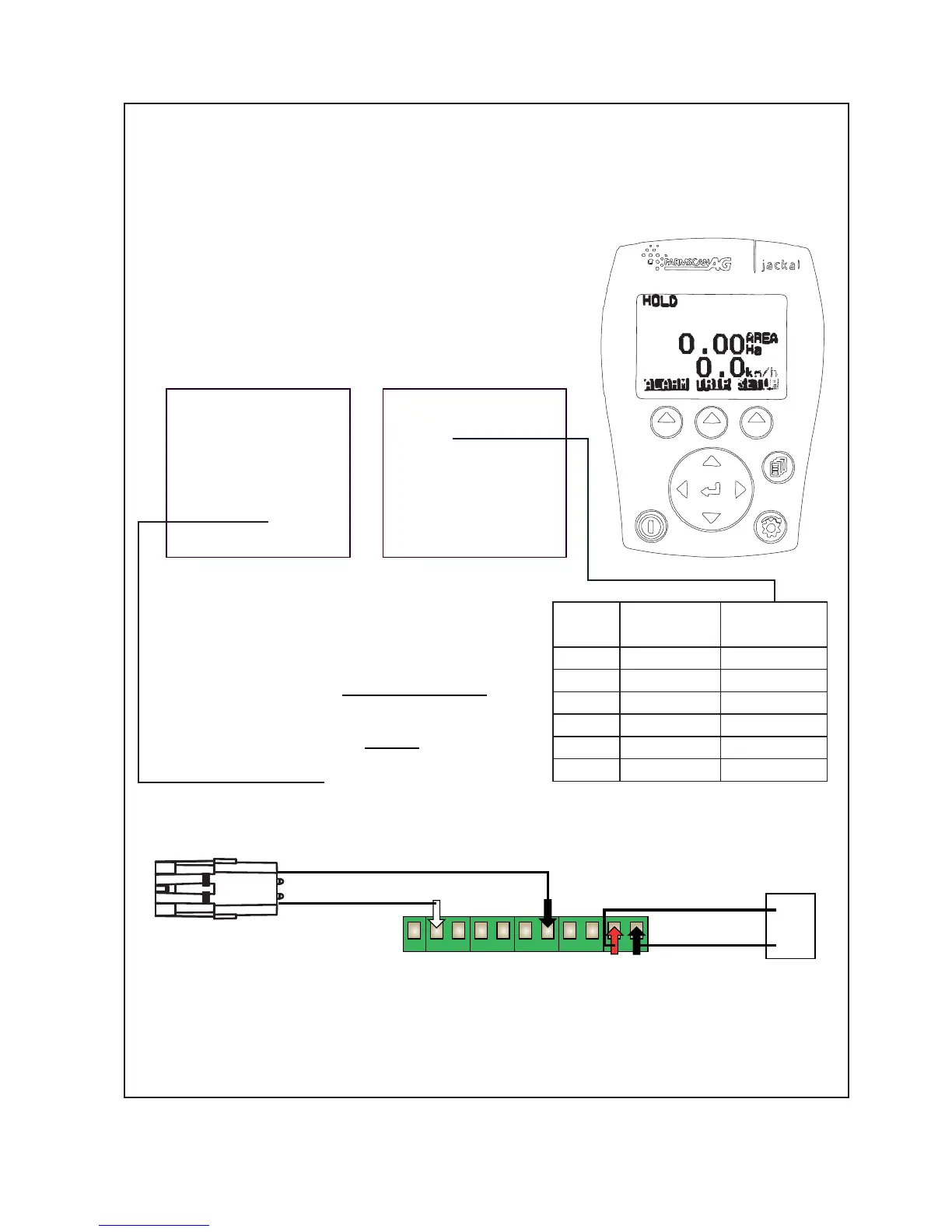

A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11
1 Gnd
A2 Signal
Connect to Pedestal Shaft
2 Wire Sensor via extension
cable.
Connect directly
to Tractor Battery
+12v
0v
red
black
white
black
Machine
Size
Row Spacing
(mm)
Sowing Width
(m)
15 Run 150 2.25
17 Run 130 2.21
19 Run 150 2.85
21 Run 135 2.84
23 Run 150 3.45
26 Run 130 3.38
Rolling Circumference of 12 ply Tyre = 3.708m
See page 20 for directions on how to obtain
an accurate measurement for the tyre fitted
to your machine.
The ‘drive ratio’ is always 1.316
Manual Ratio =
Circumference of Tyre
Drive Ratio
=
3.708 m
1.316
= 2.817m
To Next Page
