Maintenance
Your new Duncan ‘Enviro’ Drill will give long and efficient
service if given normal care and maintained properly.
1
1
2
3
3
4 9
10
4
4
5
6
6
8
7

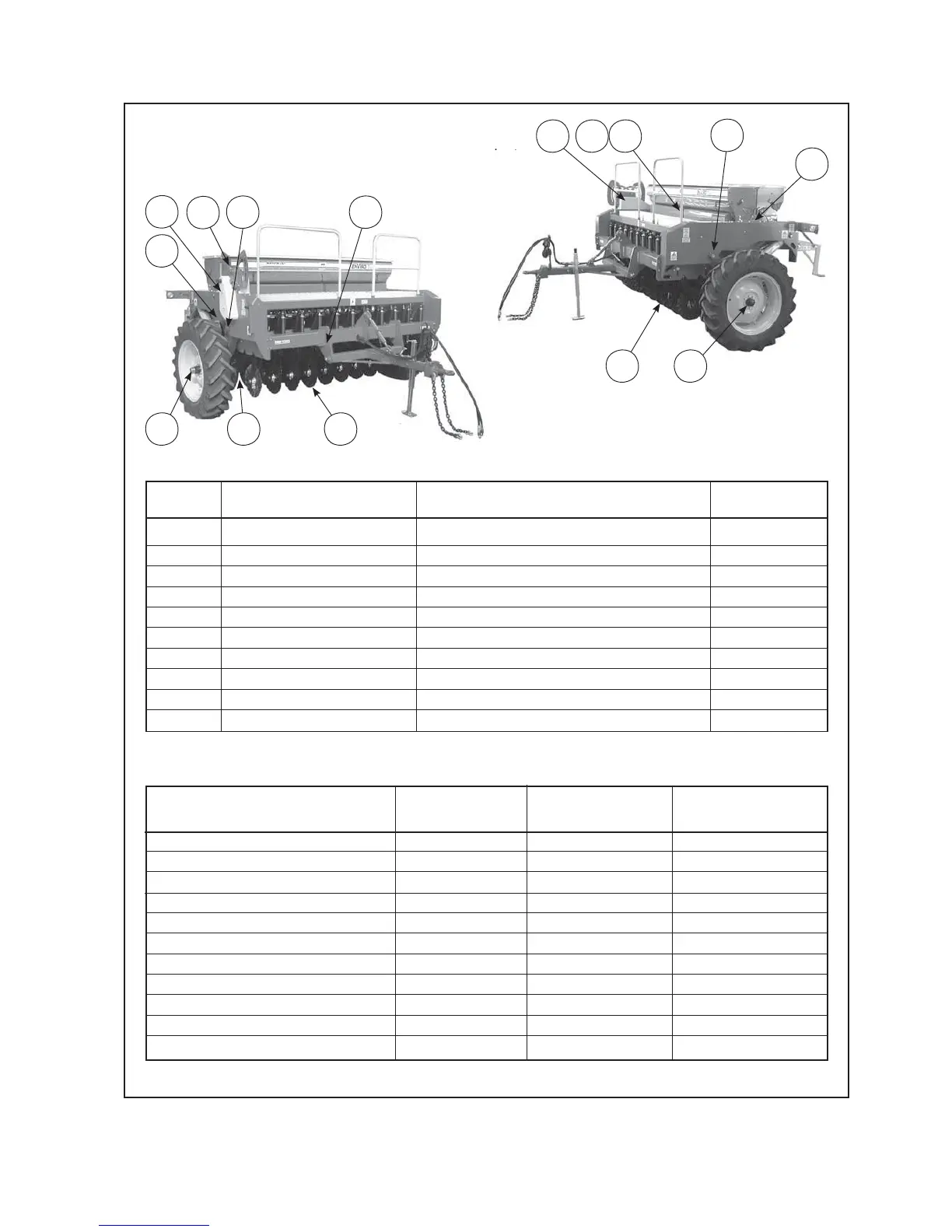

fig 32
Item Components Lubricant *Frequency
1 Wheel Bearings Castrol LMX Grease Annually
2 Gearbox Castrol Hyspin AWH 32/68 Oil (1.25 Litres) Maintain Level
3 Wheel Arm Pivots S.K.F. LGEM2 Grease or Equivalent Weekly
4 Drive Chains Suitable Roller Chain Lubricant 6 Monthly
5 Coulter Pivot Pins S.K.F. LGEM2 Grease or Equivalent Weekly
6 Front Disc Bearings (Pre-packed & Sealed) Not Required
7 Double Disc Bearings (Pre-packed & Sealed) Not Required
8 Drive Shafts (Side Frame) (Pre-packed & Sealed) Not Required
9 Agitator Shaft Nylon Bushes Not Required
10 Seeder Shafts Nylon Supports Not Required
* The lubrication frequencies are only a guide. Actual frequency will be dependent on extent of use and ground conditions.
Components Daily Weekly Pre Season
(or after 20Ha) (or after 100Ha) (or 1000 Ha)
Coulters & Double Discs • • •
Press Wheels • • •
Seeders/Agitators/Bottom Flaps • • •
Wheel Nuts • •
Pivot Pin Fasteners • •
Coupling & Safety Chains • •
Roller Chains • •
Gearbox/Clutch • •
Hydraulics (Oil Leaks) • •
Tyre Pressures (25psi / 1.8bar) • •
Bolted Connections •
Precautions with Grease
Greases should not be mixed as the structure may be
weakened by the mixing of different types of thickener
which may cause softening and loss of grease from
bearings by running out.
Lubrication Chart
Maintenance Schedule
