‘Enviro’ Seed Drill Hydraulics
34
5
14
15
7
10 11

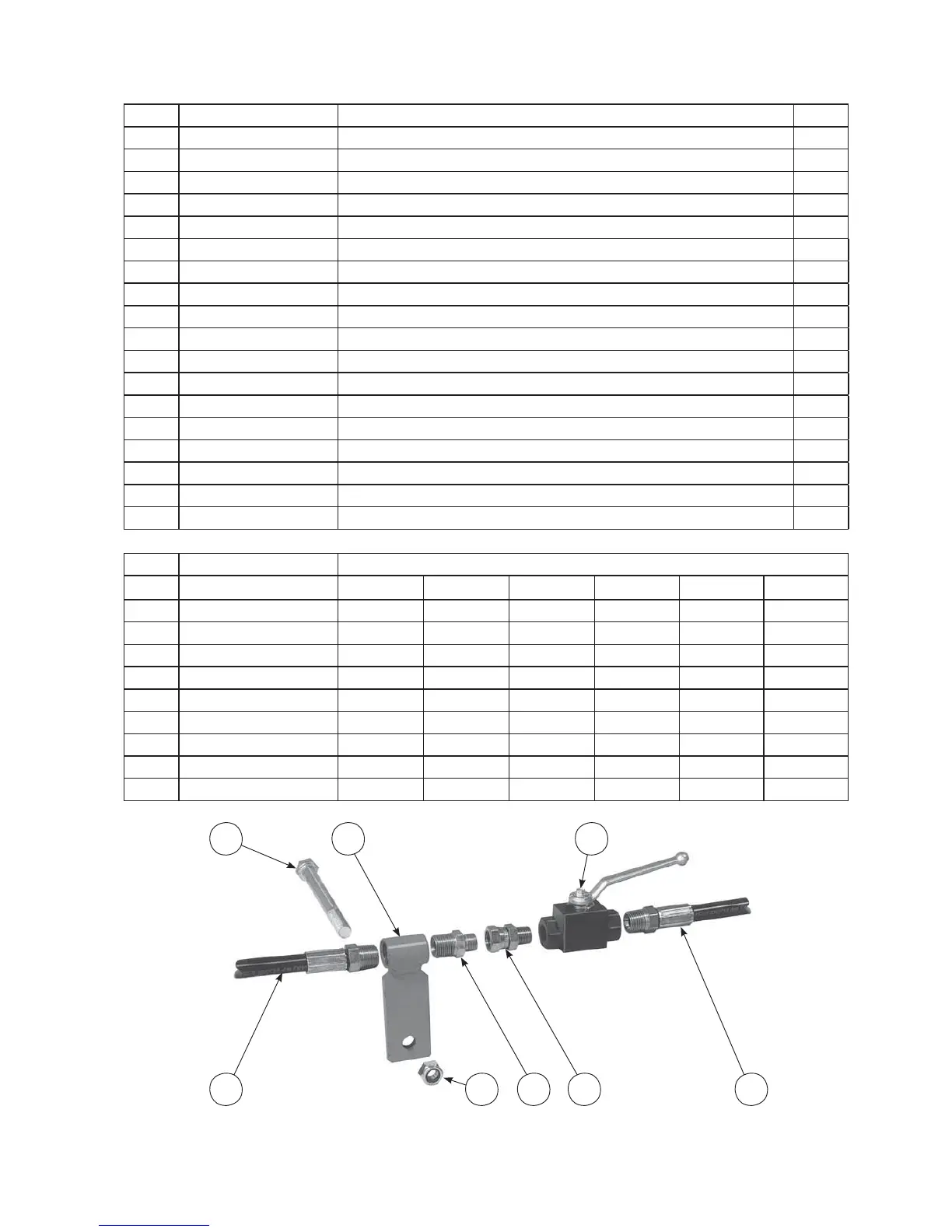

ITEM PART No. DESCRIPTION QTY
1 43935 4” x 12” Master Rephasing Ram 1
2 43936 3.75” x 12” Slave Rephasing Ram 1
3 43393 Stainless Steel Ball Valve 3/8” BSP 1
4 22449 Hydraulic Valve Support Assembly 1
5 22447 Hydraulic Hose 1.70m 1
6 Refer Below Hydraulic hose 1
7 Refer Below Hydraulic hose 1
8 Refer Below Hydraulic hose 1
9 43147 1/2” BSP Male Quick Release Coupling 2
10 43445 1/2” BSPP to 3/8” BSPP Nipple 1
11 43399 3/8” BSPP Male/Female Swivel 1
12 43617 Male Probe Dust Cover 2
13 43496 3/4” UN’O’ to 3/8” BSPT Elbow 4
14 45035 M12 x140 Class 8.8 Zinc Plated Bolt 1
15 45139 M12 Nylock Nut 1
16 43434 Hydraulic Hose Clamp 6
17 45412S M8 x 25 Class 4.6 Zinc Plated Set Screw 6
18 45137 M8 Nylock Nut 6
ITEM PART No. HOSE LENGTH
15 Run 17 Run 19 Run 21 Run 23 Run 26 Run
6 22454 3.15m 3.15m - - - -
“ 22460 - - 3.75m 3.75m - -
“ 22482 - - - - 4.35m 4.35m
7 22453 4.20m 4.20m - - - -
“ 22459 - - 4.50m 4.50m - -
“ 22481 - - - - 4.80m 4.80m
8 22455 6.20m 6.20m - - - -
“ 22461 - - 6.50m 6.50m - -
“ 22483 - - - - 6.80m 6.80m
To Next Page
