25
Pt. No. 67394
Issue 1121
‘Enviro DD30’ Jackal Areameter

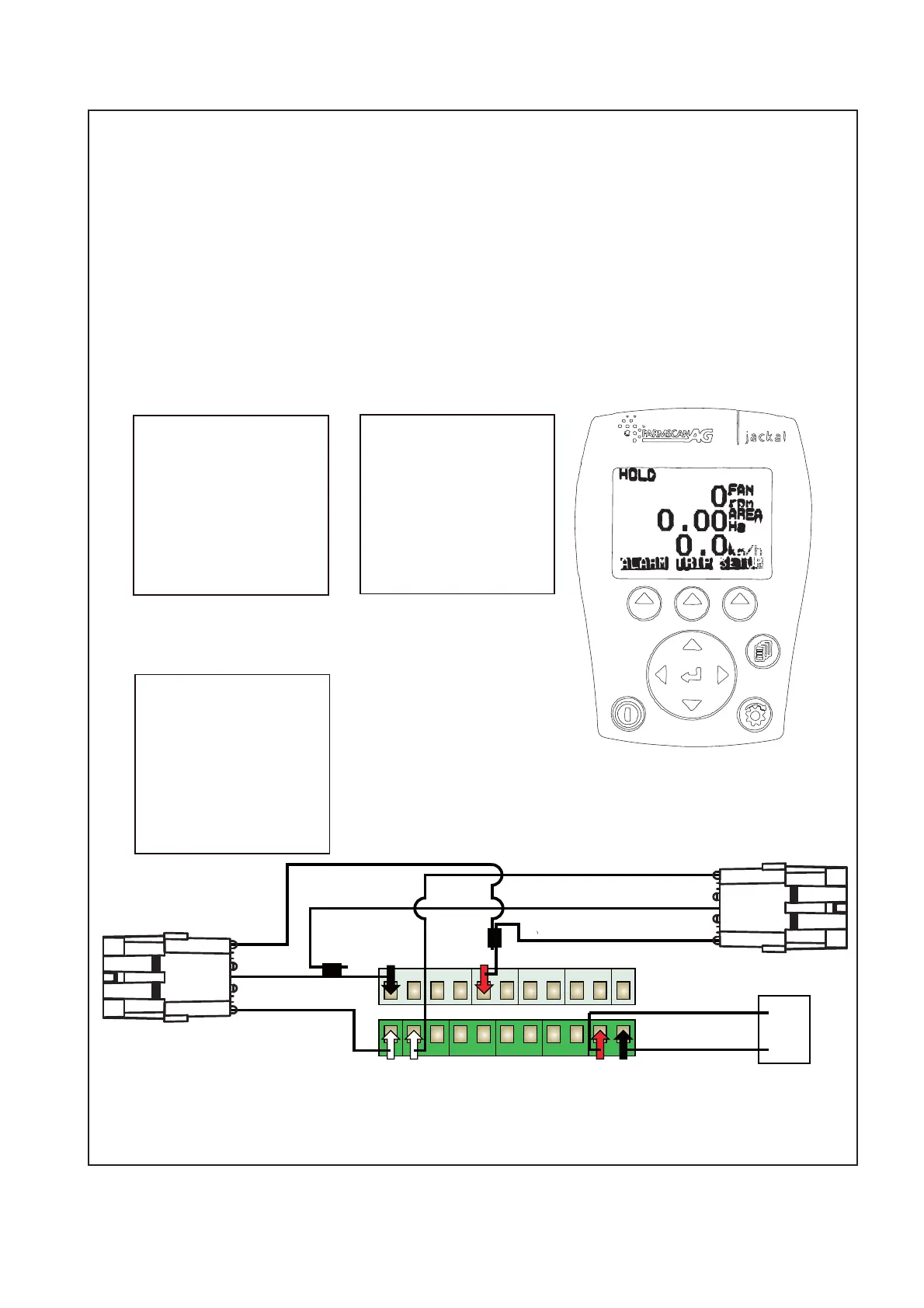

Farmscan Jackal v3.5 Settings Setup
The unit supplied with the machine has already been setup at the factory to the settings shown
below.
Refer to the manual supplied with your Farmscan Jackal kit for additional information and operation.
Farmscan Jackal v3.5 Factory Setup for Enviro DD30 Air
Refer to the Farmscan Jackal v3.5 manual.
Input 1 -Three wire proximity sensor for ‘Area/Speed Wheel’ measurement taken from shaft on drive
pedestal.
The white ‘signal’ lead is connected to input A1.
Input 2 - Three wire proximity sensor for fan ‘Tachometer’
measurement. The white ‘signal’ lead is connected to input A2.
Refer to the Farmscan manual if you want to make additional sensor connections.
It is advisable, as with all things electronic, to have a backup of your totals. We suggest you record
these on a daily basis in a notebook or diary.
Input 1 Edit
m/pulse
Auto Set:
Target:0.000m
Meas.pulses: 0
Manual Ratio:
2.750000
NEXT EDIT
Other Settings
Implement Width:
2.875 m
Extern.Run/Hold:
Disabled
Alarm Beep:2
NEXT EDIT
Input 2 Edit
pulse/rev
Auto Set:
Target:0.000rev
Meas.pulses: 0
Manual Ratio:
1.000000
NEXT EDIT
A2 Signal
B1 Gnd
B5 +12v
Connect to Fan RPM
sensor via extension cable.
Connect to Pedestal Shaft
sensor via extension cable.
Connect directly
to Tractor Battery
+12v
0v
B8 B11B1 B2 B3 B4 B5 B6 B7 B9 B10
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11
A1 Signal
B1 Gnd
B5 +12v
To Next Page
