77
Pt. No. 67394
Issue 1121

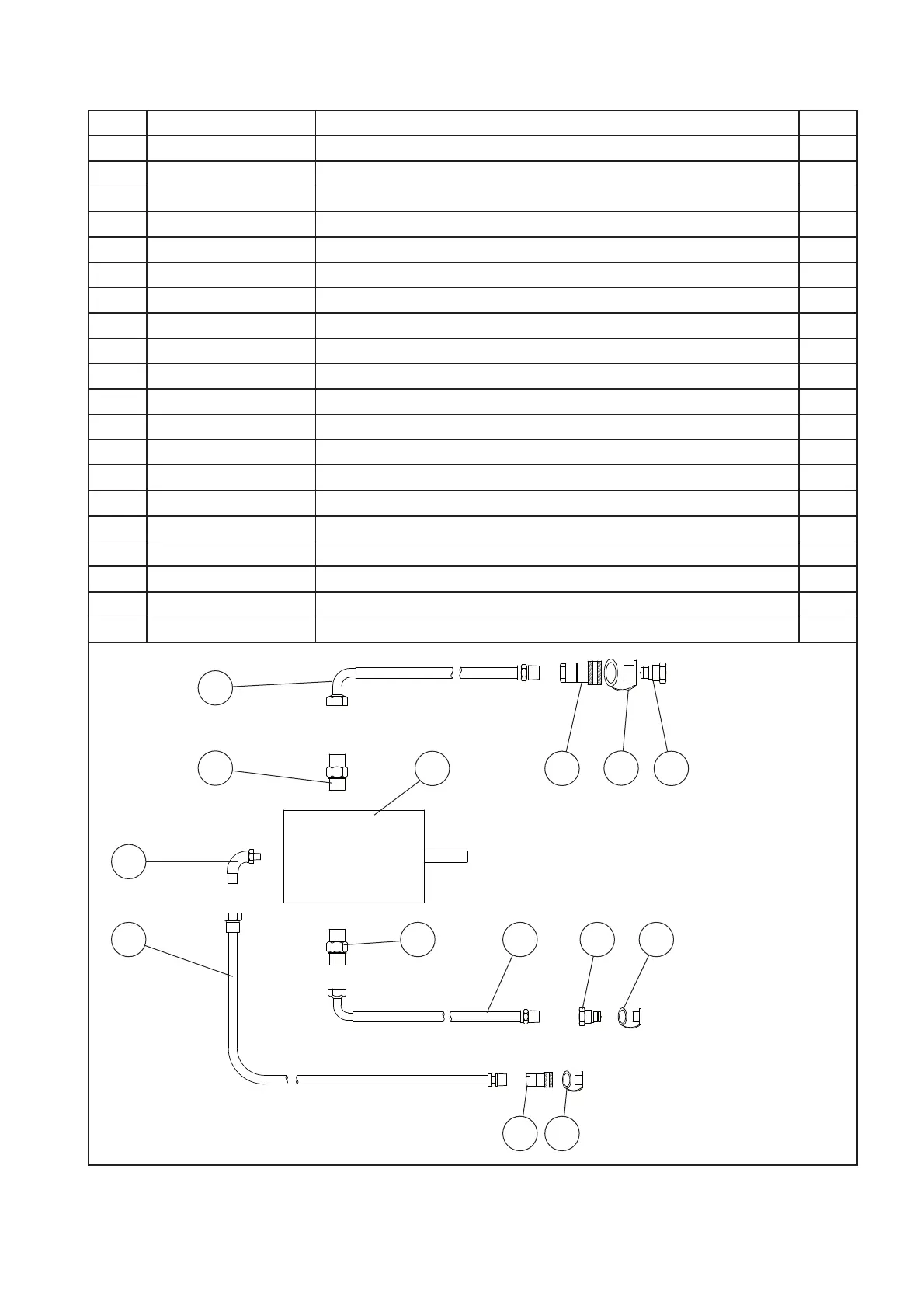

‘Enviro DD30’ Fan Hydraulics
ITEM PART No. DESCRIPTION QTY
- 44060k FAN MOTOR HOSE KIT contains items 1 to 13:-
1 44072 Hydraulic Hose (4.0m) 1
2 44073 Hydraulic Hose (3.38m) 1
3 44074 Hydraulic Hose (4.15m) 1
4 44075 7/8” UN’O x 1/2” BSPPM Nipple 1
5 48094 7/8” UN’O’x 3/4” BSP Nipple 1
6 44078 9/16”JICF x 1/4”BSPM 90° 1
7 44080 3/4” BSP Female Q.R. Coupling 1
8 44081 3/4” BSP Male Q.R. Coupling 1
9 43147 1/2” BSP Male Q.R Coupling 1
10 43617 1/2” Female Dust Cover 1
11 44128 3/4” Male Dust Cover 1
12 43148 1/2”BSP Female Q.R.Coupling 1
13 43618 1/2” Male Probe Dust Cover 1
14 44019 Galtech 11cc Hydraulic Motor (Spare parts listed below) 1
15 44144 Bearing Block Opspr2 (between motor and fan) 1
16 44529 Splined Coupling (Blowr Motor) 1
17 44149 Shaft Seal 18 X 30 X 7 - 2 Sp 1
18 44145 Hyd Motor Seal Kit For 44016K 1
19 44351 Flow/Chk Valve For Blowr Motor 1
HIGH PRESSURE
MOTOR FEED
(1/2” HOSE)
ZERO PRESSURE
CASE DRAIN
(3/8” HOSE)
5
2
7
11
8
4 1
10
9
LOW PRESSURE
MOTOR RETURN
(3/4” HOSE)
14
6
3
12 13
