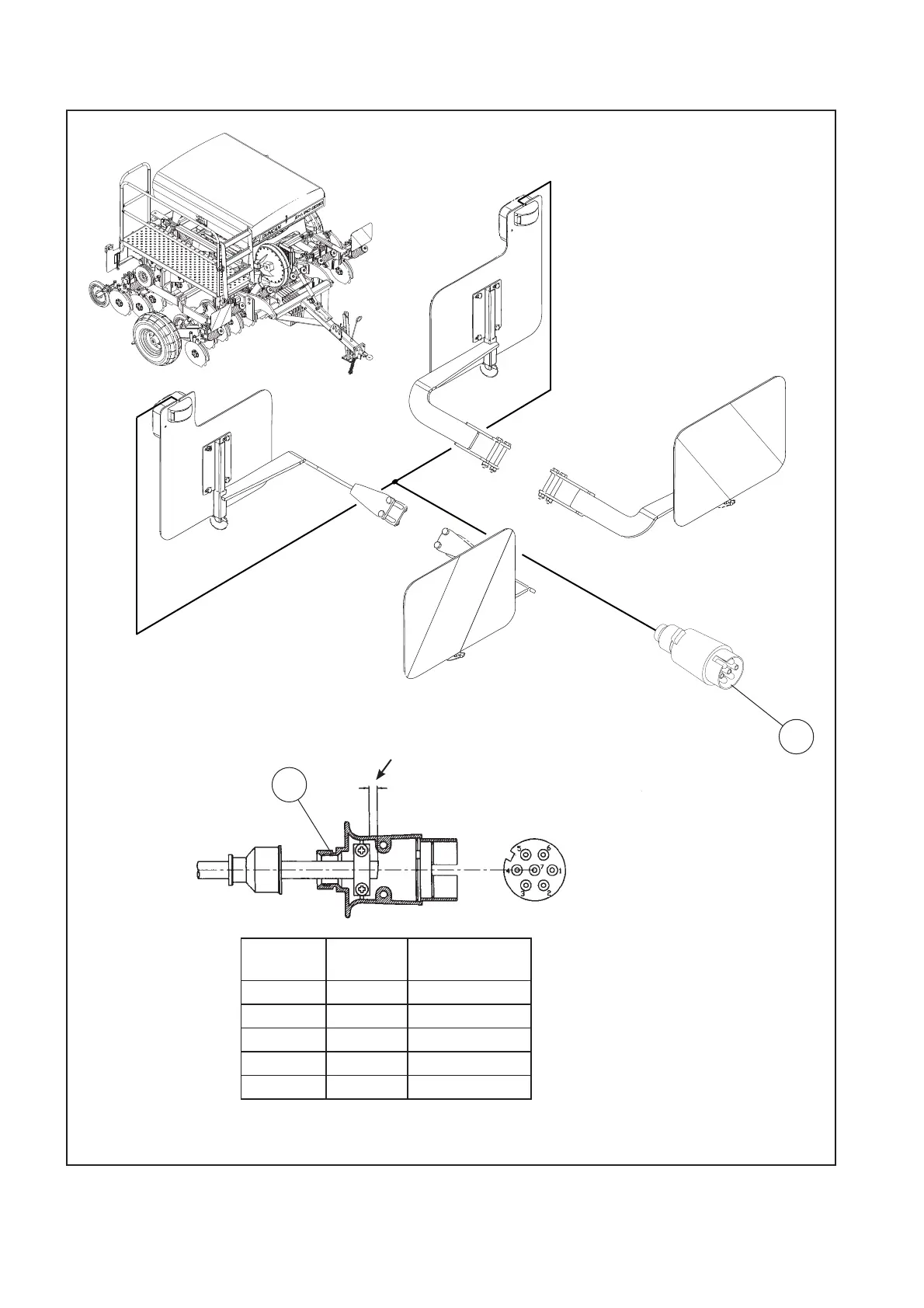

5 mm Ensure outer casing of
cable protrudes past cable
clamp by at least 5 mm
Terminals viewed from
direction of cable entry
Cable
Colour
Terminal
Number
Function
Yellow 1 Left Indicator
White 3 Earth
Green 4 Right Indicator
Red 6 Brake/Stop
Brown 7 Tail/Side Lights
16
13
Front Left
Front Right
Rear Left
Rear Right
‘Enviro DD30’ Lighting (Optional)
