Dune HD Duo 4K - Page 7

7
ENGLISH

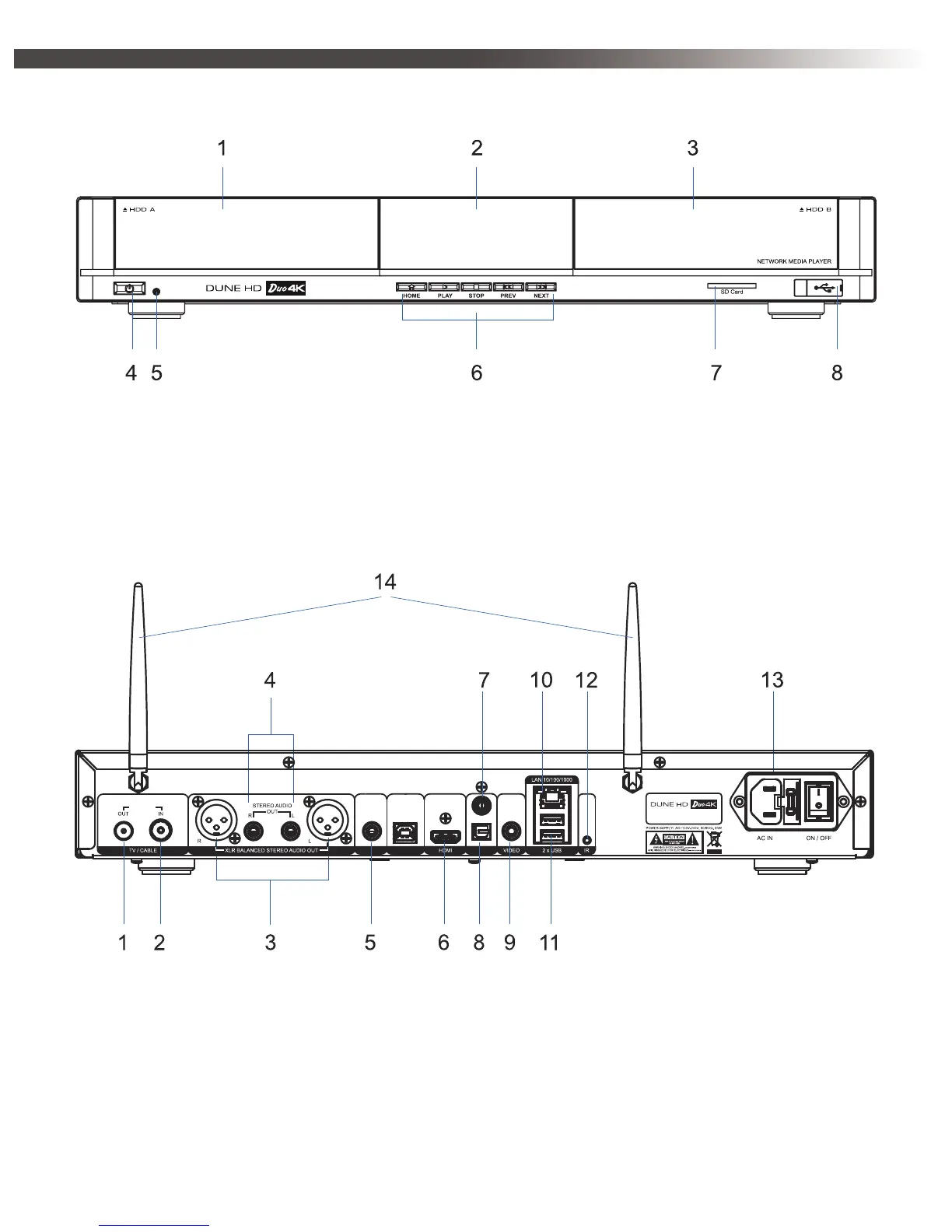

Front view
Rear view
1. Left HDD rack
2. Display
3. Right HDD rack
1. DVB-T/T2/C RF input (option)
2. DVB-T/T2/C RF loop output (option)
3. XLR balanced analog stereo output
4. Analog stereo output
5. Coaxial S/PDIF audio input
6. HDMI output
7. Coaxial S/PDIF audio output
8. Optical S/PDIF audio output
9. Composite video output
10. Ethernet 10/100/1000
11. 2 x USB 2.0 host
12. IR extender port
13. 100V-240V AC input
14. Wi-Fi antennas
4. On/off button
5. LED indicator
6. Control buttons
7. SD card slot
8. USB 2.0 host
Designed and made by DUNE HD
S/PDIFAUDIO IN
S/PDIF
IN
CVBS
ANTENNA
RESERVED
