Exterior

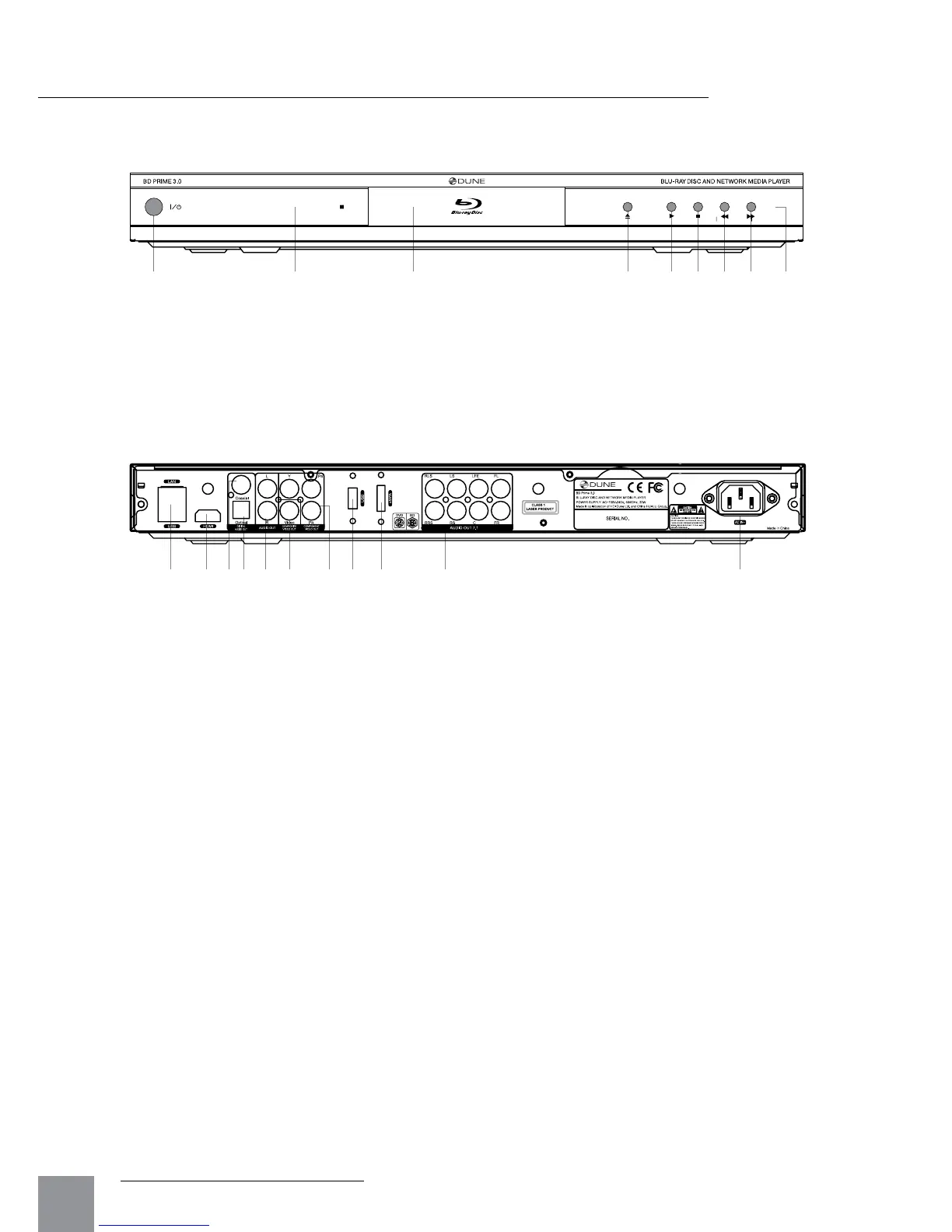

Front view
Rear view
1
1 2 3
2 3 5 6 7 98 10 114
1. Power switch
2. Display
3. Optical drive
4. EJECT
5. PLAY/PAUSE
6. STOP
7. PREV
8. NEXT
9. USB 2.0 host
1. LAN and USB 2.0 host
2. HDMI 1.3
3. Coaxial digital audio output
4. Optical digital audio output
5. Analog stereo (left/right) audio
output
6. Composite video output
7. Component (Y/Pb/Pr) video output
8. USB 2.0 host
9. eSATA host
10. Multichannel (7.1) analog audio output
11. AC power
