Dunkirk 3EW.65 - Typical Chimney Connection

17
MINIMUM HEIGHT:
MUST BE AT LEAST 3 FT (.9m)
HIGHER THAN HIGHEST PART OF
PASSAGE THROUGH ROOF. MUST BE
AT LEAST 2 FT HIGHER THAN ANY
NEIGHBORING OBJECT WITHIN 10 FT.
MUS
MUST HAVE AN UNOBSTRUCTED
TOP OPENING.

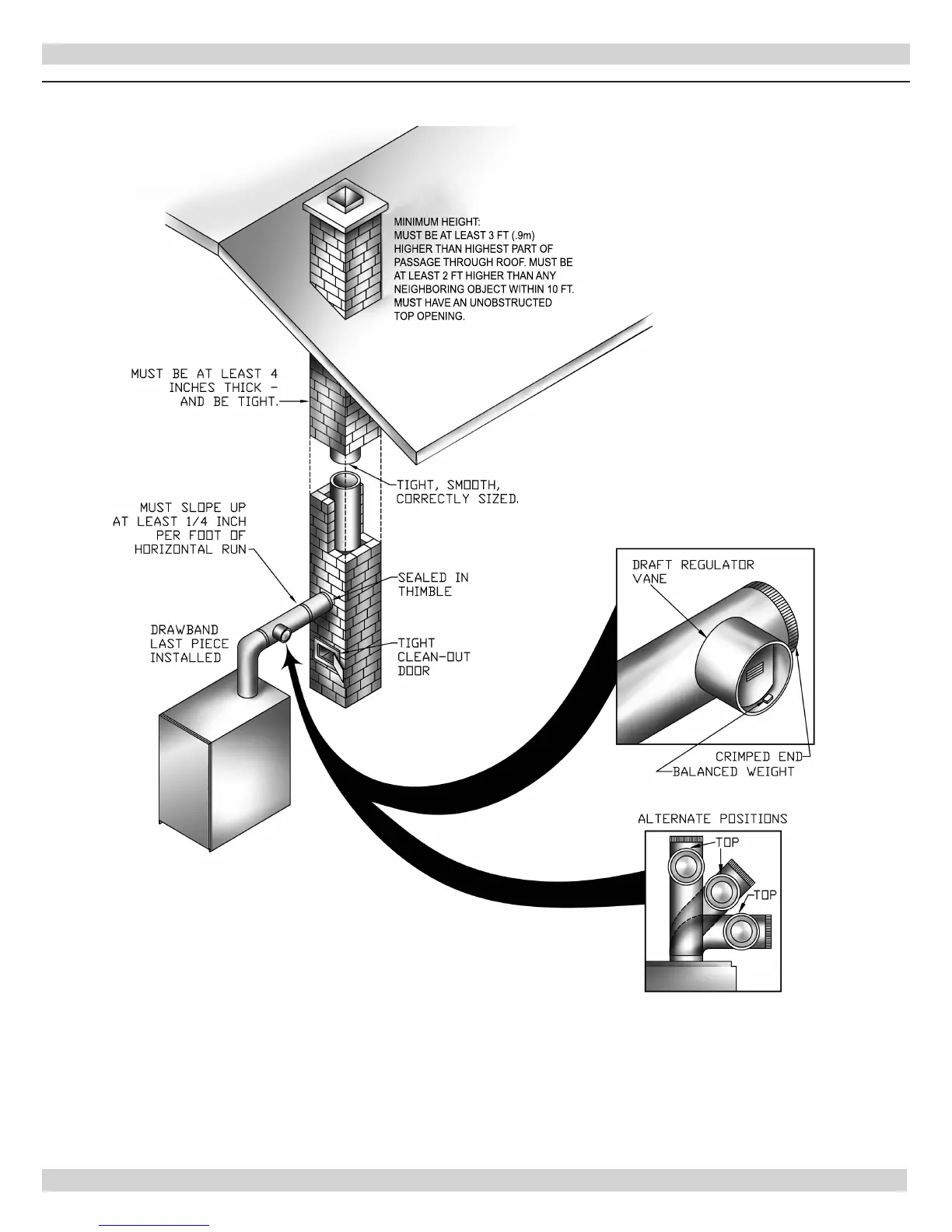

TYPICAL CHIMNEY CONNECTION
Figure 12 -
Typical Chimney Connection
