Utopia Gazebo 2x2m MKII Installation Manual
Page 5 of 9
70x70x1900.C
65x35x2000.C
Make sure notches on
components '70x70x1900.C'
are facing inside the Gazebo.
70x70x1900.C
Secure using 2x70mm
screws per end.

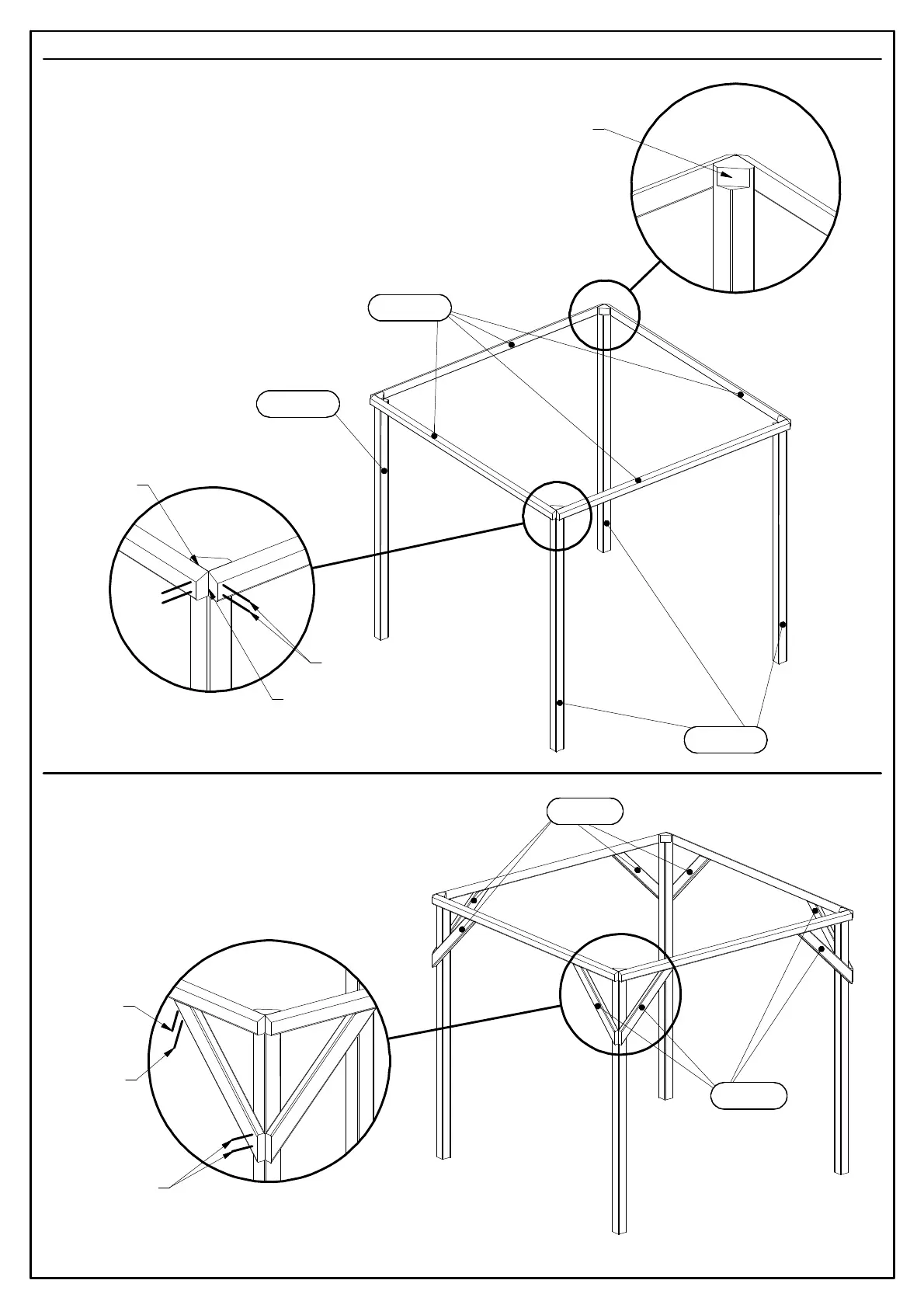

Start by assembling the main frame for the
Utopia Gazebo.
Please remember to pre-drill all holes
before fixing, to avoid the splitting of
timber.
At the notched end of '70x70x1900.C' fix
components '65x35x2000.C' in the positions
shown using 2x70mm screws per end. Ensure
that the notch is facing inwards in all 4 corners
before fixing.
We recommend to secure the gazebo legs to
the ground using metal brackets, metal
connectors etc. (not supplied).
Flush with
top of post
No overlap
Fix the supports.
Once the frame is assembled fix the supports
'70x35x650.C' in the positions shown using
3x70mm screws and 1x95mm screw per
component. You will need to fix
8x'70x35x650.C' in total.
70x35x650.C
70x35x650.C
70mm Screws
70mm Screw
95mm Screw
