Utopia Gazebo 2x2m MKII Installation Manual
Page 7 of 9

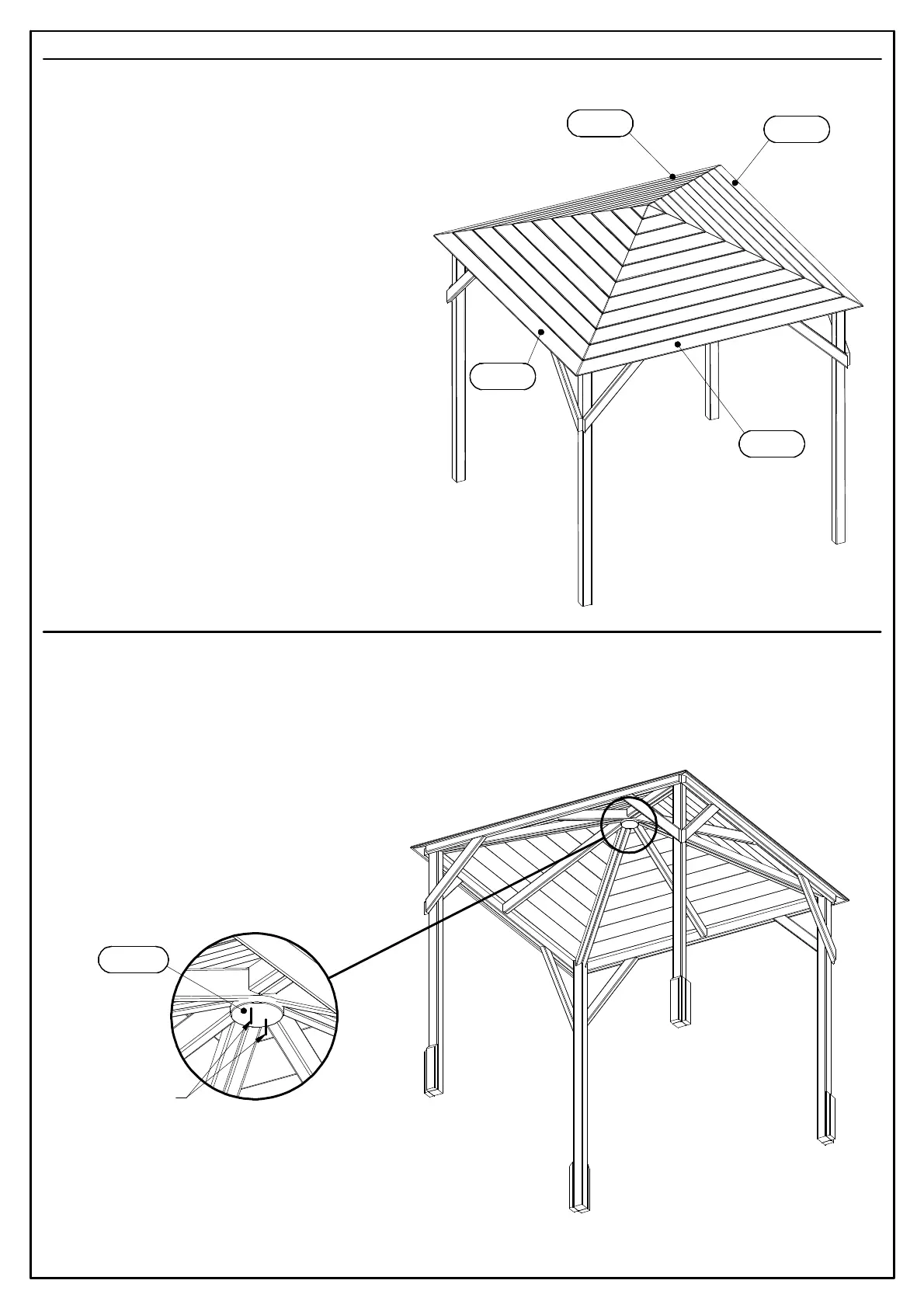

Fix the 'SHIPx2175.A' to the 'Roof Panel'.
Use 4x35mm screws per shiplap board to fix
into position. Equally space out the screws and
fix by screwing through the shiplap and into
'65x35x2000.C'.
Repeat this process on all 4 'Roof panels'
SHIPx2175
SHIPx2175
SHIPx2175
SHIPx2175
Fix the 'Bottom cap' to the underside of the roof, at
the peak.
In the position shown in the diagram, fix the 'Bottom
cap' into place using 2x70mm screws.
bottom cap
View from underneath, looking up
70mm Screws
To Next Page
