HANDLING OF THE LAZY PUMP CLIP
7. HANDLING OF THE LAZY PUMP CLIP
7.1. REMOVAL OF LAZY PUMP CLIP

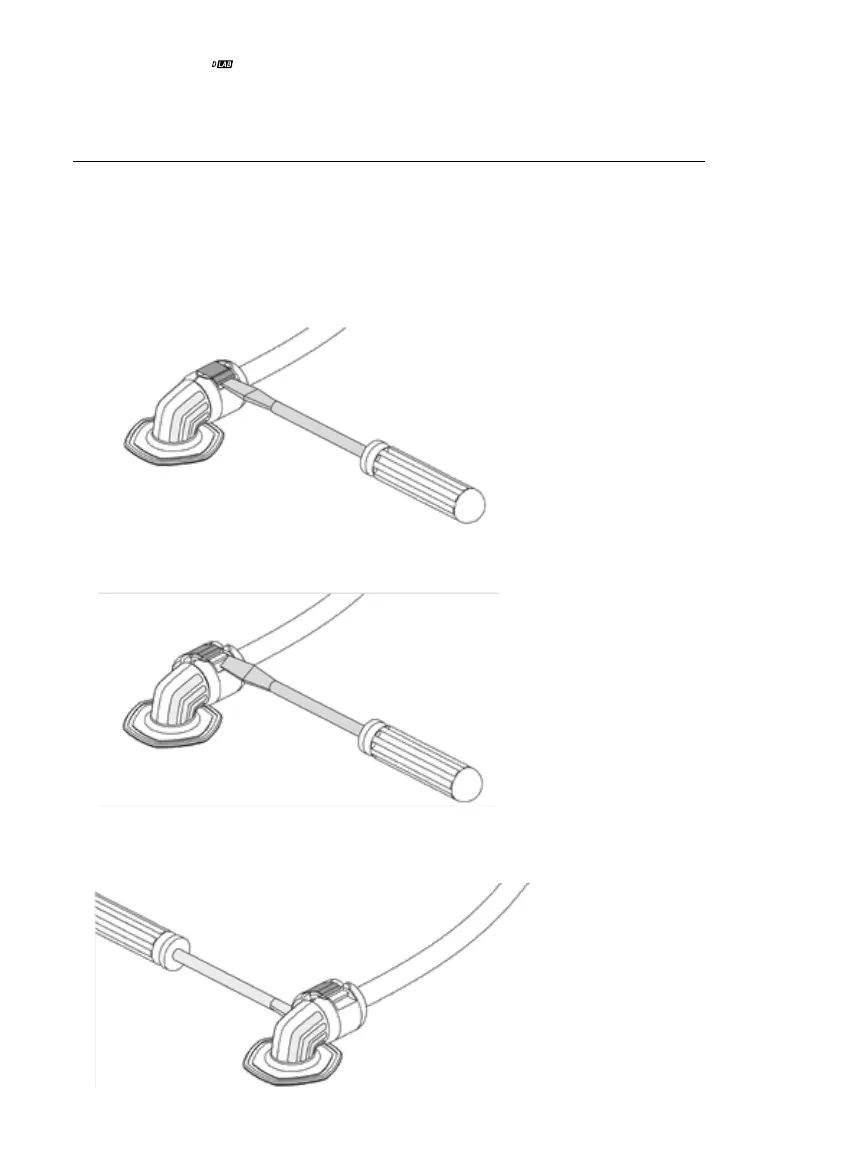

1. Use a small screwdriver to remove the Lazy Pump Clip. Slide the tip of the screwdriver carefully
under one of the snap arms of the Lazy Pump Clip.
2. Rotate the tip of the screwdriver 90 degrees. The snap arm will spring open.
3. Repeat steps 1 and 2 on the opposite side of the clip.
